How to tell what the negotiated link speed of the LAN ports are? (10T/100T/1000T)
Is there a way to tell what the negotiated link speed for a LAN port is? Although I would like to know a universal method for determining link speed, the current situation is confirming my Apple T...
Hi Darren,
Thank you for the reply. Would it be correct to say then that there is not a way to determine the link speed from the orbi?
Typically, I use the link lights on the port or a web interface on a managed switch to confirm link speed. But the orbi doesn’t have link lights or a connection page with the link speed that I can find.
It’s nice knowing the link speed to confirm that there is at least not some major problem. It is rare but an improper negotiation can happen. If I did find an improper negotiation then I would recertify the cable, replace NIC, swap ports on the switch, ... Unfortunately NICs and switch ports can fail and cables can be made and ran improperly. Even after a cable is ran someone can run a power line next to it in the future lowering a 1000T to a 100T connection. Knowing the link speed is valuable and assuming the link speed is proper is not enough for me.
As a work around I am thinking of temporarily placing a switch between the orbi and end device to see how the orbi port links to the intermediate switch and also how the end device links to the intermediate switch. Then after seeing the proper link speeds, remove the intermediate switch. This would test everything except how well the end device connects to the orbi. Again very rare, but sometimes switches and end devices don’t auto negotiate well and a manual setup on both ends is needed.
Can you please confirm if or if not it is possible to know the link speed from the orbi? I really like the new attached devices page with v2 and I really appreciate the work on it! However, it could even be better with the link speed added for wired connections.
Thanks again,
Matt
Thank you for the reply. Would it be correct to say then that there is not a way to determine the link speed from the orbi?
Typically, I use the link lights on the port or a web interface on a managed switch to confirm link speed. But the orbi doesn’t have link lights or a connection page with the link speed that I can find.
It’s nice knowing the link speed to confirm that there is at least not some major problem. It is rare but an improper negotiation can happen. If I did find an improper negotiation then I would recertify the cable, replace NIC, swap ports on the switch, ... Unfortunately NICs and switch ports can fail and cables can be made and ran improperly. Even after a cable is ran someone can run a power line next to it in the future lowering a 1000T to a 100T connection. Knowing the link speed is valuable and assuming the link speed is proper is not enough for me.
As a work around I am thinking of temporarily placing a switch between the orbi and end device to see how the orbi port links to the intermediate switch and also how the end device links to the intermediate switch. Then after seeing the proper link speeds, remove the intermediate switch. This would test everything except how well the end device connects to the orbi. Again very rare, but sometimes switches and end devices don’t auto negotiate well and a manual setup on both ends is needed.
Can you please confirm if or if not it is possible to know the link speed from the orbi? I really like the new attached devices page with v2 and I really appreciate the work on it! However, it could even be better with the link speed added for wired connections.
Thanks again,
Matt
Agree that this would be a nice RFE. Many cheap unmanaged Gigabit switches nowadays don't have separate LEDs for 10/100/1000 either. The Orbi is managed so this shouldn't be too hard to implement.
10 gig/NBase-T in the home is coming too, even though not supported on current Orbi hardware.

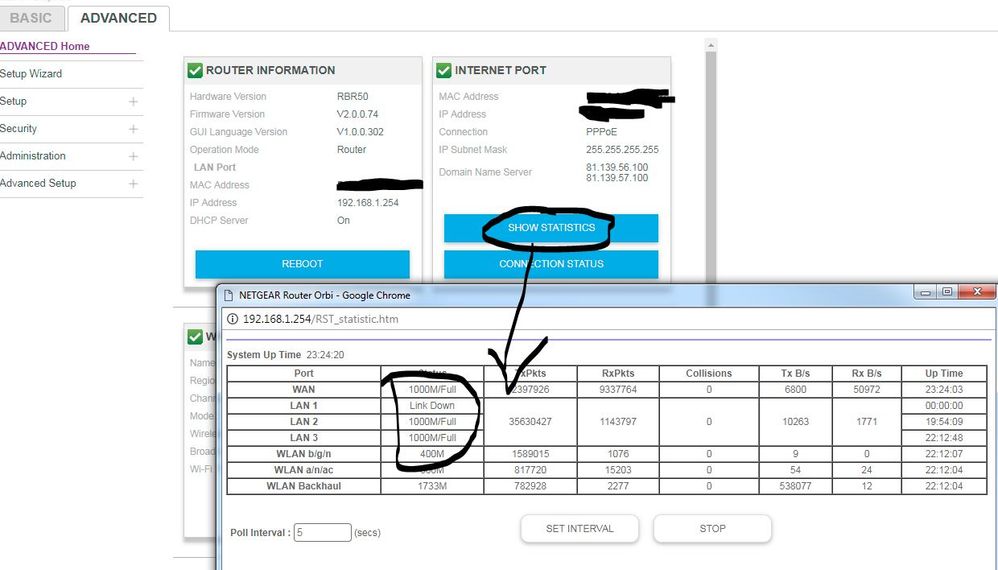

Link speeds are shown in the "Show Statistics" pop-up.... when I had a cable problem on one device I could see it's rate drop to 100M
Thanks , Marty , good to know !
The stats seem to be there only for the main router though, no stats for the satellite LAN ports as far as I could find.
And no link speeds for Wireless clients, either. At least we now have the wireless bands for each one.
yes, good point. That would be useful
- Thanks Marty! Even though it only shows the router ports it helps a lot! Thanks again
