Orbi + Router 2 networks

Hi In the first floor, I have a modem Router (192.168.6.1.) supplied from the ISP,  there are connected a pc and a Nas. At the second floor, there is my Orbit router (192.168.1.1) connected to mo...
Troubleshooting
FURRYe38's avatar
FURRYe38
Guru - Experienced User
Jul 21, 2018

Modem Combo Units:
Couple of options,
1. Configure the modem for transparent bridge mode. Then use the Orbi router in router mode.
2. If you can't bridge the modem, disable ALL wifi radios on the modem, configure the modems DMZ for the IP address the Orbi router gets from the modem. Then you can use the Orbi router in Router mode.
3. Or disable all wifi radios on the modem and connect the Orbi router to the modem, LAN to LAN and configure AP mode on the Orbi router.

  • Kolkagga's avatar
    Kolkagga
    Aspirant
    Jul 23, 2018

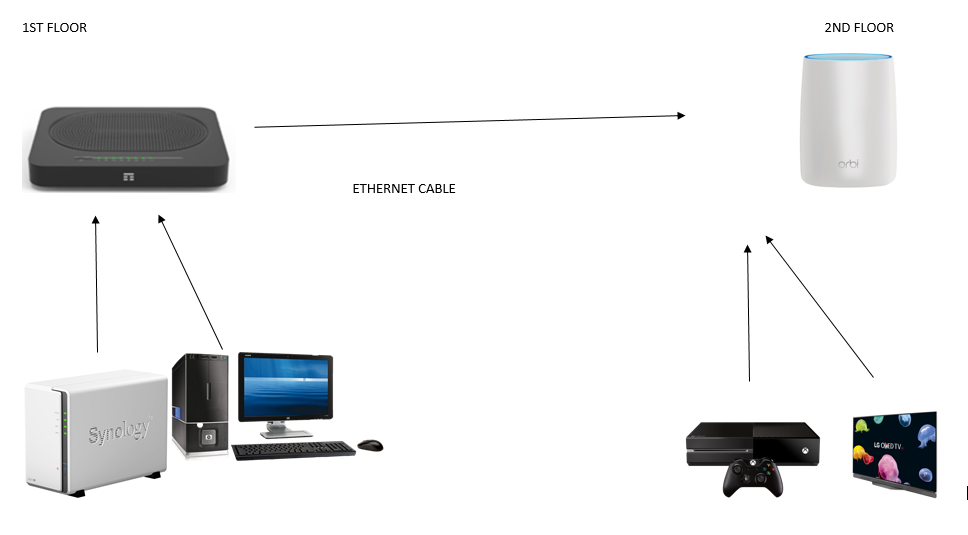

    thank you for all reply, my system is something like this



    i'll try with solution two
