Forum Discussion
RBR50 OpenVPN has the right IP but cannot access Network Resources
I am trying to set up OpenVPN to Orbi Router. Using OpenVPN GUI because the updated OpenVPN Connect doesn't support TAP, and it seems Orbi Router only has the TAP configuration for download. ...
Unfortunately, I am not versed in OpenVPN so I can only use the OpenVPN GUI (2.5x something) since the most updated OpenVPN Connect won't import the configuration file Orbi generates.

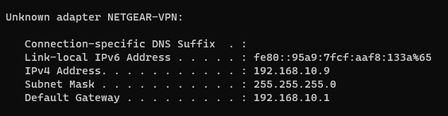

The LAN IP the network adaptor captured is correct. It has the correct IP range, not in conflict with another device, has the right subnet mask, and has the right gateway.
The icon in the system box is also green, so by all indications, it should be correct.
But when I try to access a computer on the network it won't connect. I also cannot access the admin page of Orbi as well.
I am not sure what is going on.
To use OpenVPN Connect, one would use a text editor to change the ovpn file from tap to tun by editing these lines:
client
dev tap ----- change to tun
proto udp
dev-node NETGEAR-VPN
remote xxx.mynetgear.com 12974 ----change to 12973
resolv-retry infinite
nobind
persist-key
persist-tun
ca ca.crt
cert client.crt
key client.key
cipher AES-128-CBC
comp-lzo
verb 0
sndbuf 393216
rcvbuf 393216
route-method exe
Are you connecting to the Orbi web interface using the URL or IP address? 192.168.10.1
Ok. Will Give that File a Try.
Thank you very much.
There are differences between tap and tun connections (see the Wikipedia article).
Since the connection is "working" in the sense that the device appears in the Orbi Attached Devices page as a VPN connection, my guess is that the regular Windows connection practices may not function over VPN.
