Forum Discussion

Kanis's avatar
Kanis
Aspirant
Feb 10, 2018

WAN speed of 100mb

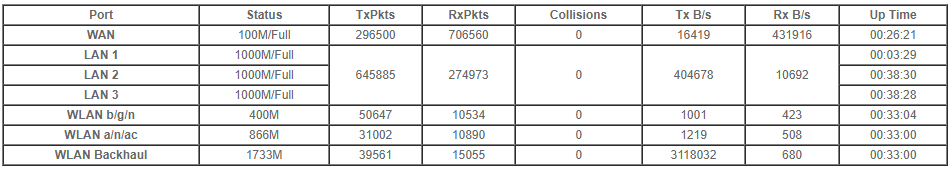

My WAN setting is limiting me to 100mb as shown.  When I connect directly to my modem via ethernet my PC gets 200MB.  I've tried swapping out cables, resetting the Orbi and sattelite, even plugging in a laptop gives the same 100mb restriction when connecting to Orbi. I've swapped out cables from modem to orbi multiple times, using those that give 200 when connected to modem directly.



Any ideas on how to resolve this? Speedtest.net is how I've been testing.



Thanks

Troubleshooting

2 Replies

Sort By
  • Kanis's avatar
    Kanis
    Aspirant
    Feb 10, 2018

    plugging in another router using the same cable, yields full download speed of 180mb.  So it's not my cable, or PC, it's the Orbi that's limiting speed to 100mb.

    Running the latest firmware on Orbi, and having it act as router

    • st_shaw's avatar
      st_shaw
      Master
      Feb 10, 2018

      When your speed is limited to 100 Mb it is almost always a problem with the cable or a problem with the speed negotiation between the Ethernet ports involved.  If not, then it would be a bad Ethernet port.



      Try plugging your PC into each of the three LAN ports on the Orbi router, and measure the speed on each one.

      Also, check your Ethernet properties on the PC to ensure your PC's network interface card is connecting to Orbi at 1000 Mbps. If not, then change the network interface properties from auto-negotiate to manual 1000 Mbps on your PC.



      Also, try another PC or laptop if you can.
