GS724Tv6 and Use of STP

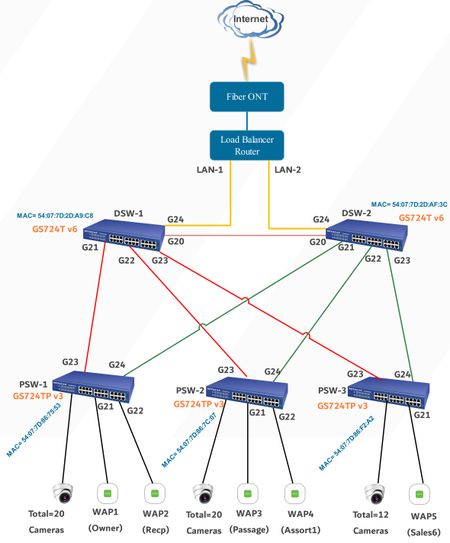

Hello, In a network scenario, we have total 5 Netgear switches. We have 2 GS724Tv6 switches and 3 GS724TPv3 switches. Check the topology below: When we implemented this design, I found that on...
Taking control of STP (resp the preferred RSTP) is the key here, and not leaving the switches on the default priority.
--
DSW-1: 4096
DSW-2: 8192
--
PSW-1: 40860
PSW-2: 44965
PSW-3: 49052
--
Does that load balancer participate in STP/RSTP? If yes, enable and configure it accordingly:
--
LB: 4096
--
DSW-1: 8192
DSW-2: 12288
--
PSW-1: 40860
PSW-2: 44965
PSW-3: 49052
--
A more sophisticated approach would be to set the switches in the same "level" to the same priority, like
--
LB: 4096
--
DSW-1: 8192
DSW-2: 8192
--
PSW-1: 12228
PSW-2: 12228
PSW-3: 12228
--
