PVID vs VLAN member vs VLAN tag

Hi All! First day on holiday but still thinking about some hypotesis I talked with a collegue of mine on last day of work. Please see here: I know that "standard" config is (ie): P...

vescovo

Aspirant

Aug 11, 2024

Hi.

Thanks for your reply but you wrote things I already know.

I try to simplify my question: what following config is useful for (if it could be...)?

PVID:1 Member:2 Tag:none

Bye

schumaku

Guru - Experienced User

Aug 11, 2024

vescovo wrote:

PVID:1 Member:2 Tag:none

Like g5 example I've alredy explained, g2 config does not make any sense, too.

Untagged frames will be assigned to the VLAN 1 (as per the PVID config), but since it's only an untgged member of the VLAN 12, no communication can ever be estblished. Yet another black hole.

vescovo
Aspirant
Aug 11, 2024
Ok.

No sense/weird/useless was our verdict too.

But... (only because I'm on holiday, on normal day I go on without posting stuff :))
PVID:1 Member:1 Tag:2
This is a werid configuration too and OS return an error on saving it. Why it doesn't act the same on all weird/nonsense/incongruent configs?
Why Member+Tag are "bounded" and PVID+Member are not?

Thanks
V.
- schumaku
  Guru - Experienced User
  Aug 11, 2024
  There is a lot of legacy and history (~ 25 years or more) involved in this Web UI.

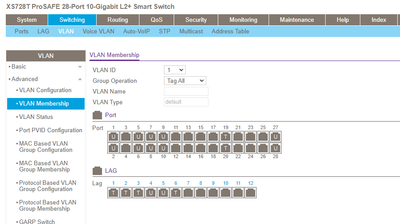

  The overview (this is what it is) you showed as an example is very confusing, and to some extent useless for config purposes. Much better suited is this VLAN -> Advanced -> VLAN Membership ... select the VLAN ID from the pull-down:

  Netger has done the spread between the "classic" chip-based switch config (which is extremely powerful, ways beyond of the documented usage) and has introduced the terms Access and Trunk ports on the Manged Switches M4300/4250/4250/... Web UI and CLI.

  Happy Sunday, happy holidays!

  Off to work, TV production network setup from scratch 🙂

  Regards,

  -Kurt.
