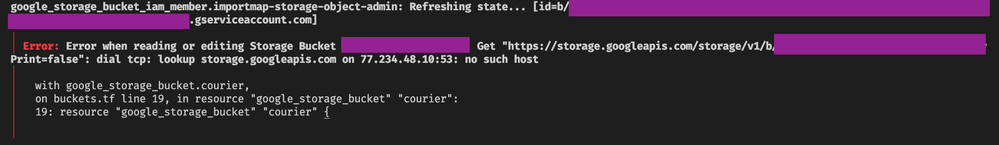

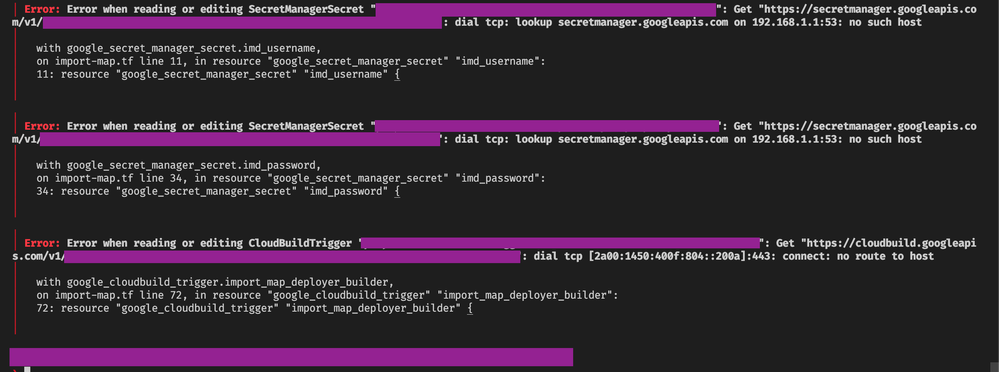

I have been working from home the past year and when my work started using terraform I started seeing strange issues with how my internet behaved. There are supporting pictuers I talk about, in the bottom of this post I could not put down the model becaues it did not exist. But it is a MR60 Nighthawk So, I have done some tests. First of all using my mobile net to verify that it works on wifi and not a computer problem, and that worked completly fine. Never seen any issues there.Then I plugged into the router with a cable, the same issues was there.Then I plugged directly into my ISP internet, bypassing the router, and the problems dissapeared.So I just wonder where to go about this? Is the router failing, why and what can I do? Where can I file for errors and improvments for the software?

vongohren wrote: plemansthanks for taking the time to answer me. But to answer your question, I have NO idea. My cable dissapears into the wall in the main shared hallway of my apartment building and I dont know where it goes.I can ask the ISP of course, but what might I ask to give them more insight and me?---Basically what your connection is and help with resolving a potential double nat. Do you think double NAT is the problem here?---could be. Since when I connect to the MR60 i get the troubles, but when I connect to the cable from the ISP itself, I dont have those troubles?----easy test is if you have a simple unmanaged switch sitting around. Plug it into the wall and connect a couple devices to it. If all of them work, something is managing dhcp and causing the double nat. Are there possible adjustments I can to on the MR60 or something the ISP have to do on their side?---Yes, you can put it in access point mode. Or get the isp or whatever is managing the routing to add your routers IP address to the DMZ. Why is it only these terraform requests and nothing else?----some devices dont' have issues with double nats. Some programs, IoT devices, streaming services do. Lots of questions from me but no answers :D

What modem/gateway is the mr60 connected to?

plemans I have a strange IPS that just delivers a CAT cable into my apartment. So I have no access or controll to that modem.So all I can say is that it is directly connected to what the IPS provides with me. But that being said, when I connect to that cable directly, I dont experience any trouble.If I connect to cable directly to the MR60, I have troubles. So something goes on inside the MR60

Whats on the other end of that cable? An ONT? a Managed switch? https://kb.netgear.com/30186/What-is-Double-NAT

plemansthanks for taking the time to answer me.But to answer your question, I have NO idea. My cable dissapears into the wall in the main shared hallway of my apartment building and I dont know where it goes.I can ask the ISP of course, but what might I ask to give them more insight and me?Do you think double NAT is the problem here? Since when I connect to the MR60 i get the troubles, but when I connect to the cable from the ISP itself, I dont have those troubles? Are there possible adjustments I can to on the MR60 or something the ISP have to do on their side?Why is it only these terraform requests and nothing else? Lots of questions from me but no answers :D

My Nighthawk MR60 drops using terraform aka multiple connections at the same time

15 Replies

plemans
Guru - Experienced User
Aug 22, 2021
What modem/gateway is the mr60 connected to?
- vongohren
  Aspirant
  Aug 23, 2021
  plemans I have a strange IPS that just delivers a CAT cable into my apartment. So I have no access or controll to that modem.
  So all I can say is that it is directly connected to what the IPS provides with me.

  But that being said, when I connect to that cable directly, I dont experience any trouble.
  If I connect to cable directly to the MR60, I have troubles. So something goes on inside the MR60
  - plemans
    Guru - Experienced User
    Aug 23, 2021
    Whats on the other end of that cable? An ONT? a Managed switch?

    https://kb.netgear.com/30186/What-is-Double-NAT
hogguy
Aspirant
Jan 06, 2022
I just started having this problem about a month a go, I updated the firmware to both the router and satelite and it did no help. I determined that it is a heat problem within the router. If I keep the router flat the problem appears, if I raise it to improve air flow the problem it is gone. I suspect the heat sync compound on heat sync attached to the main CPU has deteriorated. I'm going to clean and replace it (compound ~ $8 on Amazon) and built 4 small feet for the router to raise it about 2 inches. I also suspect that Netgear is aware of this and does not tell there out of warranty customers. My router is just over 3 years old.
- FURRYe38
  Guru - Experienced User
  Jan 06, 2022
  To better help with heat issues, one can install a USB Laptop fan cooler under the MR for additional cooling. I've been using one of these for years under any router I have online.

  Works well and help save HW from heat damage over time.

  hogguy wrote:

  I just started having this problem about a month a go, I updated the firmware to both the router and satelite and it did no help. I determined that it is a heat problem within the router. If I keep the router flat the problem appears, if I raise it to improve air flow the problem it is gone. I suspect the heat sync compound on heat sync attached to the main CPU has deteriorated. I'm going to clean and replace it (compound ~ $8 on Amazon) and built 4 small feet for the router to raise it about 2 inches. I also suspect that Netgear is aware of this and does not tell there out of warranty customers. My router is just over 3 years old.
