Awful Daisy Chain Configuration
I have the RBK763 kit, with the router on my main floor, satellite #1 on 2nd floor, and satellite #2 on the 3rd floor.
I want this to daisy chain from router -> satelite #1 -> satelite #2. We used to be able to manually set this but now it seems it's auto? Is there some way to force this?
Unfortunately, when I reset the satelite #2, it will connect to satelite #1 and show "GOOD" Backhaul, but after awhile, it always connects directly to router with a "POOR" Backhaul. When this happens, all devices connected directly to Satellite #2 experience awful ping jitter to the point that VoIP/video calls are destroyed. When Satelite #2 connects to Satelite #1, everything is perfect. Why is it choosing a subpar connection???
Before anyone asks, I can't just remove Satelite #2 because devices on the 3rd floor that connect to Satelite #1 have subpar performance.
Please help.
8 Replies
What FW is loaded on the system?
What is the size of your home? Sq Ft?
What is the distance between the router 📡 and satellite(s)🛰️? 30 feet or more is recommended in between RBR 📡 and RBS 🛰️ to begin with depending upon building materials when wired or wirelessly connected.
https://kb.netgear.com/31029/Where-should-I-place-my-Orbi-satellite 🛰Also try turning down the power output of the RBRs wifi radios from 100% to 50% and see if this changes anything. Under Advanced Tab/Advanced Settings/Wireless Settings
Yes Daisy Chain is all automatic. Sequence would be to power OFF both RBS. Power ON the closer RBS to the RBR, then after that RBS is fully sync'd, power on the farther RBS. Should connect to the closer RBS. Try changing the power settings though...
Thanks for the reply.
FW: V7.2.6.31_5.0.24
Sq ft: ~1800 sqft over 3 floors. It's a townhouse with a lot of Wifi from neighbors.
It's about 30ft between them, and the house is regular drywall. Typical US construction from ~30 years ago.
I read that the transmit settings does not impact the backhaul. There are a few threads that have people proving this... did something change?
techman7 wrote:
I read that the transmit settings does not impact the backhaul. There are a few threads that have people proving this... did something change?
This has been my experience using a WiFi Heat Map app. (They are a hoot, and free for Android tablets.)
Changing Transmit Power from 100% to 25% did not change the 5G backhaul signal level.
You might experiment with moving the satellites around a bit. Sometimes even changing from one side of a room to another can make a difference.
How the Orbi system decides where each satellite connects, and at which frequency must be considered some sort of Trade Secret by Netgear. I have never found any documentation about the process.
The only way to guarantee how a satellite connects is to use an Ethernet cable. In a 3-floor building that is 30 years old, this could be impractical to implement.
In what part of the world is this system located? Like all mesh WiFi systems, Orbi adheres strictly to the regulations regarding weather and military radar. I could be that the 5G backhaul signal is impacted by radar and changes to 2.4G.

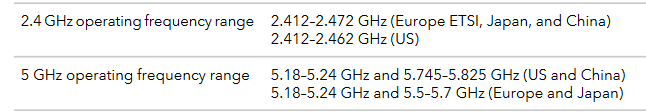

Most Orbi system User Manuals have a Technical Information section at the end detailing which WiFi frequencies are used for the user facing and backhaul connections. It is somewhat of a puzzle that the 760 product does not have this information. The earlier 750 product, for example, states:
One might think that changing the backhaul connection would be recorded in the optional Debug Log. (A feature that can be enabled on the "debug" web page (http://orbilogin.net/debug.htm ). Alas, I also have never found any documentation explaining how to use the debug information. Two of the files are obvious (wan.pcap and lan.pcap) The rest????
