Forum Discussion
Solved
Ethernet backhaul cause satellite to disappear and everything connected to router
I have RBK752 in AP mode connected to my existing network and everything is fine. The issue starts when I connected the satellite for ethernet backhaul. What happened was I cannot see the satelli...
Yes, any RBS ethernet connected, switch or not, needs to be connected behind the RBR. Router or AP mode.
I presumed the same at first but the thing is right now my RBS is connected to RBR through that very switch and it works fine.
The only thing I changed was instead of the switch connected to my main router, I moved it to connect with RBR instead, so its no longer connected parallel but instead direct.
Yes, any RBS ethernet connected, switch or not, needs to be connected behind the RBR. Router or AP mode.
Apparently so. I just got confused with the 3rd example in here though.
I'm trying this configuration but it does not work. Would love to get this to work since I can play with placement of the RBR more as only 1 cable involved.
So the 3rd picture with switch is not working in that configuration? I thought you said it was working in your previous post?
This is the configuration following that 3rd picture which doesn't work.

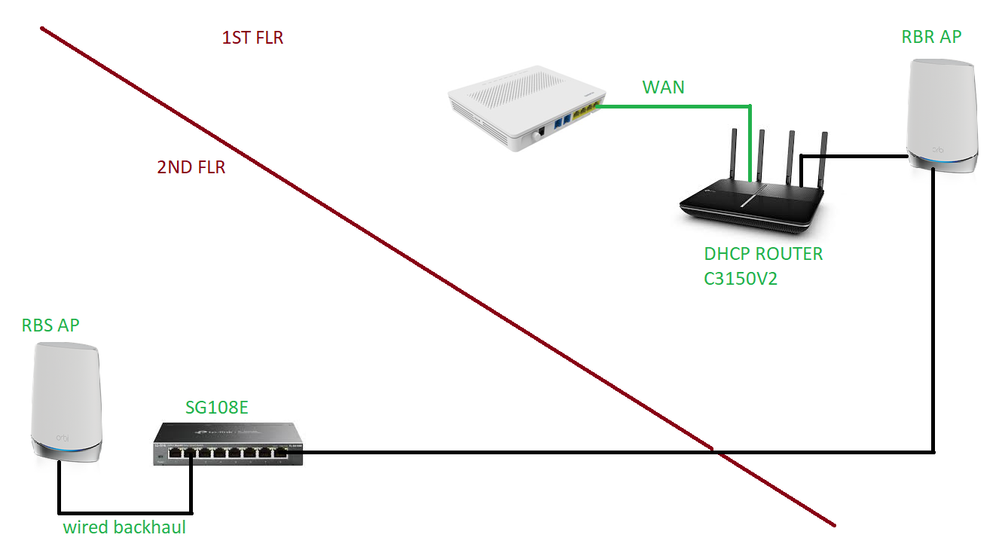

RBR < C3150v2 > SG108E > RBS
I have ethernet backhaul working by unplugging the SG108E from C150v2 and connect it direct to RBR.

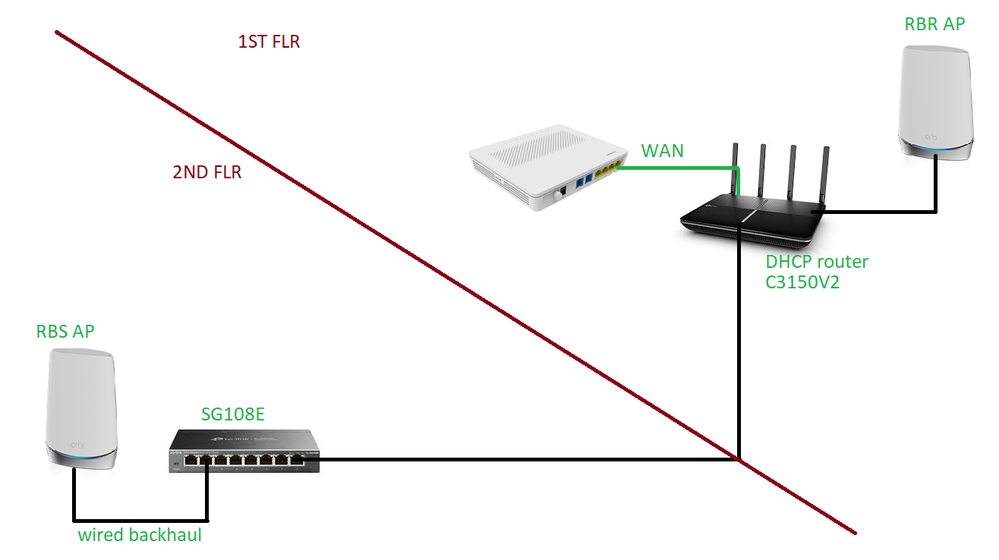

C3150v2 > RBR > SG108E > RBS
