I'm also trying this method but I cannot get any communication from the router and putty
Hi,
did you manage to sort out your rbr750 with a TTL to usb connection?
im also trying this method but I cannot get any communication from the router and putty, I suspect this is due to the fact I don’t know which pin is which.
Any help is appreciated.

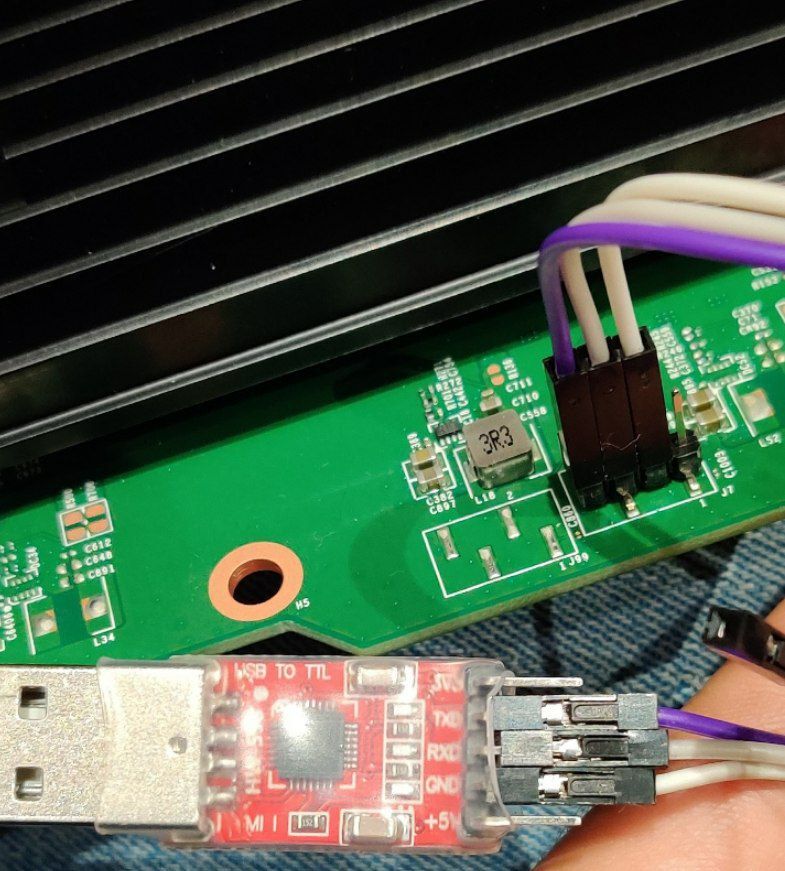

Thanks for the the information, I eventually found the right combo. I am adding a picture below for reference.
5 Replies
W45E3Mdid you manage to sort out your rbr750 with a TTL to usb connection?
im also trying this method but I cannot get any communication from the router and putty, I suspect this is due to the fact I don’t know which pin is which.
This document shows the pins on an older Orbi. Maybe the 750 pins are in the same orientation?
The RS232 serial pins are not obvious on the internal photos of the 750 product on the FCC web site (unless that is them at the top of image #4)
https://fccid.io/PY319400470/Internal-Photos/Internal-photos-4603355
