Forum Discussion
Is there any benefit to have a wired backhaul for an Orbi Mesh system?
Hello everyone, Apologize for the lengthy post in advance, but wanted to give some background first. Product: 1 wireless RBR750 router, 2 satellites RBS750 Home Size: 2 story, 4100 sq ft Cu...
Thanks Furry. The only thing that's outstanding for me is that with the introduction of MoCA in my network setup, I had to add 2 splitters which increased my cable modem upstream power levels - they're right now sitting at around 50-51 dbmV. Before I installed MoCA, upstream power was ranging around 48-49 dbmV.
With my MocA setup, I haven't yet experienced internet drops or connectivity issues despite the higher upstream levels. Even so, I feel the power levels are really at the top acceptable threshold and any random blip may cause a disconnection. Since I need to use splitters, are there splitters that are lower loss than others that still are MocA compatible frequency-wise?

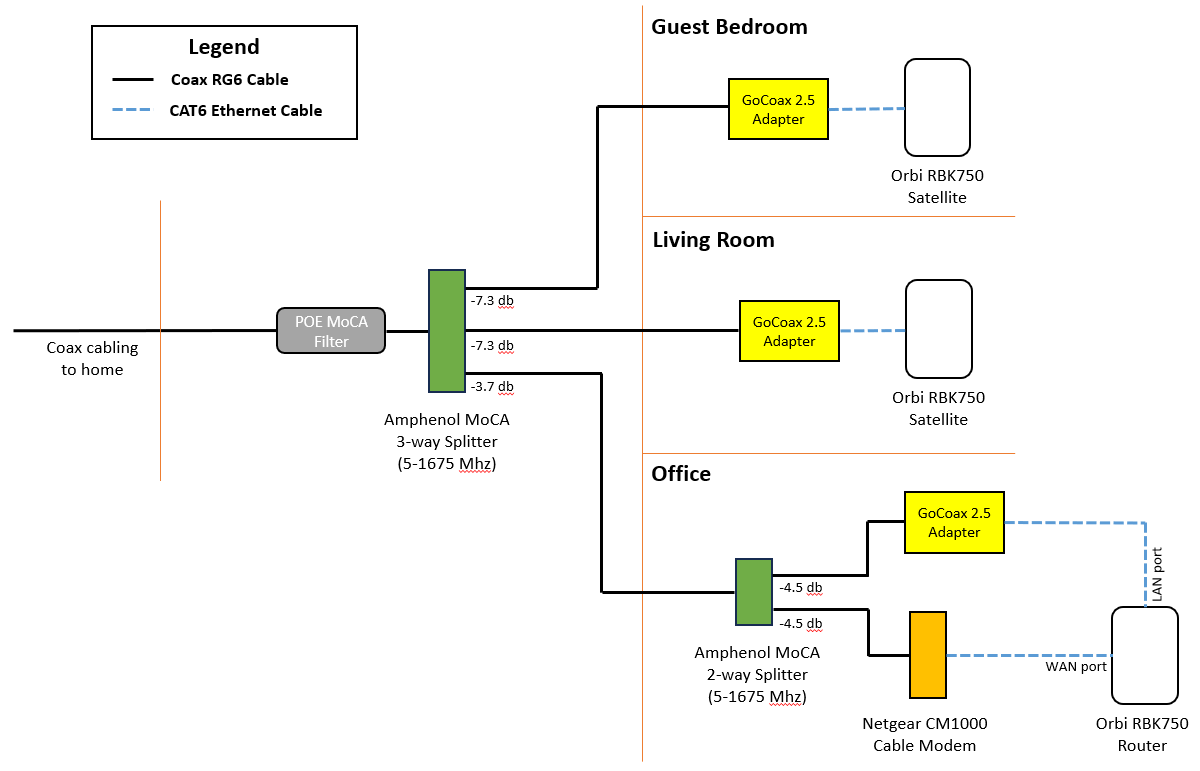

I've attached a schematic so you can visualize my setup and splitter output terminal db loss.
unioncorps On the Mac I find WiFiExplorer Lite (free) gives a lot of nice tabular data, as well as a graph below the table. The tabbed data lets you really analyze power level for example - it's 83% vs. 69% over there, which could be hard to see in a graph. It has a graph too. I like the graph on iAnalyzeWiFi (free) a little better as it's bigger - you need something broad-brushed as you are walking around the house. You can fine tune later. Both allow segregating the output to only 2.4 or 5.0 networks which is useful. So if I had to pick one it would probably be WiFiExplorer, although since they are free no issue having both and seeing what you like!
