RBK353 AP mode no internet
RBR350, in AP mode + 2 satellites RBS350 Firmware version: V4.3.4.7_1.9.53 Hardware version RBR350 Hardware Type ORBI This is operating in an environment with 40+ devices and several NETGEAR ...
Thanks again CrimpOn and FURRYe38 for nudging me in the right direction. I have done multiple factory resets and an enormous number of experiments with different settings.
As it turns out, I have to use AP mode because it is the only way to get DHCP settings served to clients that are wired to one of the satellites. I have not experienced any problems with AP mode, per se, but thanks for the warnings.
The real problem is that the RBR350 does not accept a comma separated list of gateway IP addresses from a separate DHCP server. I think this is a bug in RBR350 because, strangely, other Netgear products that I use (e.g. web managed switches GS108Ev3) do correctly pick the first gateway address from the list of those supplied by my DHCP server(s).
A detail: I am operating a HA service, and all storage devices (NAS) and services (e.g. DHCP server) have live copies which reside on more than physical machine with automatic failover capability dropping to an alternative when the first selected becomes unavailable. When I first experimented with DHCP server settings to see if changing from a list of gateways to a single gateway address made any difference, I missed one of the several locations that I should have changed. Unbeknown to me, a list of gateways was being served by DHCP to the RBR350 by the one instance that I had failed to adjust. My mistake, and I paid sorely in time wasted trying to track down what was actually wrong.
Thanks CrimpOn
I agree, I am concerned about the gateway address 0.0.0.0. One thought I had was that the RBK350's are designed to be hooked up to an ISP modem with only one ethernet port that accepts or routes packets for 0.0.0.0 as the only way they can go. I hope this is not the case.
I have not worked out how to see inside the satellites to examine their IP configuration. But from my DHCP servers perspective, and other information, I know they have picked up the correct IP address from the DHCP server. The RBR is correct apart from the gateway address 0.0.0.0.
The "option routers" line is from dhcp.conf in my DHCP server. I changed it to simply
option routers 192.168.0.1;
and checked that other devices worked without the alternate gateway.
I then rebooted the RBR. Still no internet.
Bockeman wrote:
One thought I had was that the RBK350's are designed to be hooked up to an ISP modem with only one ethernet port that accepts or routes packets for 0.0.0.0 as the only way they can go. I hope this is not the case.
Correct. This is not the case. All Netgear Orbi WiFi routers are designed for the WAN (yellow) port to be connected to some device that eventually leads to the internet. This can be:
- An ISP modem or Optical Fiber Termination (ONT) that assigns the router a public IP address through the DHCP or PPoE process
- An ISP combination modem/ONT/router/WiFi device that assigns the router a private IP address through the DHCP process and acts as the gateway from the ISP local LAN to the internet. A Virgin Media Hub5 would be one such device.
- Any network connection that uses the DHCP process to provide the required private IP address, subnet mask, gateway address, and DNS server IP. This appears to be your setup. The Hub5 is the gateway, but the Hub5 DHCP process is not active and network information is being provided from a separate server.
Once connected, the Orbi has two modes:
- In router mode, the Orbi creates a local network (LAN) with a private IP space that is different from the LAN that its WAN port is connected to. If the primary network has assigned an address of 192.168.0.x to the Orbi, then the Orbi create a LAN with 192.168.1.x It the primary LAN happens to be 192.168.1.x, then the Orbi creates a LAN of 10.0.0.x. In router mode, the Orbi uses DHCP to assign network information to devices connected to it. (IP, mask, gateway, DNS server).
- In Access Point (AP) mode, the Orbi LAN and DHCP processes are disabled. The Orbi simply relays DHCP broadcasts from devices connected to the Orbi to the primary network and relays responses back to devices.
When the Orbi router boots up, it should broadcast a DHCP request through the WAN port and expects to be informed through DHCP of the correct IP, subnet mask, gateway IP, and DHS IP. This information is displayed on the Orbi web administration "Internet" page. Note that the only way to reach the Orbi web admin is through the LAN side of the Orbi.
Thanks CrimpOn. A very informative reply.
By "Correct", do you mean that my feared thought "that the RBK350's are designed to be hooked up to an ISP modem with only one ethernet port " is correct, or that "I hope this is not the case."? I hope the latter. And that the "This" in "This is not the case" refers to my feared thought? I hope so. (I trust this clarifies for other readers).
However, forgive me, but I fail to see how this helps me with "no internet". I think I comply with your detailed explanation (thank you), and that in AP mode DHCP is broadcast and responded to correctly. All devices connected (by wire) to the satellite devices receive DHCP information correctly, including gateway address(es).
But, I am still stuck with the RBR350 not picking up the DHCP broadcast response for the gateway address(es). This is my issue. Can you help?
Contrary to your final paragraph, I am accessing the RBR350 router from the WAN side physical connection. Though peversely, I am using the IP address associated with the MAC address of the LAN side. Perhaps the packets come through the WAN to the LAN and are then picked up by the LAN side of the RBR350. I really don't care, because I do have admin access, so no problem. And this should not distract from the headline issue: the RBR350 has no internet access. So I cannot update firmware, cannot speedtest, and NTP is frozen about four years ago.
IF the ISP modem, if it includes a router, and it's in router mode, if the RBR is configured properly for AP mode, should get an IP address from the ISP router. IF the ISP modem does NOT have a built in router, then the RBR needs to be configured for router mode and not AP mode.
Thanks FURRYe38, I appreciate the niggly details.
I just checked, my ISP modem is in router mode. But DHCP is turned off in my ISP modem. DHCP is served from my servers (with failover capability).
Please confirm, AP mode is correct for my application?
Still does not help with: RBR350 Orbi router is not picking up the gateway address when it boots.
But this may be a clue: see previous response. The RBR350 picks up the DHCP response associated with the MAC address for the LAN side. I see no DHCP broadcast request from the WAN side MAC address, otherwise I would see this from the pool range leases from my DHCP server, and regardless it would still dish out the desired gateway.
Before jumping to conclusions, let me double check what I think are the MAC addresses from WAN and LAN side of the RBR350.

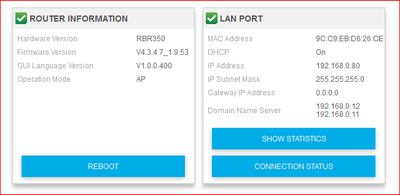

Snip from desktop web browser 192,168,0.80
This suggests it is the LAN side that picks up the DHCP broadcast response.

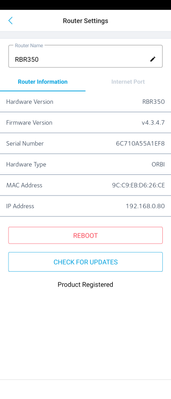

Screenshots from smartphone via Orbi WiFi

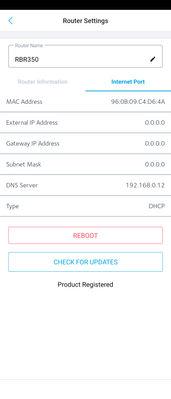

Note that the internet (WAN) side External IP Address is 0.0.0.0
This confirms the response from CrimpOn indicating no access from WAN side in AP mode.
But I need "Internet Access" for Firmware Update, NTP, Speedtest.Help!
Sorry for the confusion. Netgear router WAN ports can be connected to anything that
- Provides network parameters using DHCP
- and those network parameters lead to an Internet gateway at the IP address provided in the DHCP response.
With a gateway IP address of 0.0.0.0, the Orbi router simply cannot function. The primary task should be to determine how this is happening.
Access Point (AP) mode is a bit of a mess, which is why the common advice is to first get the system working in router mode and then switch to AP mode. In router mode, I can guarantee that the only way to access the router web interface is through a LAN port.
What I personally would do is
- do a Factory Reset on the RBR350
- Connect the WAN port to the Hub 5
- Boot it up and observe the LED.
- Connect a wired computer/laptop to one of the LAN ports on the RBR350.
- Verify that this computer has been assigned an IP address by the RBR350 and record the Gateway IP address.
(I would use ipconfig /all and look at the Ethernet adapter settings.) - Open a web browser on the computer to the Gateway IP address assigned to the computer.
(If the Hub5 LAN is 192.168.0.x, then the Orbi should be giving out a Gateway IP of 192.168.1.1) - On the web interface, open the Internet page on the Basic tab and look at the settings.
- IP address should be 192.168.0.??
- Subnet mask should be 255.255.255.0
- Gateway should be 192.168.0.1 (the Hub5)
- DNS IP should be the IP address of your DNS servers
- The wired PC should
- have internet access. i.e., it should be possible to reach an internet resource, such as 8.8.8.8 (Google DNS)
i.e. ping 8.8.8.8 - should be able to resolve URLs into IP addresses. i.e. ping ford.com
- open an ordinary web site, such as Google.com
- have internet access. i.e., it should be possible to reach an internet resource, such as 8.8.8.8 (Google DNS)
- My point is if the router does not work in the default, "out of the box" condition, then something is seriously wrong.
RBR350, in AP mode + 2 satellites RBS350
Firmware version: V4.3.4.7_1.9.53
Hardware version RBR350
Hardware Type ORBIThis is the same environment as discussed in
AP mode no internetAnd related to
and
but not addressing this specific issue
This is operating in an environment with 40+ devices and several NETGEAR and other switches. Servers (desktops, laptops, etc.) are wired using CAT6A or CAT5E. Mobile phones are connected via 5G and IoT devices via 2.4G with the ISP cable modem WiFi (Virgin Media Hub 5) on a different SSID from Orbi. DHCP and DNS are served from my own servers (with failover provision for when a server is unavailable).
Servers with attached 10-bay HDDs (acting as NAS) are noisy, so have been relegated to the garage, but the CAT6A cable between garage and cable modem is ugly and hard to disguise.The purpose of the Orbi plus Satellite(s) is purely to replace this CAT6A cable. Line of site distance about 5m through 1 single skin brick wall. In other words: 1 ethernet cable into the Internet port of the RBR350 and one ethernet cable into an ethernet port of the satellite RBS350, WiFi is unused apart from the fronthaul and backhaul. Administrative access to the RBR350 is via the wired ethernet from a desktop web browser.
Although I think I can accept the additional latency of a wireless fronthaul/backhall, the bandwidth is critical. There are regular "rsnapshot" backups during the day, transferring many GB of data, typically taking half-an-hour or so over the present 1Gbps wired configuration. Half the bandwidth would mean this time extends to over an hour with knock on consequences.
I measure bandwidth by transferring a 1.0GiB file (once, each way) using the linux command "dd" which reports perfomance for the wired connection as:
1073741824 bytes (1.1 GB, 1.0 GiB) copied, 9.40128 s, 114 MB/s
1073741824 bytes (1.1 GB, 1.0 GiB) copied, 10.0156 s, 107 MB/swhere MB/s (Mega Bytes per second) is close to the limit of 1,000Mbps (bits per second).
The rated bandwidth of the Orbi RBK353 is 1200Mbps, so I was expecting to at least equal that of the wired configuration. But I am dissappointed because in practice I am only getting less than of half this. The wireless configuration for fronthaul/backhaul is very sensitive to distance, positioning and other factors. A typical "dd" result for the wireless configuration, where the satellite is about 3m from the router, with only wood/air between, is:
1073741824 bytes (1.1 GB, 1.0 GiB) copied, 19.862 s, 54.1 MB/s
1073741824 bytes (1.1 GB, 1.0 GiB) copied, 18.8958 s, 56.8 MB/swell short (less than half) of the rated bandwidth. If the distance was less than 3m or purely an air gap, then I hardly see the need for a wireless connection, and consider my 3m arrangement to be near ideal. Yet, much less than the rated bandwidth. Am I missing something? (Yes, I've seen the footnote caveats, but 1200Mbps drop to 500Mbps in near ideal conditions is pushing it). Is this consistent with other users' experience?
Circumstances meant that I have exceeded the returns period, for this product which is not fit for the purpose I intended. So be it.
But can I double the bandwidth by using two satellites in parallel? I propose having the RBR350 (router) connected to my ISP modem, but not so close that the WiFi of the ISP modem does not interfere with the Orbi WiFi.
I then propose placing the two satellites close together, but 5m away from the RBR350, with wired connections between them:
My assumptions (hopes) are:
- Although there is only one router RBR350 box, it has sufficient capability to talk to each of the two satellites simultaneously.
- The firmware supports packet distribution to each satellite and subsequent ordered reassembly at the destination.
Is there anything to gain from this arrangement, or am I just deluding myself?
