Weird log entries and iPad showing as "wired"

Question

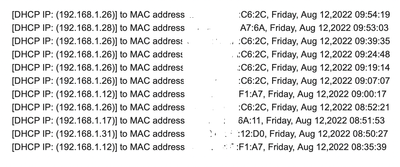

I got a log dump today and noticed that one device had abouyt 6 DHCP requests in an hour. It's the one below ending in C6:2C:

Now that device happens to be an Apple iPad. Further, that iPad was not being powered off/on, going thru restarts, updates, etc. In fact, it was probably not being used at all (it's my wife's) - it was sitting on a table with an excellent wifi signal.

Note also on the advanced/security/access control list of the router's web oage, that iPad shows as "Wired" - it most certainly is not nor has it ever been.

I know the second is probably a bug of some sort, is the first issue (all those DHCP requests in an hour) normal? Also, is it normal to get a log dump of so few entries? I just got one this morning, the first in 9 days, it only had 11 entries. This also has 11 entries. Is it not showing all the entries in the log?

donawalt · Answer

Oh yeah, something is really broken.....the Log has 23 pages worth of DHCP requests! And that iPad has had 571 requests since 7 AM this morning, 8 hours ago! What could be wrong?

CrimpOn · Answer

Could you please identify the specific model of Orbi router?&nbsp; There is a known problem with the log function on specific models.

donawalt · Answer

Sorry I should have, it's a RBR850.

TC_in_Montana · Answer

donawalt&nbsp;Please do not rely on the logs that are being mailed.&nbsp; There is a bug in the log mailing process that causes only a few lines to be mailed.&nbsp; For a true sense of the logs you would want to log into the WebUI and do a copy and paste of the log file as shown in the Router Log page.&nbsp;Definitely should NOT be seeing that many DHCP requests from the IPAD - unless maybe it is ping-ponging between router and satellite (or satellites).&nbsp; &nbsp;And I have seen instances where a device is connected, but for some reason, the router keeps sending ACK requests to it leading to lots of DHCP requests showing up in the log file.&nbsp; &nbsp;The showing "wired" vs "wireless" may be a symptom of that as well.&nbsp;You may want to turn off the IPAD for a few minutes - see if the DHCP requests stop, and then turn it back on and monitor to see if they start up again.&nbsp; &nbsp;No firmware update on the RBR850/RBS850 that would have changed anything.&nbsp; &nbsp;Was there one on the IPAD recently?&nbsp;Can you log into the router debug screen&nbsp; (192.168.1.1/debug.htm)&nbsp; &nbsp;and tell us what the CPU% and Memory Usage percent is?Additionally, could you do the same for each of the satellites you have attached&nbsp; (same debug.htm, but using the IP address of the satellite).&nbsp; &nbsp;Checking for memory leak or high CPU usage that may explain something unique happening.&nbsp;THanks!&nbsp;&nbsp;

donawalt · Answer

Sure, here is the info; everything is on FW 4.6.8.5:&nbsp;RBR850:CPU Load:&nbsp;10.72%Memory Usage(Used/Total):&nbsp;340 MB/874 MBSystem Uptime:&nbsp;11 days 11:17:01&nbsp;RBS850:CPU Load :5.11%Memory Usuage(Used/Total) :314 MB/874 MBSystem Uptime :11 days 8:22:0&nbsp;RBS850 #2:CPU Load :5.39%Memory Usuage(Used/Total) :331 MB/874 MBSystem Uptime :51 days 6:5:49&nbsp;Seems like they all look ok?&nbsp;A theory - I discovered my wife moved her iPad to a drawer, under a blanket! Go figure. I am theorizing that the iPad may be connecting/disconnected/reconnecting a lot. Possible? I just asked her to move it, and I'll see if the DHCP's stop. In the last 5 hours since I found this issue originally and reported it, it has done 29 DHCP requests. Better but not necessary imho. Let's see how it does now not under a blanket!&nbsp;&nbsp;
