Forum Discussion
Solved
no more access to the configuration address
Hello, Yesterday I wanted to configure my RAX70 in AP ethernet mode to put an orange decoder behind my router. So I have two orange decoders in ethernet behind the router that work. I wanted to put...
Glad you got it working. Please mark your thread as solved so others will know. Be sure to save off a back up configuration to file for safe keeping. Saves time if a reset is needed.
https://kb.netgear.com/24231/How-do-I-back-up-the-router-configuration-settings-on-my-Nighthawk-router
Enjoy. 📡
Thank you very much for trying to understand my problem.
Orange decodeur is tv box in france , it needs to be connected directly to the Livebox (french modem to be connected to internet). This tv box must be in the same LAN as the operator's orange modem, but my netgear changes the LAN, so I put my netgear in access point mode to keep the original LAN, and it works well for two decoders tv box .
sorry, I hope it's easier to understand now?
PatrickTwo wrote:
Orange decodeur is tv box in france , it needs to be connected directly to the Livebox (french modem to be connected to internet).
What is the modem? If that is also your router, then it makes sense to put the RAX70 into AP mode.
If you do that, then you can put the RAX70 between the modem/router and the decoders?
Then the modem/router handles all the addresses.
Then you can follow the suggestion I made earlier. Look at the controls for the modem/router. It should have a list of "Attached Devices". One of them will be the RAX70.
Feed that IP address into a browser and you should get the controls for the RAX70.
If the RAX70 is in AP mode you hit this:
Disabled Features on the Router when set to AP Mode | Answer | NETGEAR Support
If that loses controls that are important to you, you have other options.
Just another user with time on their hands.
Thanks, the internet provider modem is the Orange Livebox , there is a 40 mtr ethernet cable because the house is big, and the RAX70 is at the end of this cable to have an internet point at this location, the two TV decoders are connected to the RAX70 in ethernet .
unable to connect to 192.168.1.13
Mac-mini-de-Patrick:~ patrick$ ping 192.168.1.13
PING 192.168.1.13 (192.168.1.13): 56 data bytes
Request timeout for icmp_seq 0
Request timeout for icmp_seq 1
Request timeout for icmp_seq 2
Request timeout for icmp_seq 3
Request timeout for icmp_seq 4
Request timeout for icmp_seq 5
Request timeout for icmp_seq 6
Request timeout for icmp_seq 7
PatrickTwo wrote:
Thanks, the internet provider modem is the Orange Livebox , there is a 40 mtr ethernet cable because the house is big, and the RAX70 is at the end of this cable to have an internet point at this location,
I don't know where that screenshot comes from.
It looks like the Livebox is a gateway (modem/router). But it is hard to tell. There are different versions of the "Livebox".
Your image shows an "ordinateur". Google, and the icon, tell me that this is a PC.
You need to login to the web interface for the Livebox.
When you turn the RAX70 into an access point:
How do I change my NETGEAR router to AP mode? | Answer | NETGEAR Support
You need to restart your network in the right order:
Be sure to restart your network in this sequence:- Turn off and unplug modem/router.
- Turn off modem/router and computers.
- Plug in and turn on modem. Wait 2 minutes for it to connect.
- Turn on the access point and wait 2 minutes for it to connect.
- Turn on computers and rest of network.
Just another user with time on their hands.
>don't know where that screenshot comes from.
screenshot is from the livebox 6
>It looks like the Livebox is a gateway (modem/router). But it is hard to tell. There are different versions of the "Livebox".
Livebox is manufactured by sagemcom
The Livebox 6 is a modem router designed specifically for fiber, providing access to Orange services such as internet, telephone and television. You can connect via Wi-Fi or Ethernet from your computers and other connected devices.
>Your image shows an "ordinateur". Google, and the icon, tell me that this is a PC.
the orange livebox has put a default icon which is not correct, it shows a computer but it is indeed the RAX70 router
>You need to login to the web interface for the Livebox.

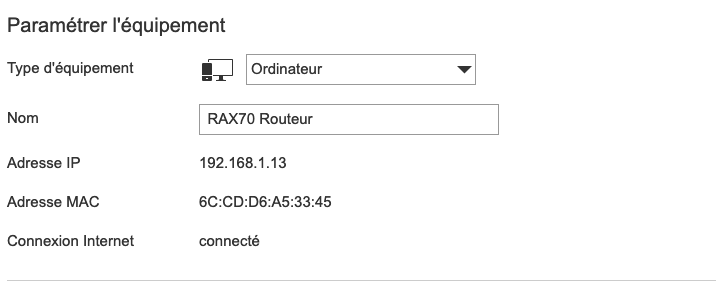

Customize settings of device RAX70 Routeur
IP address 192.168.1.13MAC address 6C:CD:D6:A5:33:45
Internet connection: connected> When you turn the RAX70 into an access point:
the RAX70 router is configured as AP
How do I change my NETGEAR router to AP mode? | Answer | NETGEAR Support
>You need to restart your network in the right order:
>Be sure to restart your network in this sequence:- Turn off and unplug modem/router.
- Turn off modem/router and computers.
- Plug in and turn on modem. Wait 2 minutes for it to connect.
- Turn on the access point and wait 2 minutes for it to connect.
- Turn on computers and rest of network.
I did all this but I still can't access the web interface that allows me to manage the RAX70 router.
i go to https://www.routerlogin.com/adv_index.htm
i have this message : Server Error 404 - File or directory not found.The resource you are looking for might have been removed, had its name changed, or is temporarily unavailable.
Your ISP Modem or router is already using 192.168.1.1 subnet. The RAX will auto detect this and avoid using same IP address to avoid a conflict as NG routers are default out of the box at 192.168.1.1. Try accessing the RAX at 10.0.0.1?
What IP address does a wired PC get from the RAX when ethernet connected to the back of the RAX?
PatrickTwo wrote:
Thanks, the internet provider modem is the Orange Livebox , there is a 40 mtr ethernet cable because the house is big, and the RAX70 is at the end of this cable to have an internet point at this location, the two TV decoders are connected to the RAX70 in ethernet .
unable to connect to 192.168.1.13
Mac-mini-de-Patrick:~ patrick$ ping 192.168.1.13
PING 192.168.1.13 (192.168.1.13): 56 data bytes
Request timeout for icmp_seq 0
Request timeout for icmp_seq 1
Request timeout for icmp_seq 2
Request timeout for icmp_seq 3
Request timeout for icmp_seq 4
Request timeout for icmp_seq 5
Request timeout for icmp_seq 6
Request timeout for icmp_seq 7>Your ISP Modem or router is already using 192.168.1.1 subnet. The RAX will auto detect this and avoid using same IP >address to avoid a conflict as NG routers are default out of the box at 192.168.1.1. Try accessing the RAX at 10.0.0.1?
>What IP address does a wired PC get from the RAX when ethernet connected to the back of the RAX?
A pc connected behind the RAX70 with a ethernet cable obtains the ip 192.168.1.40
In the router information it says : IP address 10.0.0.1, but it is impossible to reach the web configurator with a browser
