RAX43 fast roaming
Can I turn off “fast roaming”? Having issues with Circleview camera and they suggest turning off fast roaming to see if it make any difference. Can not find where in settings that I can turn it of...
That router does not offer fast roaming, as it is not a mesh unit or dedicated AP.
if needed, you can check if a AP is using fast roaming 802.11r by using a mobile app like analiti for android to show which wifi roaming features are in use by an AP. https://play.google.com/store/apps/details?id=com.analiti.fastest.android
PS for the mesh units, Netgear will typically disable fast roaming by default on their mesh routers since some client devices will have issues with it (mainly obscure aliexpress style IOT products).

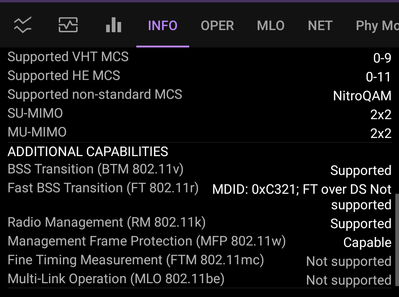

Here is an example of what you will see with the RAX43, as well as higher end models such as the RAXE500.
This is what you will see with the mesh units like the MK63 - MK93S and various other models. (fast roaming manually turned on in the advanced WiFi settings).
In the case of Netgear and most routers, functions like band steering and others are selectively applied based on the reported capabilities of the device. During the authentication, the client device will provide details about what is supported.
For example, here (pasted at the bottom of this reply) are the capabilities detected from my laptop connecting to the network.
The AP will then take that into account when deciding on things such as band steering, for example, the AP will not attempt to bandsteer the device to the 6GHz band, as as that would simply fail, but it will have no issue moving it between the 2.4GHz and 5GHz band. Overall the WiFi router will try to avoid using functions with a client that doesn't list it as a capability, though features that result in certain frames being sent to all clients regardless of capability, can lead to other issues.
The ones most likely to cause issues with clients are WPA 2+3 , as well as 802.11r, and some clients may only exhibit issues when both WPA 2+3 and 802.11r are both in use at the same time, for example, with some older Foscam branded cameras
flags 0x8d1e03a: WME N_CAP VHT_CAP HE_CAP AMPDU AMSDU GBL_RCLASS MBO_CAP
HT caps 0x9e7: LDPC 40MHz SGI20 SGI40 STBC-Tx STBC-Rx
VHT caps 0x5f: LDPC SGI80 SGI160 STBC-Tx STBC-Rx SU-BFE
HE caps 0x66a9: LDPC HE-HTC SU&MU-BFE
OMI 0x0259: 160Mhz rx=2ss tx=2ss ER_SU_DISABLE
MCS SET : [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ]
VHT SET : 0x1 1x1 2x1 3x1 4x1 5x1 6x1 7x1 8x1 9x1
: 0x2 1x2 2x2 3x2 4x2 5x2 6x2 7x2 8x2 9x2
HE SET :
20/40/80 MHz:
NSS1 Tx: 0-11 Rx: 0-11
NSS2 Tx: 0-11 Rx: 0-11
160 MHz:
NSS1 Tx: 0-11 Rx: 0-11
NSS2 Tx: 0-11 Rx: 0-11
smoothed rssi: -54
tx nrate
he mcs 10 Nss 2 Tx Exp 0 bw160 ldpc 2xLTF GI 0.8us auto
rx nrate
he mcs 7 Nss 2 Tx Exp 0 bw160 ldpc 2xLTF GI 0.8us auto
wnm
0x101: BSS-Transition Notification
link bandwidth = 160 MHZ
RRM capability = 0x72 Neighbor_Report Beacon_Passive Beacon_Active Beacon_Table
Frequency Bands Supported: 2.4G 5G
