RAXE500 (WiFi 6E) - 6GHz channels supported

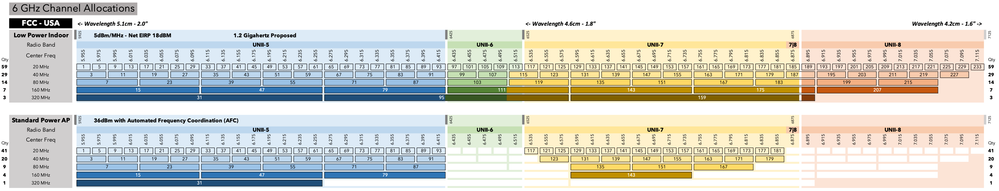

I would like to know how many of the 59 20MHz channels in 6GHz (UNII-5 through UNII-8) are supported by the RAXE500 WiFi router. The supported channels are not listed in the spec sheet.
Thanks!
The channels that it will allow you to select are:
Channel 33
Channel 37, PSC
Channel 41
Channel 45
Channel 49
Channel 53, PSC
Channel 57
Channel 61
Channel 65
Channel 69, PSC
Channel 73
Channel 77
Channel 81
Channel 85, PSC
Channel 89
Channel 93
Channel 97
Channel 101, PSC
Channel 105
Channel 109
Channel 113
Channel 117, PSC
Channel 121
Channel 125
Channel 129
Channel 133, PSC
Channel 137
Channel 141
Channel 145
Channel 149, PSC
Channel 153
Channel 157
Channel 161
Channel 165, PSC
Channel 169
Channel 173
Channel 177
Channel 181, PSC
Channel 185
Channel 189
Channel 193
Channel 197, PSC
Channel 201
Channel 205
Channel 209
Channel 213, PSC
Channel 217
Channel 221
Channel 225
Channel 229, PSC
Channel 233
3 Replies
The channels that it will allow you to select are:
Channel 33
Channel 37, PSC
Channel 41
Channel 45
Channel 49
Channel 53, PSC
Channel 57
Channel 61
Channel 65
Channel 69, PSC
Channel 73
Channel 77
Channel 81
Channel 85, PSC
Channel 89
Channel 93
Channel 97
Channel 101, PSC
Channel 105
Channel 109
Channel 113
Channel 117, PSC
Channel 121
Channel 125
Channel 129
Channel 133, PSC
Channel 137
Channel 141
Channel 145
Channel 149, PSC
Channel 153
Channel 157
Channel 161
Channel 165, PSC
Channel 169
Channel 173
Channel 177
Channel 181, PSC
Channel 185
Channel 189
Channel 193
Channel 197, PSC
Channel 201
Channel 205
Channel 209
Channel 213, PSC
Channel 217
Channel 221
Channel 225
Channel 229, PSC
Channel 233Many thanks Razor512! This is very helpful indeed.
Do you have any insight on why channels 1, 5, 9, 13, 17, 21, 25, 29 are not supported within UNII-5?
Much appreciated!
Devin
