Flashed R8000 with R7000 firmware

Hello All,

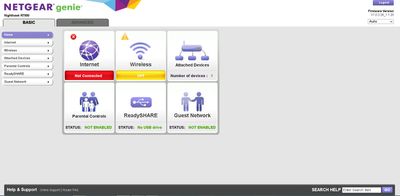

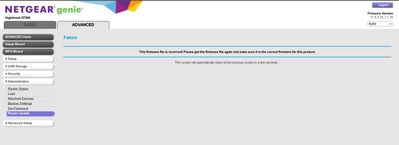

I have flashed the R8000 with R7000 firmware. I can login via 192.168.1.1 to the router's home screen (r7000) however every attempt at flashing a different firmware in the gui has failed.

I have tried factory reset in the gui, no go.

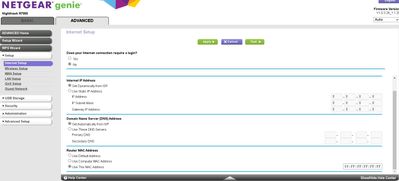

The mac address has changed as well to 00:FF:FF:FF:FF:FF. Tried changing it in the gui manually but that doesn't work.

I know nothing about routers, but after reading the forums on here I managed to get the below log file from putty.

I have already invested so much time in attempting to fix this router and would like to but I don't know how and more importantly if it can be salvage.

Any help on this matter would be most appreciated.

Reset
Terminated
: cmd=159: No such device
eth2: cmd=159: No such device
Sending SIGTERM to all processes
Sending Restarting system.
Digital core power voltage set to 1.0V
Decompressing...done
Digital core power voltage set to 1.0V

SHMOO VER 1.13

PKID07DC06011801080000000000001A103F01000000

S300001CF
00001380

RDLYW0 00000004

RDENW0 00000033

RDQSW0

0000000000111111111122222222223333333333444444444455555555556666
0123456789012345678901234567890123456789012345678901234567890123
00 -------+++++++++++++++++++++++X++++++++++++++++++++++-----------
01 ---------------+++++++++++++++++++++X+++++++++++++++++++++------
02 ---------+++++++++++++++++++++++X+++++++++++++++++++++++--------
03 --------+++++++++++++++++++++++X++++++++++++++++++++++----------
04 ------++++++++++++++++++++++X+++++++++++++++++++++--------------
05 ---------+++++++++++++++++++++++X+++++++++++++++++++++++--------
06 -------++++++++++++++++++++++X++++++++++++++++++++++------------
07 -----------+++++++++++++++++++++++X+++++++++++++++++++++++------
08 --------++++++++++++++++++++++X+++++++++++++++++++++------------
09 ------------+++++++++++++++++++++++X++++++++++++++++++++++------
10 --------+++++++++++++++++++++++X+++++++++++++++++++++++---------
11 ------------+++++++++++++++++++++++X+++++++++++++++++++++++-----
12 -------+++++++++++++++++++++++X+++++++++++++++++++++++----------
13 -------------++++++++++++++++++++++X++++++++++++++++++++++------
14 ----------+++++++++++++++++++++++X++++++++++++++++++++++--------
15 --------------++++++++++++++++++++++X+++++++++++++++++++++------

PW0

0000000000111111111122222222223333333333444444444455555555556666
0123456789012345678901234567890123456789012345678901234567890123
00 ++++++++++++++++++++++++++X++++++++++++++++++++++++++-----------
01 -----++++++++++++++++++++++++++X++++++++++++++++++++++++++------
02 --+++++++++++++++++++++++++++X++++++++++++++++++++++++++--------
03 -++++++++++++++++++++++++++X++++++++++++++++++++++++++----------
04 +++++++++++++++++++++++++X++++++++++++++++++++++++--------------
05 ++++++++++++++++++++++++++++X+++++++++++++++++++++++++++--------
06 ++++++++++++++++++++++++++X+++++++++++++++++++++++++------------
07 ---+++++++++++++++++++++++++++X+++++++++++++++++++++++++++------
08 ++++++++++++++++++++++++++X+++++++++++++++++++++++++------------
09 -----+++++++++++++++++++++++++++X+++++++++++++++++++++++++++----
10 --+++++++++++++++++++++++++++X++++++++++++++++++++++++++--------
11 ------+++++++++++++++++++++++++++++X++++++++++++++++++++++++++--
12 +++++++++++++++++++++++++++X+++++++++++++++++++++++++++---------
13 -------+++++++++++++++++++++++++++X++++++++++++++++++++++++++---
14 --++++++++++++++++++++++++++++X+++++++++++++++++++++++++++------
15 ------+++++++++++++++++++++++++++X++++++++++++++++++++++++++----

NW0

0000000000111111111122222222223333333333444444444455555555556666
0123456789012345678901234567890123456789012345678901234567890123
00 ------+++++++++++++++++++++++++X++++++++++++++++++++++++--------
01 ---------------++++++++++++++++++++++++X++++++++++++++++++++++--
02 ----------+++++++++++++++++++++++X+++++++++++++++++++++++-------
03 --------++++++++++++++++++++++++X+++++++++++++++++++++++--------
04 ------+++++++++++++++++++++++X++++++++++++++++++++++------------
05 --------+++++++++++++++++++++++++X++++++++++++++++++++++++------
06 -------++++++++++++++++++++++X++++++++++++++++++++++------------
07 ------------++++++++++++++++++++++++X+++++++++++++++++++++++----
08 --------++++++++++++++++++++++X++++++++++++++++++++++-----------
09 ------------+++++++++++++++++++++++X++++++++++++++++++++++------
10 ---------+++++++++++++++++++++++X++++++++++++++++++++++---------
11 -------------+++++++++++++++++++++++X++++++++++++++++++++++-----
12 -------+++++++++++++++++++++++X+++++++++++++++++++++++----------
13 --------------++++++++++++++++++++++X+++++++++++++++++++++------
14 ---------+++++++++++++++++++++++X+++++++++++++++++++++++--------
15 -------------++++++++++++++++++++++X++++++++++++++++++++++------

WRDQW0

0000000000111111111122222222223333333333444444444455555555556666
0123456789012345678901234567890123456789012345678901234567890123
00 +++++++++++++++++++++++X++++++++++++++++++++++-------++++++++++-
01 ++++++++++++++++++++++++X+++++++++++++++++++++++------+++++++++-
02 +++++++++++++++++++++++X++++++++++++++++++++++-------++++++++++-
03 +++++++++++++++++++++++X+++++++++++++++++++++++-------+++++++++-
04 +++++++++++++++++++++X+++++++++++++++++++++----------++++++++++-
05 ++++++++++++++++++++++++X++++++++++++++++++++++++-----+++++++++-
06 +++++++++++++++++++++X+++++++++++++++++++++----------++++++++++-
07 ++++++++++++++++++++++++X++++++++++++++++++++++++-----+++++++++-
08 +++++++++++++++++++++++X++++++++++++++++++++++-------++++++++++-
09 ++++++++++++++++++++++++X+++++++++++++++++++++++---------++++++-
10 +++++++++++++++++++++++X+++++++++++++++++++++++-------+++++++++-
11 ---+++++++++++++++++++++++X++++++++++++++++++++++----------++++-
12 ++++++++++++++++++++++++X+++++++++++++++++++++++-----++++++++++-
13 -++++++++++++++++++++++++X+++++++++++++++++++++++-----------+++-
14 ++++++++++++++++++++++++X+++++++++++++++++++++++-------++++++++-
15 --+++++++++++++++++++++++X+++++++++++++++++++++++----------++++-

WRDMW0 00000022
WRDMW0 00000024

ADDR

0000000000111111111122222222223333333333444444444455555555556666
0123456789012345678901234567890123456789012345678901234567890123
00 +++++++++++++++++++S+++++++++++X++++++++++++++++++++++++++++++++

Decompressing...done

CFE for Foxconn Router R8000 version: v1.0.8
Build Date: Fri May 30 15:03:06 CST 2014
Init Arena
Init Devs.
Boot up from NAND flash...
Bootcode Boot partition size = 524288(0x80000)
DDR Clock: 800 MHz
Info: DDR frequency set from clkfreq=1000,*800*
et2: Broadcom BCM47XX 10/100/1000 Mbps Ethernet Controller 7.14.43.2 (r474543)
CPU type 0x0: 1000MHz
Tot mem: 262144 KBytes

Device eth0: hwaddr 00-FF-FF-FF-FF-FF, ipaddr 192.168.1.1, mask 255.255.255.0
gateway not set, nameserver not set
Checking crc...Loader:raw Filesys:raw Dev:nflash0.os File: Options:(null)
Loading: ..... 4778464 bytes read
Entry at 0x00008000
Closing network.
Starting program at 0x00008000
console [ttyS0] enabled, bootconsole disabled
serial8250.0: ttyS1 at MMIO 0x18000400 (irq = 117) is a 16550
brd: module loaded
loop: module loaded
pflash: found no supported devices
bcmsflash: found no supported devices
Boot partition size = 524288(0x80000)
lookup_nflash_rootfs_offset: offset = 0x200000
nflash: squash filesystem with lzma found at block 31
Creating 17 MTD partitions on "nflash":
0x000000000000-0x000000080000 : "boot"
0x000000080000-0x000000200000 : "nvram"
0x000000200000-0x000002200000 : "linux"
0x0000003e01c4-0x000002200000 : "rootfs"
0x000002200000-0x000002240000 : "board_data"
0x000002240000-0x000002280000 : "POT1"
0x000002280000-0x0000022c0000 : "POT2"
0x0000022c0000-0x000002340000 : "T_Meter1"
0x000002340000-0x0000023c0000 : "T_Meter2"
0x0000023c0000-0x000002400000 : "ML1"
0x000002400000-0x000002440000 : "ML2"
0x000002440000-0x000002480000 : "ML3"
0x000002480000-0x0000024c0000 : "ML4"
0x0000024c0000-0x000002500000 : "ML5"
0x000002500000-0x000002540000 : "ML6"
0x000002540000-0x000002580000 : "ML7"
0x000002580000-0x0000025c0000 : "QoSRule"
PPP generic driver version 2.4.2
NET: Registered protocol family 24
PPPoL2TP kernel driver, V0.17
tun: Universal TUN/TAP device driver, 1.6
tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
ehci_hcd 0000:00:0b.1: EHCI Host Controller
ehci_hcd 0000:00:0b.1: new USB bus registered, assigned bus number 1
ehci_hcd 0000:00:0b.1: irq 111, io mem 0x18021000
ehci_hcd 0000:00:0b.1: USB 0.0 started, EHCI 1.00
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 2 ports detected
ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
ohci_hcd 0000:00:0b.0: OHCI Host Controller
ohci_hcd 0000:00:0b.0: new USB bus registered, assigned bus number 2
ohci_hcd 0000:00:0b.0: irq 111, io mem 0x18022000
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 2 ports detected
xhci_hcd 0000:00:0c.0: xHCI Host Controller
xhci_hcd 0000:00:0c.0: new USB bus registered, assigned bus number 3
xhci_hcd 0000:00:0c.0: irq 112, io mem 0x18023000
xhci_hcd 0000:00:0c.0: Failed to enable MSI-X
xhci_hcd 0000:00:0c.0: failed to allocate MSI entry
usb usb3: No SuperSpeed endpoint companion for config 1 interface 0 altsetting 0 ep 129: using minimum values
xHCI xhci_add_endpoint called for root hub
xHCI xhci_check_bandwidth called for root hub
hub 3-0:1.0: USB hub found
hub 3-0:1.0: 1 port detected
Initializing USB Mass Storage driver...
usbcore: registered new interface driver usb-storage
USB Mass Storage support registered.
u32 classifier
Actions configured
ip_tables: (C) 2000-2006 Netfilter Core Team
TCP cubic registered
NET: Registered protocol family 10
lo: Disabled Privacy Extensions
IPv6 over IPv4 tunneling driver
sit0: Disabled Privacy Extensions
ip6tnl0: Disabled Privacy Extensions
NET: Registered protocol family 17
802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
All bugs added by David S. Miller <davem@redhat.com>
Northstar brcmnand NAND Flash Controller driver, Version 0.1 (c) Broadcom Inc. 2 012
NAND device: Manufacturer ID: 0xc2, Chip ID: 0xf1 (Unknown NAND 128MiB 3,3V 8-bi t)
Spare area=64 eccbytes 56, ecc bytes located at:
2 3 4 5 6 7 8 9 10 11 12 13 14 15 18 19 20 21 22 23 24 25 26 27 28 29 30 31 34 35 36 37 38 39 40 41 42 43 44 45 46 47 50 51 52 53 54 55 56 57 58 59 60 61 62 63
Available 7 bytes at (off,len):
(1,1) (16,2) (32,2) (48,2) (0,0) (0,0) (0,0) (0,0)
Scanning device for bad blocks
Bad eraseblock 251 at 0x000001f60000
Bad eraseblock 322 at 0x000002840000
Bad eraseblock 552 at 0x000004500000
Options: NO_AUTOINCR,NO_READRDY,
Creating 2 MTD partitions on "brcmnand":
0x000002600000-0x000007b00000 : "brcmnand"
0x000007b00000-0x000008000000 : "OpenVPN"
VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
devtmpfs: mounted
Freeing init memory: 216K
tpl
[sighandler]: No more events to be processed, quitting.
[cleanup]: Waiting for children.
[cleanup]: All children terminated.
Reading board data...
PIN number not found!
WSC UUID: 0xd1c9a172b5f7b72f35bb4cf0531b0ec8
NTP synchronized date/time: 00-00-00
MAC address of 1st STA connected: 00-00-00-00-00-00
convert_wlan_params: Unknown WLAN region
invalid RF magic!
No RF parameters! Use default.
### main:1257 Set Normal Power!
Initialise conn table 2048 entries
insmod: proxyarp.ko: no module by that name found
tpl
insmod: usbcore.ko: no module by that name found
insmod: ehci-hcd.ko: no module by that name found
insmod: wl_high.ko: no module by that name found
tpl
tpl
eth1: cmd=14: No such device
wl-1 not up in 3 sec
Hit enter to continue...

BusyBox v1.7.2 (2014-02-12 08:40:26 CST) built-in shell (ash)
Enter 'help' for a list of built-in commands.

# tpl
/bin/sh: tpl: not found
# tpl
/bin/sh: tpl: not found
# tpl
/bin/sh: tpl: not found
# tpl
/bin/sh: tpl: not found
# tpl
/bin/sh: tpl: not found
# tftpboot
/bin/sh: tftpboot: not found
