Forum Discussion

nudist's avatar
nudist
Aspirant
Sep 30, 2022
Solved

Time to swap out one of my Raid disks? RN 516 (6 bay)

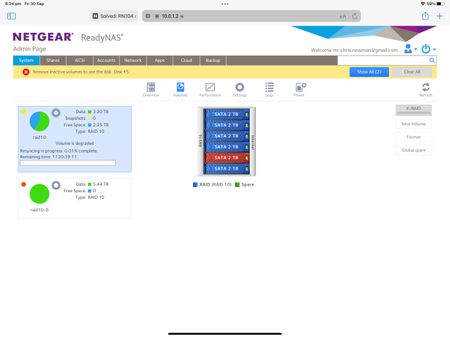

It’s been quite awhile since I last dropped into this forum. Things have been going very smoothly with my RN516  and I have found in the past that your advice has been dispensable. I’ve come across a...
  • nudist's avatar
    nudist
    Oct 01, 2022

    Yes I am with Gmail. Thanks I found the reference on  my Google account to thirty party app approvals and configured it back on the Readynas rhen sent a test email. it’s all working well for the first time ever I think I bought the 516 about eight years ago so thank you Stephen for helping me get the email alerts working. hopefully I’ll be alerted to a impending disk failures a bit sooner.  I’ll mark this one as a solution

nudist's avatar
nudist
Aspirant
Sep 30, 2022

The disk are relatively new and they are the red label disks. Yes I’ve made sure I have a full backup of the data last done a few months ago. Thanks for going to the trouble to respond  Much obliged

StephenB's avatar
StephenB
Guru - Experienced User
Sep 30, 2022
nudist wrote:

The disk are relatively new and they are the red label disks.

WD20EFAX?  Or a different model?  The WD20EFAX are SMR.

  • nudist's avatar
    nudist
    Aspirant
    Sep 30, 2022

    2 TB SATA WD20EFRX.



    One more question. That fact that this disk reported an error means it shouldn't be trusted even if it can be reformatted and then appears OK. Which means it will probably fail again at some point in the future so best to discard?

    • StephenB's avatar
      StephenB
      Guru - Experienced User
      Oct 01, 2022
      nudist wrote:

      One more question. That fact that this disk reported an error means it shouldn't be trusted even if it can be reformatted and then appears OK. Which means it will probably fail again at some point in the future so best to discard?

      That's a bit of a judgment call.  I do have some disks that have generated a single error that I am still running.



      What underlying errors (if any) are you seeing in the log zip?





      • nudist's avatar
        nudist
        Aspirant
        Oct 01, 2022

        Ive bought and installed a seagate Iron Wolf 2TB replacement disk. Im waiting for the volumes to rebuilt. Because I configured the array for XRAID, Im guessing that at the end the process it will add the new disk to the array and write data to it.



        Here the dump of the log file. (If you wondering, I haven't been able to configure the alert message facility to send warnings emails to me)

        Sep 27 13:13:43 Readynas516 readynasd[3642]: Disk in channel 5 (Internal) changed state from ONLINE to FAILED.
        Sep 27 13:13:44 Readynas516 readynasd[3642]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 27 13:13:44 Readynas516 readynasd[3642]: Alert message failed to send.
        Sep 27 13:13:44 Readynas516 readynasd[3642]: Could not send email
        Sep 27 13:14:34 Readynas516 readynasd[3642]: Volume raid10 health changed from Redundant to Degraded.
        Sep 27 13:14:34 Readynas516 readynasd[3642]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 27 13:14:34 Readynas516 readynasd[3642]: Could not send email
        Sep 27 13:14:34 Readynas516 readynasd[3642]: System will be shut down in 30 minutes because of disk failure.
        Sep 27 13:14:35 Readynas516 readynasd[3642]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 27 13:14:35 Readynas516 readynasd[3642]: Could not send email
        Sep 27 13:46:06 Readynas516 readynasd[3642]: Exit main thread by SIGTERM.
        Sep 27 13:46:06 Readynas516 readynasd[3642]: readynasd is halted.
        -- Reboot --
        Sep 27 18:00:51 Readynas516 readynasd[3668]: readynasd log started
        Sep 27 18:00:51 Readynas516 readynasd[3668]: readynasd started. (restarted=0)
        Sep 27 18:00:56 Readynas516 readynasd[3668]: Last run started at 1664247133 was aborted
        Sep 27 18:00:56 Readynas516 readynasd[3668]: Detect abnormal shutdown of readynasd and child without core
        Sep 27 18:00:56 Readynas516 readynasd[3668]: ReadyNASOS service or process was restarted.
        Sep 27 18:00:58 Readynas516 readynasd[3668]: Using fan mode: balanced
        Sep 27 18:00:58 Readynas516 readynasd[3668]: Volume raid10 is Degraded.
        Sep 27 18:00:58 Readynas516 readynasd[3668]: NetworkStats eth0 failed: ERROR: mmaping file '/run/readynasd/stats/network_eth0_pkts.rrd': Invalid argument
        Sep 27 18:01:00 Readynas516 readynasd[3668]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 27 18:01:00 Readynas516 readynasd[3668]: Alert message failed to send.
        Sep 27 18:01:00 Readynas516 readynasd[3668]: Could not send email
        Sep 27 18:01:09 Readynas516 readynasd[3668]: Resyncing started for Volume raid10.
        Sep 27 18:01:10 Readynas516 readynasd[3668]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 27 18:01:10 Readynas516 readynasd[3668]: Could not send email
        Sep 27 18:01:35 Readynas516 readynasd[3668]: ReadyNASOS background service started.
        Sep 27 18:10:29 Readynas516 readynasd[3668]: The resync operation finished on volume raid10. However, the volume is still degraded.
        Sep 27 18:10:30 Readynas516 readynasd[3668]: NAS_SEND_MSMTP_RUN: Fail. (status=141. error_buf=(null))
        Sep 27 18:10:30 Readynas516 readynasd[3668]: Could not send email
        Sep 27 18:10:30 Readynas516 readynasd[3668]: Disk in channel 5 (Internal) changed state from RESYNC to FAILED.
        Sep 27 18:10:30 Readynas516 readynasd[3668]: NAS_SEND_MSMTP_RUN: Fail. (status=141. error_buf=(null))
        Sep 27 18:10:30 Readynas516 readynasd[3668]: Could not send email
        Sep 27 18:17:25 Readynas516 readynasd[3668]: Antivirus scanner definition file was updated to 62.26671.
        Sep 27 22:00:08 Readynas516 readynasd[3668]: The system is shutting down.
        Sep 27 22:00:23 Readynas516 readynasd[3668]: Exit main thread by SIGTERM.
        -- Reboot --
        Sep 28 18:00:50 Readynas516 readynasd[3639]: readynasd log started
        Sep 28 18:00:51 Readynas516 readynasd[3639]: readynasd started. (restarted=0)
        Sep 28 18:00:59 Readynas516 readynasd[3639]: Using fan mode: balanced
        Sep 28 18:00:59 Readynas516 readynasd[3639]: Volume raid10 is Degraded.
        Sep 28 18:00:59 Readynas516 readynasd[3639]: NetworkStats eth0 failed: ERROR: mmaping file '/run/readynasd/stats/network_eth0_pkts.rrd': Invalid argument
        Sep 28 18:01:00 Readynas516 readynasd[3639]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 28 18:01:00 Readynas516 readynasd[3639]: Alert message failed to send.
        Sep 28 18:01:00 Readynas516 readynasd[3639]: Could not send email
        Sep 28 18:01:10 Readynas516 readynasd[3639]: Resyncing started for Volume raid10.
        Sep 28 18:01:11 Readynas516 readynasd[3639]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 28 18:01:11 Readynas516 readynasd[3639]: Could not send email
        Sep 28 18:01:37 Readynas516 readynasd[3639]: ReadyNASOS background service started.
        Sep 28 18:04:51 Readynas516 readynasd[3639]: Detected increasing reallocated sector count: [502] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 12 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 28 18:04:52 Readynas516 readynasd[3639]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 28 18:04:52 Readynas516 readynasd[3639]: Could not send email
        Sep 28 18:06:13 Readynas516 readynasd[3639]: Detected increasing reallocated sector count: [503] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 13 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 28 18:06:14 Readynas516 readynasd[3639]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 28 18:06:14 Readynas516 readynasd[3639]: Could not send email
        Sep 28 18:08:24 Readynas516 readynasd[3639]: Detected increasing reallocated sector count: [519] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 14 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 28 18:08:25 Readynas516 readynasd[3639]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 28 18:08:25 Readynas516 readynasd[3639]: Could not send email
        Sep 28 18:11:56 Readynas516 readynasd[3639]: Disk in channel 5 (Internal) changed state from RESYNC to ONLINE.
        Sep 28 18:11:58 Readynas516 readynasd[3639]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 28 18:11:58 Readynas516 readynasd[3639]: Could not send email
        Sep 28 18:12:08 Readynas516 readynasd[3639]: The resync operation finished on volume raid10. However, the volume is still degraded.
        Sep 28 18:12:08 Readynas516 readynasd[3639]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 28 18:12:08 Readynas516 readynasd[3639]: Could not send email
        Sep 28 22:00:14 Readynas516 readynasd[3639]: The system is shutting down.
        Sep 28 22:00:35 Readynas516 readynasd[3639]: Exit main thread by SIGTERM.
        Sep 28 22:00:35 Readynas516 readynasd[3639]: readynasd is halted.
        -- Reboot --
        Sep 29 18:00:52 Readynas516 readynasd[3670]: readynasd log started
        Sep 29 18:00:52 Readynas516 readynasd[3670]: readynasd started. (restarted=0)
        Sep 29 18:00:59 Readynas516 readynasd[3670]: Using fan mode: balanced
        Sep 29 18:00:59 Readynas516 readynasd[3670]: Volume raid10 is Degraded.
        Sep 29 18:01:00 Readynas516 readynasd[3670]: NetworkStats eth0 failed: ERROR: mmaping file '/run/readynasd/stats/network_eth0_pkts.rrd': Invalid argument
        Sep 29 18:01:00 Readynas516 readynasd[3670]: Detected increasing reallocated sector count: [576] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 15 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 29 18:01:01 Readynas516 readynasd[3670]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 29 18:01:01 Readynas516 readynasd[3670]: Alert message failed to send.
        Sep 29 18:01:01 Readynas516 readynasd[3670]: Could not send email
        Sep 29 18:01:09 Readynas516 readynasd[3670]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 29 18:01:09 Readynas516 readynasd[3670]: Could not send email
        Sep 29 18:01:45 Readynas516 readynasd[3670]: Resyncing started for Volume raid10.
        Sep 29 18:01:46 Readynas516 readynasd[3670]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 29 18:01:46 Readynas516 readynasd[3670]: Could not send email
        Sep 29 18:01:47 Readynas516 readynasd[3670]: ReadyNASOS background service started.
        Sep 29 18:02:07 Readynas516 readynasd[3670]: Detected increasing reallocated sector count: [605] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 16 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 29 18:02:07 Readynas516 readynasd[3670]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 29 18:02:07 Readynas516 readynasd[3670]: Could not send email
        Sep 29 18:04:31 Readynas516 readynasd[3670]: Detected increasing reallocated sector count: [610] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 17 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 29 18:04:32 Readynas516 readynasd[3670]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 29 18:04:32 Readynas516 readynasd[3670]: Could not send email
        Sep 29 18:06:26 Readynas516 readynasd[3670]: Detected increasing reallocated sector count: [613] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 18 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 29 18:06:26 Readynas516 readynasd[3670]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 29 18:06:26 Readynas516 readynasd[3670]: Could not send email
        Sep 29 18:08:18 Readynas516 readynasd[3670]: The resync operation finished on volume raid10. However, the volume is still degraded.
        Sep 29 18:08:18 Readynas516 readynasd[3670]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 29 18:08:18 Readynas516 readynasd[3670]: Could not send email
        Sep 29 18:08:18 Readynas516 readynasd[3670]: Disk in channel 5 (Internal) changed state from RESYNC to FAILED.
        Sep 29 18:08:19 Readynas516 readynasd[3670]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 29 18:08:19 Readynas516 readynasd[3670]: Could not send email
        Sep 29 18:17:27 Readynas516 readynasd[3670]: Antivirus scanner definition file was updated to 62.26673.
        Sep 29 22:00:12 Readynas516 readynasd[3670]: The system is shutting down.
        Sep 29 22:00:23 Readynas516 readynasd[3670]: Exit main thread by SIGTERM.
        Sep 29 22:00:23 Readynas516 readynasd[3670]: readynasd is halted.
        -- Reboot --
        Sep 30 17:26:54 Readynas516 readynasd[3664]: readynasd log started
        Sep 30 17:26:55 Readynas516 readynasd[3664]: readynasd started. (restarted=0)
        Sep 30 17:27:02 Readynas516 readynasd[3664]: Using fan mode: balanced
        Sep 30 17:27:02 Readynas516 readynasd[3664]: Volume raid10 is Degraded.
        Sep 30 17:27:02 Readynas516 readynasd[3664]: NetworkStats eth0 failed: ERROR: mmaping file '/run/readynasd/stats/network_eth0_pkts.rrd': Invalid argument
        Sep 30 17:27:03 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [615] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 19 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:27:03 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:27:04 Readynas516 readynasd[3664]: Alert message failed to send.
        Sep 30 17:27:04 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:27:13 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:27:13 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:27:26 Readynas516 readynasd[3664]: Resyncing started for Volume raid10.
        Sep 30 17:27:27 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:27:27 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:27:40 Readynas516 readynasd[3664]: ReadyNASOS background service started.
        Sep 30 17:28:11 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [621] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 20 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:28:11 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:28:11 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:30:14 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [625] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 21 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:30:14 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:30:14 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:32:46 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [626] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 22 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:32:46 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:32:46 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:34:44 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [661] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 23 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:34:45 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:34:45 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:36:29 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [762] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 24 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:36:30 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:36:30 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:41:24 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [862] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 25 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:41:24 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:41:24 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:42:36 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [885] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 26 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:42:36 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:42:36 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:44:58 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [965] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 27 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:44:59 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:44:59 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:47:21 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [1008] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 28 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:47:22 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:47:22 Readynas516 readynasd[3664]: Could not send email
        Sep 30 17:50:19 Readynas516 readynasd[3664]: Detected increasing reallocated sector count: [1076] on disk 5 (Internal) [WDC WD20EFRX-68EUZN0 WD-WCC4M1YLZFFP] 29 times in the past 30 days. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy.
        Sep 30 17:50:19 Readynas516 readynasd[3664]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:50:19 Readynas516 readynasd[3664]: Could not send email
        -- Reboot --
        Sep 30 17:57:33 Readynas516 readynasd[3734]: readynasd log started
        Sep 30 17:57:34 Readynas516 readynasd[3734]: readynasd started. (restarted=0)
        Sep 30 17:57:40 Readynas516 readynasd[3734]: Using fan mode: balanced
        Sep 30 17:57:40 Readynas516 readynasd[3734]: Volume raid10 is Degraded.
        Sep 30 17:57:40 Readynas516 readynasd[3734]: Resyncing started for Volume raid10.
        Sep 30 17:57:40 Readynas516 readynasd[3734]: NetworkStats eth0 failed: ERROR: mmaping file '/run/readynasd/stats/network_eth0_pkts.rrd': Invalid argument
        Sep 30 17:57:41 Readynas516 readynasd[3734]: NAS_SEND_MSMTP_RUN: Fail.

        Sep 30 17:57:41 Readynas516 readynasd[3734]: Alert message failed to send.
        Sep 30 17:57:41 Readynas516 readynasd[3734]: Could not send email
        Sep 30 17:57:42 Readynas516 readynasd[3734]: NAS_SEND_MSMTP_RUN: Fail. (status=1. error_buf=(null))
        Sep 30 17:57:42 Readynas516 readynasd[3734]: Could not send email
        Sep 30 17:58:16 Readynas516 readynasd[3734]: ReadyNASOS background service started.
        -- Reboot --



NETGEAR Academy

Boost your skills with the Netgear Academy - Get trained, certified and stay ahead with the latest Netgear technology!

Join Us!

ProSupport for Business

Comprehensive support plans for maximum network uptime and business peace of mind.



Learn More
