DIscrepancy Between Orbi Traffic Monitor and ISP's Reported Bandwidth Usage
Is anyone else noticing a discrepancy between what the Orbi Traffic Meter reports versus what your ISP (specifically Comcast) is reporting? Before I complain to Comcast I was hoping to see if anyone else is experiencing this and looking to validate the Orbi is reporting correctly, possible using another device to somehow also calculate bandwidth usage.
February:
Orbi Total / Avg: 758,303MB / 27,082MB per day = 28 days
Comcast Total: 995GB
Difference Total / Avg: 237GB / 8.46GB per day
March as of today 3/23:
Orbi Total / Avg: 873,106MB / 37,961MB = 23 days
Comcast Total: 1034GB
Difference Total / Avg:161GB / 7 GB per day
It does appear to be working as expected with the latest firmware, or close enough within fault tolerance. Monthly, Yesterday, and Today records seem to fall within acceptable expectation.

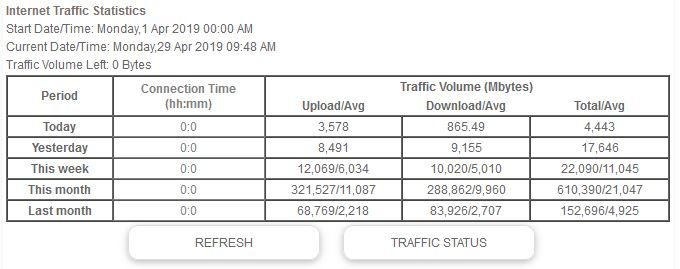

April:
Orbi - 610GB

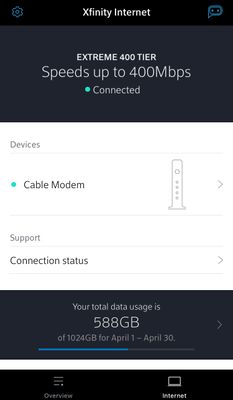

ISP - 588GB

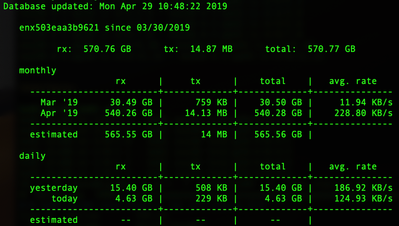

Tap - 540GB
I expect the Orbi to have the highest record since it should actively track every bit of data running through it at full line rate.
I expect the Tap to have the lowest record since it it limited to USB 2.0 Bus speed (Raspberry Pi) and therefore will not fully record any traffic exceeding ~300mbit/sec.
I expect the ISP record to sit between the Orbi and Tap as a general guideline due to the previously mentioned reasoning as well as being on an expected slight delay.
22 Replies
Replies have been turned off for this discussion
What FW is currently loaded?
What is the Mfr and model# of the ISP modem the NG router is connected too?Was the traffic monitoring setup at the same start cycle as the ISP when tracking traffic?
Not many users have mentioned this...
The firmware running at the time was V2.2.1.210
I found and executed the manual firmware update process of V2.2.1.210 --> V2.2.1.212 --> V2.3.0.32
After these three firmware updates on both RBR50 and RBS50, the Orbi found and updated to the latest firmware V2.3.1.44
The router is directly and solely connected to my personal owned ARRIS SURFboard SB6190. This modem is the only device connected to coaxial cable at my house.
Orbi Traffic Monitoring has been running for several months and the start cycle is very close to the ISP cutoff. I want to say Comcast switches periods at 10pm EST on the last day of the month while the Orbi meter is set to 12am on 1st day of the month. I believe I read this switchover somewhere, but cannot find corroborating information at this time. The time period still seems close enough to question such a large discrepancy.
https://forums.xfinity.com/t5/My-Account/ANSWERED-Xfinity-Internet-Data-Usage-Guide/ta-p/3049979
Meter accuracy
Keep in mind that the meter is not in real time, there is a lag between a traffic event and when the meter will actually display it. Also, the meter operates on universal time (UT or GMT). This means that the "new month" which will show a meter reset to zero appears in the evening of the last day of the month across the US.
Well never have had great confidents in ISP meter readings.
Has a factory reset been performed then setup from scratch? Something you might want to try on or near the day the ISP sets up a new cycle for you. Then setup TM again and start to track data and see how each one does like after a week of tracking.
ambros wrote:
The firmware running at the time was V2.2.1.210
I found and executed the manual firmware update process of V2.2.1.210 --> V2.2.1.212 --> V2.3.0.32
After these three firmware updates on both RBR50 and RBS50, the Orbi found and updated to the latest firmware V2.3.1.44
The router is directly and solely connected to my personal owned ARRIS SURFboard SB6190. This modem is the only device connected to coaxial cable at my house.
Orbi Traffic Monitoring has been running for several months and the start cycle is very close to the ISP cutoff. I want to say Comcast switches periods at 10pm EST on the last day of the month while the Orbi meter is set to 12am on 1st day of the month. I believe I read this switchover somewhere, but cannot find corroborating information at this time. The time period still seems close enough to question such a large discrepancy.
https://forums.xfinity.com/t5/My-Account/ANSWERED-Xfinity-Internet-Data-Usage-Guide/ta-p/3049979
Meter accuracy
Keep in mind that the meter is not in real time, there is a lag between a traffic event and when the meter will actually display it. Also, the meter operates on universal time (UT or GMT). This means that the "new month" which will show a meter reset to zero appears in the evening of the last day of the month across the US.
