LTE 4x4 MIMO outdoor antenna

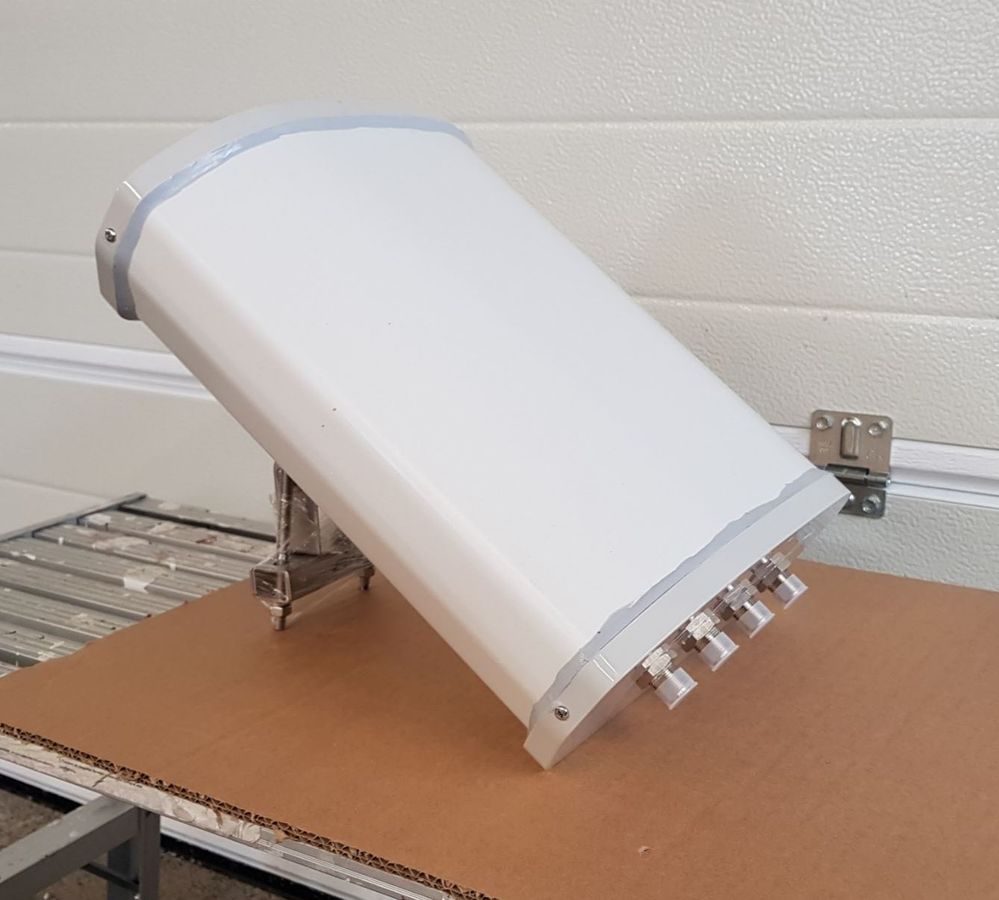

What do you think about my new toy, 4x4 LTE Mimo panel antenna ? I am really looking forward to test it with MR1100 later.





18 Replies

  • Looks great TeeJay74 - first one I've seen - none on the market yet. The question is, how are you going to connect it to the MR1100 when there are only 2 connections for external antennas? Are you going to have to open the MR1100 casing?

    • TeeJay74's avatar
      TeeJay74
      Virtuoso

      Not actually opening, but some drilling etc. There is a plan and hopefully it works. Only time will tell that. For me this is high priority.

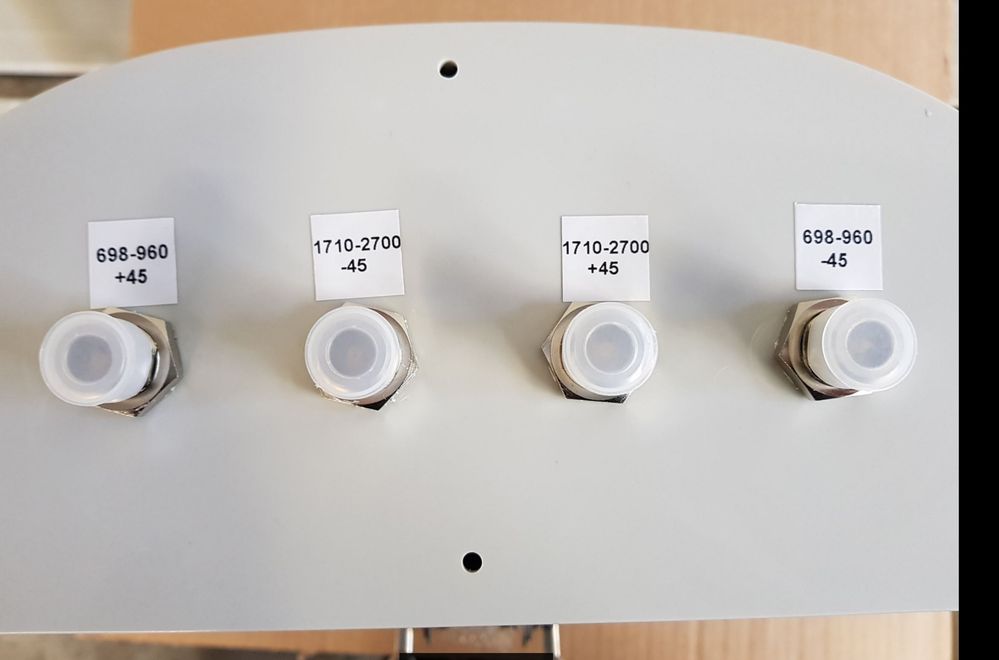

      This antenna model:

      Dawn Communication Co., Ltd.

      698-960/1710-2700MHz XX-Pol Wideband Panel Antenna

      Model: DB-698/2700X-8-65

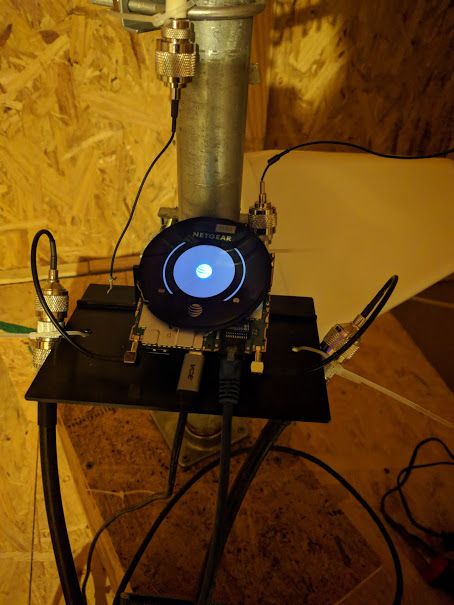

  • We went the 4x4 route a few months back, it is great! Just a little solder and you will do just fine.

    • UK-based's avatar
      UK-based
      Luminary

      Any chance of a closeup photo and an indication of where the 3rd and 4th contacts are made?

    • KarmusDK's avatar
      KarmusDK
      Apprentice

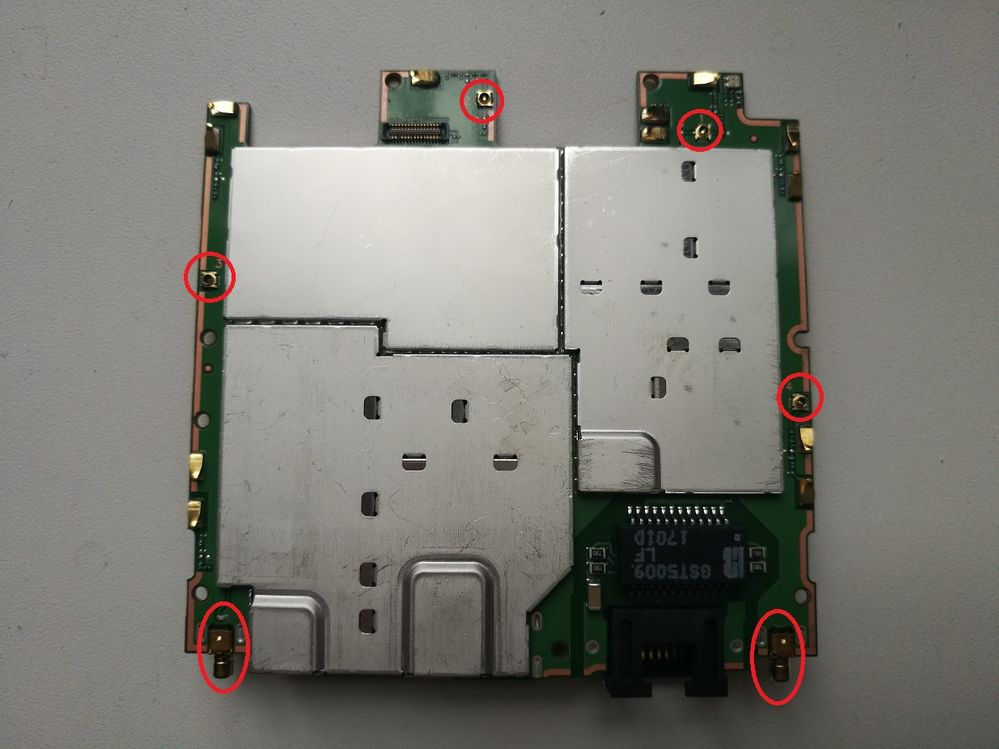

      Wow, that looks amazing! Can you perhaps tell me, which of the 4 extra antenna connectors that can boost the carrier aggregation and what the connector types are? I asked Netgear support, but they say they are proprietary and won't help me further. If it is possible to connect more than 1 MIMO-antenna, I would like to do so.



      Picture from 4pda.ru

      • TeeJay74's avatar
        TeeJay74
        Virtuoso

        Now I feel that I do not want to encourage anyone to do such actions that void device warranty. So keep your devices in one piece and warranty valid. No problem if you know what to do, this can be implemented in style, but exact details are internal information.

  • That's awesome. Where did you get that I can't find it online. Wonder if I could force my modem to 1900mhz with that. I'm using a allelic 698mhz-2700mhz panel in the picture and it switches between 700mhz and 1900mhz and kills my bandwidth
