Forum Discussion

Tsprint2's avatar
Tsprint2
Follower
Feb 06, 2019

Need to extend Hotpot to include 2 ethernet ports

I just moved to a place with no options for internet except Verizon 4g with 4 bars. The network speed is not great for much but good enough for browsing internet and email. I have Arlo that requires an eithernet port so I used my Netgear ex6100 to extend and provide me 1 port. My question is...is there a better option for configuring? I really need the signal to reach 200 feet from the HotSpot and then attach my Arlo master to the extender at that point. Is there a better extender and booster?
Features
Hardware
Mobile Routers

3 Replies

  • nanoman's avatar
    nanoman
    Aspirant
    Feb 08, 2019

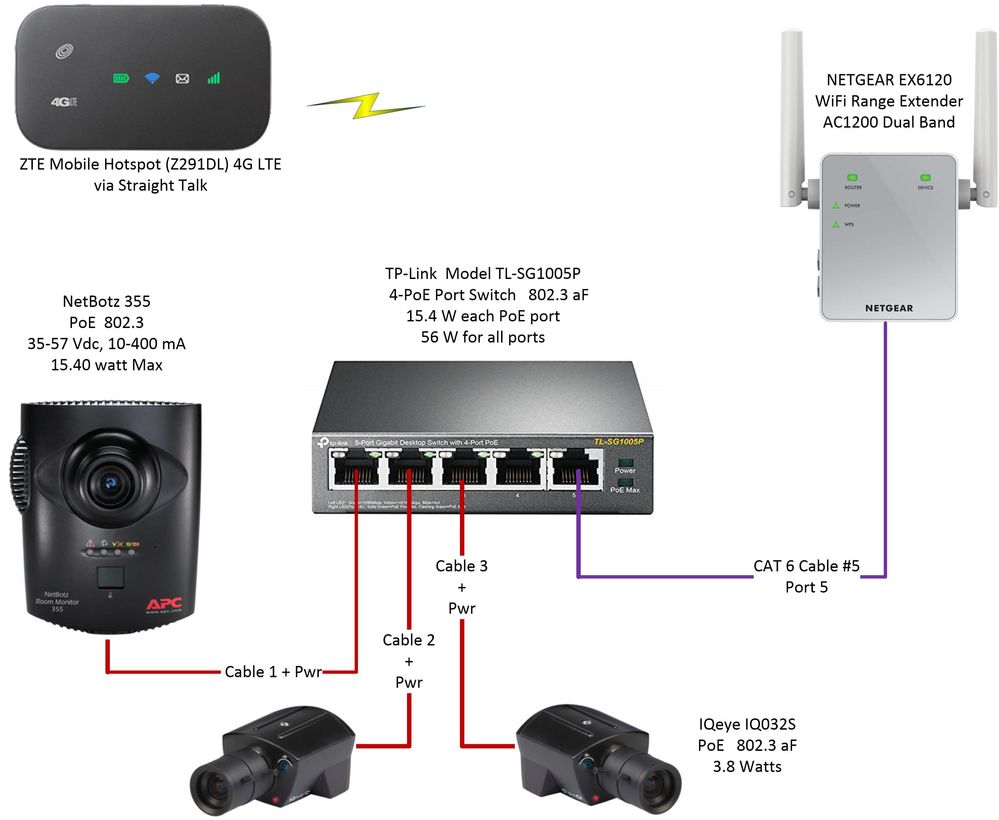

    Hi I have the same need. I connected a switch to the EX6120 but no joy.  See connection layout.  Each of the PoE units is active. I would appreciate any thoughts / comments on how to get this to work. Only the device on port 1 is working.



    Thanks,

    • JSchnee21's avatar
      JSchnee21
      Virtuoso
      Feb 10, 2019

      Get the MR1100 and add a small Ethernet switch (Netgear GS105 or GS108) -- piece of cake.  Note that the DHCP server in the MR110o only supports 20 devices.

      • nanoman's avatar
        nanoman
        Aspirant
        Feb 11, 2019

        Thanks, however your suggestion does not address my issue - I already have a wireless hotspot / router (up to 10 connected devices in my case) that, unfortunately,  does not have an ethernet port. I believe this is a common configuration for many hotspots.



        So, the idea is to use a WIFI extender (with an ethernet port, e.g. Netgear EX6150, EX6100, etc. ) with a multiport switch to provide connectivity to multiple wired ethernet appliances. It seems like it would work seemingly as wired in early post diagram. This is what I am questing help on.



        ASIDE: I am not sure that the MR1100 will work on Straight Talk network (verizon network).
