Forum Discussion
Can't change a port to Tagged (Trunk) for Voice traffic
Help!!!

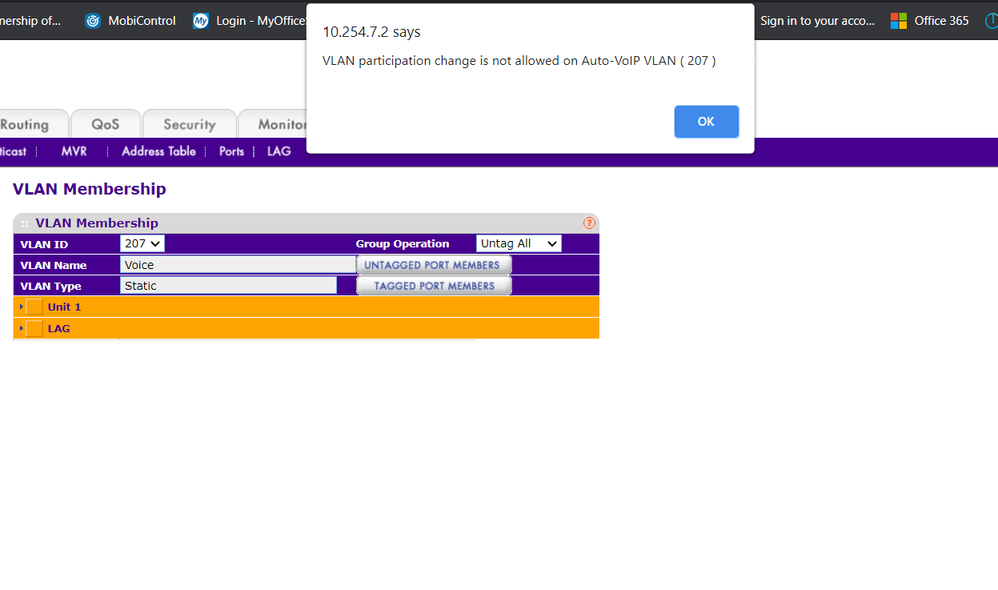

my switch is not passing voice traffic "vlan 207" from our dhcp server which is our firewall . I know our firewall works because is handling out data "vlan 107" ip's addresses. One think I noticed is on the voice vlan the port that connects to the firewall is not tagged. I tried to tagged from the "Vlan Membership" menu but it tells me that "Vlan participation change is not allowed on Auto-Voip Vlan (207)".
I went to "Vlan Trunking Configuration" menu but following the user manual seems a bit confusing to change it.
Thank you.
2 Replies
Welcome to our community! :)
It seems that you already assigned the VLAN 207 to Auto-VoIP. That means that all of the VLAN members of VLAN 207 will be automatically detect the phones that will be connected and will be assigned as Tagged. Please also make sure that the PVID configuration is assigned to your data VLAN.
Regards,
John
NETGEAR Community Team
