GS108v3 and GS105V2 VLAN Setup problem

Hello,

Still the problems with my VLAN setup:

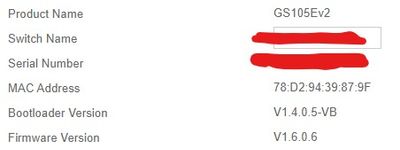

GS105Ev2:

Firmware (V1.6.0.6) :

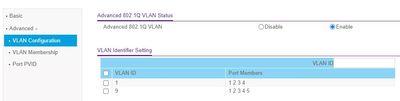

VLAN Configuration (Advanced 802.1Q)

VLAN 1 Port members 1 till 4

VLAN 9 port members 1 till 9

Where vlan 1 is my genric Internet VLAN and 9 my TV VLAN. Port 5 is dedicated for TV network.

VLAN Memberships:

VLAN 1:

Port 1 till 4 Utagged port 5 bot specified

VLAN 9:

Port 1 till 4 Tagged Port 5 Untagged

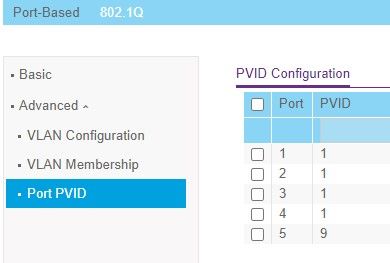

Last PVID settings:

Port 1 till 4 PVID 1 ad port 5 PVID 9

When I connect 2 GS105Ev2 to the uplink ports all works as expected. My TV's get a signal from my providers TV network.

I now have a shortage of ports on some locations and want to replace the GS105Ev2 with GS108Ev3 (newer versions as I just bought them).

Connecting the GS108Ev3 to a GS 105v2 work fine for the internet VLAN on the TV VLAN I do net get the network signal from my provider.

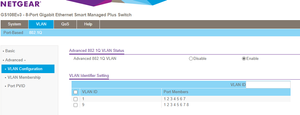

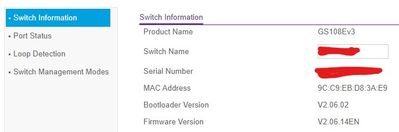

The GS108Ev3 config:

Firmware (V2.05.14EN):

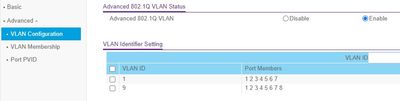

VLANS:

VVLAN 1 Port 1 till 7

VLAN 9 Port 1 till 8

VLAN Membership:

VLAN1:

Port 1 till 7 UnTaged

Port 8 not defined

VLAN9:

Port 1 till 7 Taged

Port 8 Untaged

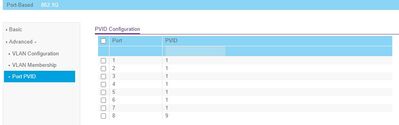

And as wel PVID:

Port 1 till 7 PIVD 1

Port 8 PIVD 9

So all  looks oke configured. On this switches Port 8 (last port) is the TV Vlan. Any one an Idea why this is not working?

I will test later as well with 2 GS108Ev3's I think this will work as well fine.

I have no idea how to troubleshoot this Vlan feature futher.

Stef
