Forum Discussion
James734
Mar 26, 2024Aspirant
GS308EP VLAN Config Assistance

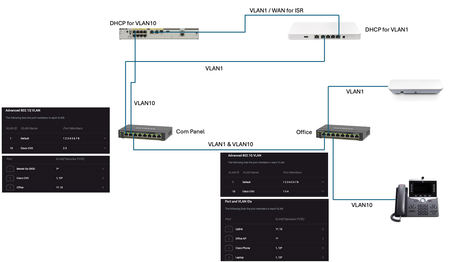

Trying to setup the below and I cannot seem to make this work. I have a Meraki GX50 for all of my home network with AP's. I also have a company provide WFH solution that uses a ISR1100 for a VPN conn...
- Mar 26, 2024I tried the non advanced mode also with a Trunk between the switches and Access ports configured in their respective VLAN. I couldn’t get that work so I tried the advanced mode as referenced in some other posts and docs. That didn’t work either. Though believe I figured that out and was due to the DOT1X on the ISR1100 and no way to authenticate.
James734
Mar 26, 2024Aspirant
I think I figured this out. Was able to login into the ISR1100 and corp has configured DOT1X Port Security, Since I cannot authenticate the switch it's blocking all traffic from that MAC address on the port.
schumaku
Mar 26, 2024Guru - Experienced User
Appears you full ignore the ability to define something like Access Ports (where you need to connect devices only for VLAN 1 or VLAN 10, like the PC and the VoIP device resp. the related infrastructure, and nothing else) and Trunk Ports where all traffic is flowing between the two switches over a trunk, to [T]agged for VLAN 1 and [T]agged for VLAN 10, and nothing else..
- James734Mar 26, 2024AspirantI tried the non advanced mode also with a Trunk between the switches and Access ports configured in their respective VLAN. I couldn’t get that work so I tried the advanced mode as referenced in some other posts and docs. That didn’t work either. Though believe I figured that out and was due to the DOT1X on the ISR1100 and no way to authenticate.
