Inter-vlan routing not working on M5300-28GF3 (GSM7328FSv2) - ProSAFE -switch
Hi, I am new to this community. My company has implemented Netgear switches in a University. The core switch is M5300 and access switches are GS 728 TP -100EUS. The core is connecting to 4 b...
Hi muj_net,
Welcome to the community!
Below is the answer for your two questions:
1) Host in different vlans cannot ping each other
First, confirm the Host has right Gateway and this gateway point to the Core Switch(M5300). If not correct, please check DHCP Server configuration.
Second, confirm Core Switch(M5300) enable global routing. If not, please execute command 'ip routing' in config mode.

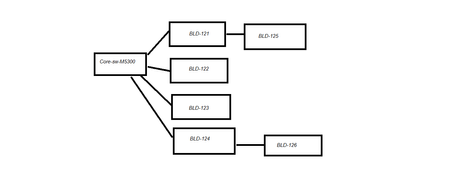

2) Core can connect all the buildings in star connections but cannot connect the extended building.The diagram above can clarify my issue:BLD-126 can ping BLD-124 but cannot acces the core.
Do you mean BLD-125&126 Host cannot get IP address from DHCP Server? If so please check config as below:
[for example: BLD-126 in VLAN126]:
BLD-126 Switch uplink port(connect to BLD-124) should tagged VLAN126
BLD-124 Switch downlink port(connect to BLD-126) and uplink port(connect to Core Switch) should tagged VLAN126
Core Switch downlink port(connect to BLD124) should tagged VLAN126
Then reload BLD-126 Switch and check if it can get IP address from DHCP Server.
Hope it can helps!
Regards,
EricZ
NETGEAR employee
Hi muj_net,
Welcome to the community!
Below is the answer for your two questions:
1) Host in different vlans cannot ping each other
First, confirm the Host has right Gateway and this gateway point to the Core Switch(M5300). If not correct, please check DHCP Server configuration.
Second, confirm Core Switch(M5300) enable global routing. If not, please execute command 'ip routing' in config mode.
2) Core can connect all the buildings in star connections but cannot connect the extended building.The diagram above can clarify my issue:BLD-126 can ping BLD-124 but cannot acces the core.
Do you mean BLD-125&126 Host cannot get IP address from DHCP Server? If so please check config as below:
[for example: BLD-126 in VLAN126]:
BLD-126 Switch uplink port(connect to BLD-124) should tagged VLAN126
BLD-124 Switch downlink port(connect to BLD-126) and uplink port(connect to Core Switch) should tagged VLAN126
Core Switch downlink port(connect to BLD124) should tagged VLAN126
Then reload BLD-126 Switch and check if it can get IP address from DHCP Server.
Hope it can helps!
Regards,
EricZ
NETGEAR employee
Thanks a lot EricZ. I have upgraded the firmware. The problem 2 hostin different vlans canoot ping but connect each other,I have tried remote desktop connection and it works.May be issue with my Windows firewall.
And my second issue is also solved. Actually vlan 126 in Bld 124 was not created at all , Now I have created the Vlan 126 in Bld 124 and tagged it.
Thank you very much.
