Forum Discussion
Is it possible to setup VLAN in this configuration?

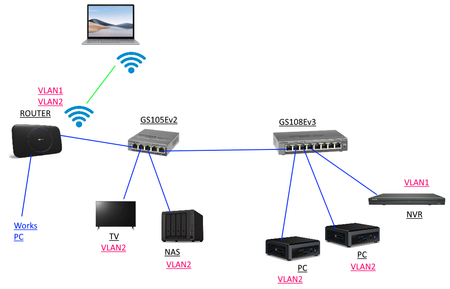

s Hi, I have a GS105Ev2 and GS108Ev3 connected in my home network in the following configuration: and was wondering whether it would be possible to use the VLAN feature to segregate parts of...
,
Based from the topology posted, the ports connecting the GS105Ev2 and GS108Ev3 should be configured as tagged (T) ports with a PVID of 1. The end devices such as PCs and TV should be configured as untagged (U) ports with a PVID of 2.
Let me share the article below and use it as your reference:
How do I setup a VLAN trunk link between two NETGEAR switches?
Regards,
DaneA
NETGEAR Community Team
