Is this correct ? - Link aggregation on three switches = jGS524e v2 x3!!

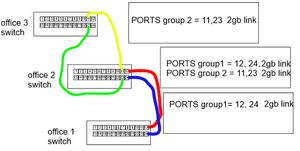

Hi Everyone, Ive attached a picture of what I need to do between 3 office switches to have a 2gb link between each switch, is this correct?, do I need to setup 2 LAG groups on office switch 2 ? or ...
Yes, perfect!
Each LAG connection between two switches must be a dedicated LAG Group, so two groups for each physical network link pair here for example.
Hi is the diagram correct?
Most importantly switch 2 has two lag groups? One joining switch 1 and another separate lag group to join switch 3?
Please confirm this is correct ?
Most importantly switch 2 has two lag groups? One joining switch 1 and another separate lag group to join switch 3?
Please confirm this is correct ?
Yes, perfect!
