MS510TX - Link Traps

I am in need of some guidance, once again, please.

I am used to Netgear Smart Managed Pro switches having the option to turn on Link Traps at the PORT/LAG level under Switching -> Ports -> Port Configuration

I can't locate any similar option to turn on Link Traps on the MS510TX.

How do I get the Traps to display under Monitoring -> Logs -> Trap Logs as right now that particular screen is empty (only Displays... Number of Traps Since Last Reset 0).

Many Thanks,

-kc6108

schumaku
May 14, 2019

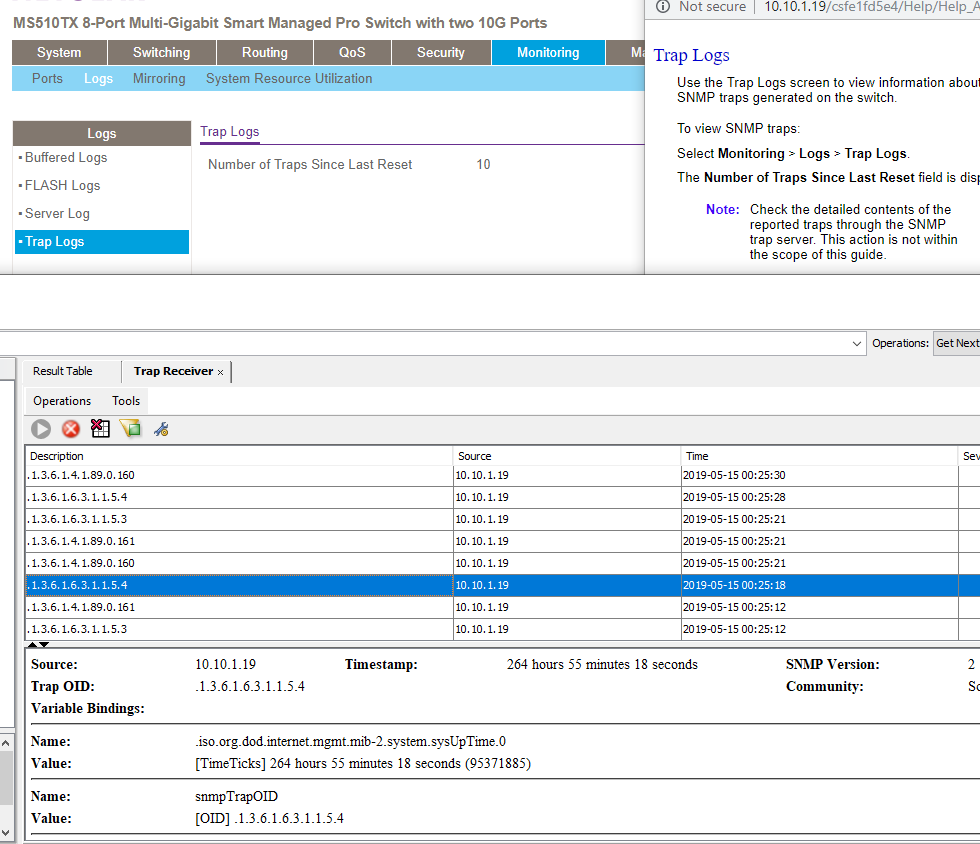

Aehm, no - the MS510TX online help does mainly mention "the number of traps" for the Trap Logs. Granted, a little bit misleading.

Trap Logs

Use the Trap Logs screen to view information about the SNMP traps generated on the switch.

To view SNMP traps:

Select Monitoring > Logs > Trap Logs.

The Number of Traps Since Last Reset field is displayed.

5 Replies

schumaku
Guru - Experienced User
May 14, 2019
Monitoring -> Ports -> Port detailed statistics does show "Link Trap Enabled" for all ports, FWIW
- kc6108
  Luminary
  May 14, 2019
  That is what I am seeing as well... Link Trap is showing as Enabled on all ports on the Monitoring -> Ports -> Port Detailed Statistics screen.

  I must be missing a setting somewhere?
  - schumaku
    Guru - Experienced User
    May 14, 2019
    Aehm, no - the MS510TX online help does mainly mention "the number of traps" for the Trap Logs. Granted, a little bit misleading.

    Trap Logs

    Use the Trap Logs screen to view information about the SNMP traps generated on the switch.

    To view SNMP traps:

    Select Monitoring > Logs > Trap Logs.

    The Number of Traps Since Last Reset field is displayed.
