Need help with vlan setup netgear xs728T prosafe

Need help setting up vlans on 2 netgear switches. Here is my setup.   Fortigate firewall port 24 is connected to port 27 on netgear xs728t The interface "lan" on firewall has sub-interfaces with v...
  • gixxerdaveneo's avatar
    gixxerdaveneo
    Jul 06, 2023

    Solution:

    1. Starting with firewall, have interface "lan" setup with sub-interfaces with vlans (no change here)
    2. Netgear xs728t switch, created vlans and tagged ports 9 for both vlan1&5 and then tagged port 27 for vlan5
      1. port 27 is uplink to firewall
      2. port 9 is link to gs110emx switch(port 10)
    3. Netgear gs110emx switch, created vlans and tagged port 10 for both vlan1&5

    BTW: computer on port 1 on gs110emx is getting DHCP from firewall!!!



    Below are supporting pic

    Firewall "lan" interface



       XS728T Switch



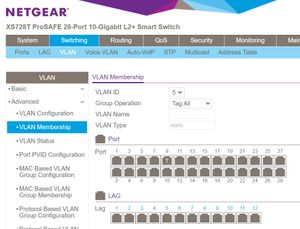

       GS110EMX Switch





gixxerdaveneo's avatar
gixxerdaveneo
Initiate
Jul 06, 2023

Solution:

  1. Starting with firewall, have interface "lan" setup with sub-interfaces with vlans (no change here)
  2. Netgear xs728t switch, created vlans and tagged ports 9 for both vlan1&5 and then tagged port 27 for vlan5
    1. port 27 is uplink to firewall
    2. port 9 is link to gs110emx switch(port 10)
  3. Netgear gs110emx switch, created vlans and tagged port 10 for both vlan1&5

BTW: computer on port 1 on gs110emx is getting DHCP from firewall!!!



Below are supporting pic

Firewall "lan" interface



   XS728T Switch



   GS110EMX Switch
