Newbi help needed with VLAN performance MS108EUP and GS110EMX
Just updated my home network by adding a NETGEAR MS108EUP and GS110EMX so I can have 2 VLAN's connecting my basement and upper floor with both my internet network and the Google fiber network. I thin...
Quick update.
First, thank you for those that offered guidance and help!
After trying to get this working a couple more times I ended up calling Netgear support who also couldn't find anything wrong with my setup or configuration. We concluded the switch was not working correctly and so I ordered a new one and now everything is working as it should, so the MS108EUP was the issue.
I ended up getting a second GS110EMX rather than replacing the MS108EUP with the same switch as I found several other reviews that seemed to have similar issues with that switch, and I don't need the POE feature.
Thanks again!
Mark.
Two switches. Wild guess one in the basement, one in the upper floor.
More wild guessing, one physical network connection between the two switches. Probably 2.5GbE because that's the max the MS108EUP can do.

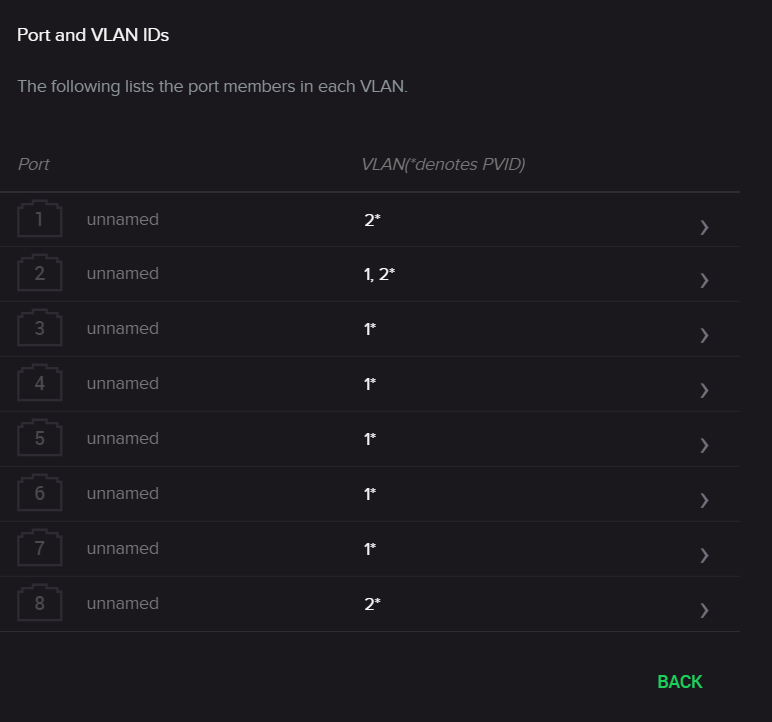

More wild guessing, two VLANs configured, VLAN 1 and VLAN 2. Configured how to the different networks resp. routers resp. PCs.
What makes up VLAN 1 to be the default? Probably using the link with untagged frames (thus default?) for the normal Internet LAN (Gigabit), and some tagged trunk for VLAN 2 for the Google Fiber network LAN?
Definitively confused about the point where you state "and on each switch depending on the port the host device is connected to one of the two networks."
Starting from this:
barrettusa wrote:
As part of my testing on two PC's which are connected one to each VLAN I did a speed test to make sure I was getting the throughput expected. VLAN1 is 1000Mbps and VLAN2 is 2500Mbps on Google Fiber 2000.
What has changed to this?
barrettusa wrote:

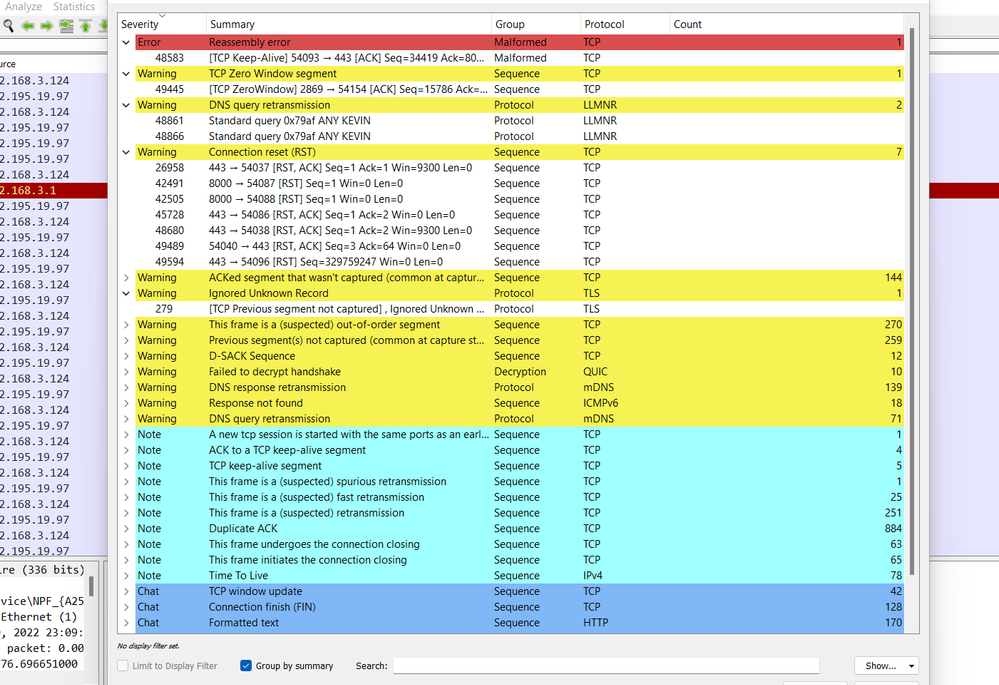

When I do the speed test to Google, I see the throughput on download hit around 700Mbps on the PC on VLAN 1 and 1700Mbps on VLAN2 but after a couple of seconds the test fails with a socket error.
Please put up a list of what you think you have connected and configured.
And why/how should the previous unmanaged GS110MX made this configuration work - considering there are at least two networks, two LAN, two LAN IP subnets , ....?
VLANs don't make connections - Ethernet links (or for the sake fiber links) do. On an Ethernet link, you can operate multiple VLANs which carry traffic or frames, and ensure this traffic is kept independent from the other networks.
By rule of thumb, what I would suggest:
- One physical Ethernet link between the two switches, or in a second stage two Ethernet links in static LAG - the later makes the VLAN trunk config more complex to understand
- The ports connecting to this trunk, configured as [T]agged for each VLAN 1 and 2 ... that makes the trunk carrying both VLANs in tagged frames, for example port #8
- Define multiple access ports on both switches for each of the VLANs 1 and 2, for example
Port 1...3 VLAN 1 [U]ntagged, PVID 1
...
Port 4...6 VLAN 2 [U]ntagged, PVID 2
...
These ports 1..3 on both switches make up network connections (like a cable) for VLAN 1, resp. ports 4..6 on both switches make up network connections (like a cable) for VLAN 2. Like direct connections to each router LAN for example (including each router).
