WAX630 Not Working When LAG Enabled on Unifi Switches
Does anyone know if the WAX630 supports LACP (802.3ad) for LAG? I cannot get LAG to work at all if I enable LAG on any of my Unifi switches (different models) on any of the 3 WAX630 APs I have. P...
Where from do you take assume from your WAX630 should support LACP on a LAG? Neither the WAX630 Data Sheet nor the fine Insight Managed WiFi 6E AXE7800 Tri-band Multi-Gig Access Point Model WAX630E User Manual does mention LACP LAG anywhere.
LACP is an optional extension to IEEE 802.3AD (IEEE 802.3AD-2000), moved to the correct layer years later as IEEE 802.3AX (IEEE 802.1AX-2008), and in no way the one and only default LAG.
Regards,
-Kurt.
Where from do you take assume from your WAX630 should support LACP on a LAG? Neither the WAX630 Data Sheet nor the fine Insight Managed WiFi 6E AXE7800 Tri-band Multi-Gig Access Point Model WAX630E User Manual does mention LACP LAG anywhere.
LACP is an optional extension to IEEE 802.3AD (IEEE 802.3AD-2000), moved to the correct layer years later as IEEE 802.3AX (IEEE 802.1AX-2008), and in no way the one and only default LAG.
Regards,
-Kurt.

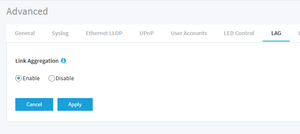

Thanks for the response, yea it looks like just Static LAG is supported from that screenshot. No I wasn't assuming it was supporting LACP, it was more of a question if LACP was supported was all.
