MR60 - MR1100 no internet connection

I have MR60 router with MR1100 providing internet connection thru GSM network.

Every time we have a power outage, my network goes crazy and I believe the issue is with the MR60 communicating with the MR1100. MR1100 WiFi connections to endpoints and access will be fine. It is MR60 - MR1100 which is giving me trouble. I have a hunch the problem is the MR60 WAN/Internet IP is on a different subnet than the MR1100, or that it is not getting an IP assigned by the MR1100.

Currently, I have MR-60 connected to MR1100 using WAN/Internet port out to Internet port in on MR1100. I have amber light on MR60 and no internet connection advisories on all my endpoints. All WiFi signals are good (both MR60 and MR1100). Internet is fine using MR1100 WiFi access.

I have reset both MR60 and MR1100 numerous times and have gone thru new setup numerous times.

Here are my network characteristics:

MR1100 LAN-side gateway IP 192.168.1.1

MR60 mesh network-side subnet: 10.0.0.0/24

Using the MR60 interface on routerlogin.com I have tried to reset the external IP from the MR60 which is hardwired to the MR1100, putting it on the same subnet using static assignment (for example making it 192.168.1.35) but there was still no connectivity between the two.

At my wits end here. Any ideas?

MR60 Mesh Network

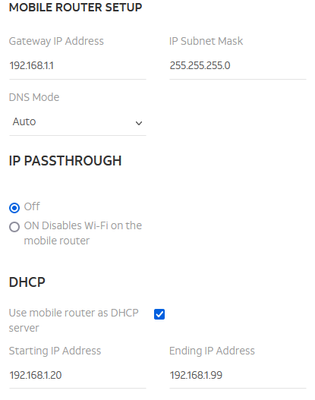

WiFi to MR1100

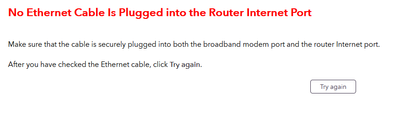

MR60 Internet Tab Warning

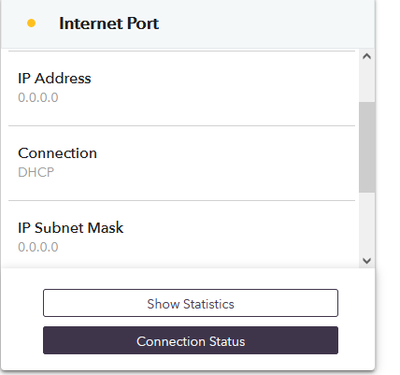

MR60 Settings Advanced - Internet

Does your Internet connection require a login?  NO

Internet IP Address:   GET DYNAMICALLY FROM ISP (note: tried Static, but maybe incorrectly)

DNS:  GET AUTMATICALLY  (note: tried 8.8.8.8)

Router MAC:  USE DEFAULT ADDRESS

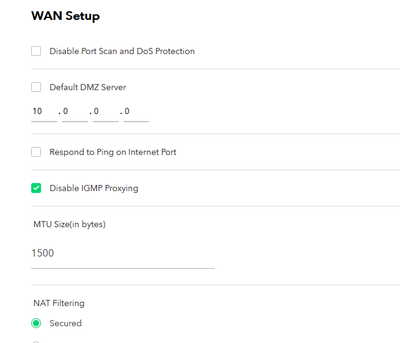

MR60 WAN Settings
