CM1000 Connectivity Issues with MacBook Pro

Question

When trying to connect a new MacBook Pro for my wife, it connects to router(Orbi RBS850) but it keeps throwing codes on the modem. Mind you, ALL other devices work perfectly fine including other MacBook laptops. I do not know what is going on here. Any help is welcomed.

<tabindex=-1>Downstream Bonded Channels</tabindex=-1>

Channel	Lock Status	Modulation	Channel ID	Frequency	Power	SNR / MER	Unerrored Codewords	Correctable Codewords	Uncorrectable Codewords
1	Locked	QAM256	29	141000000 Hz	2.8 dBmV	41.3 dB	164894212	0	0
2	Locked	QAM256	1	735000000 Hz	10.5 dBmV	43.6 dB	168217563	0	0
3	Locked	QAM256	2	741000000 Hz	10.5 dBmV	43.5 dB	168221237	0	0
4	Locked	QAM256	3	747000000 Hz	10.1 dBmV	43.4 dB	168225827	0	0
5	Locked	QAM256	4	753000000 Hz	10.3 dBmV	43.6 dB	168229870	0	0
6	Locked	QAM256	5	759000000 Hz	9.9 dBmV	43.3 dB	168233896	0	0
7	Locked	QAM256	6	765000000 Hz	10.3 dBmV	43.4 dB	168237669	0	0
8	Locked	QAM256	7	771000000 Hz	10.1 dBmV	43.4 dB	168241785	0	0
9	Locked	QAM256	8	777000000 Hz	10.3 dBmV	43.3 dB	168245404	0	0
10	Locked	QAM256	25	117000000 Hz	2.9 dBmV	41.0 dB	164042467	0	0
11	Locked	QAM256	26	123000000 Hz	3.3 dBmV	41.1 dB	164049610	0	0
12	Locked	QAM256	27	129000000 Hz	3.2 dBmV	41.1 dB	164056477	0	0
13	Locked	QAM256	28	135000000 Hz	3.0 dBmV	41.1 dB	164063074	0	0
14	Locked	QAM256	30	147000000 Hz	2.9 dBmV	41.4 dB	164072037	0	0
15	Locked	QAM256	31	153000000 Hz	2.7 dBmV	41.5 dB	164079667	0	0
16	Locked	QAM256	32	159000000 Hz	2.8 dBmV	41.5 dB	164085922	0	0
17	Locked	QAM256	33	165000000 Hz	2.8 dBmV	41.6 dB	164093836	0	0
18	Locked	QAM256	34	171000000 Hz	2.6 dBmV	41.3 dB	164101085	0	0
19	Locked	QAM256	35	177000000 Hz	2.7 dBmV	41.3 dB	164109150	0	0
20	Locked	QAM256	36	183000000 Hz	2.5 dBmV	41.2 dB	164116943	0	0
21	Locked	QAM256	37	189000000 Hz	2.5 dBmV	41.3 dB	164124159	0	0
22	Locked	QAM256	38	195000000 Hz	3.0 dBmV	41.6 dB	164131693	0	0
23	Locked	QAM256	39	201000000 Hz	3.1 dBmV	41.6 dB	164137965	0	0
24	Locked	QAM256	40	207000000 Hz	2.9 dBmV	41.3 dB	164142292	0	0
25	Locked	QAM256	41	213000000 Hz	2.6 dBmV	40.8 dB	168304599	0	0
26	Locked	QAM256	42	219000000 Hz	2.3 dBmV	40.8 dB	168309037	0	0
27	Locked	QAM256	43	225000000 Hz	2.6 dBmV	41.2 dB	168312351	0	0
28	Locked	QAM256	44	231000000 Hz	2.9 dBmV	41.4 dB	168316587	0	0
29	Locked	QAM256	45	237000000 Hz	3.3 dBmV	41.6 dB	168320466	0	0
30	Locked	QAM256	46	243000000 Hz	3.6 dBmV	41.7 dB	167219498	671827	428348
31	Locked	QAM256	47	249000000 Hz	3.8 dBmV	41.8 dB	149156351	1347637	6849618
32	Locked	QAM256	48	255000000 Hz	4.1 dBmV	41.9 dB	168309227	9172	1459

<tabindex=-1>Upstream Bonded Channels</tabindex=-1>

Channel	Lock Status	Modulation	Channel ID	Frequency	Power
1	Locked	ATDMA	1	17400000 Hz	41.3 dBmV
2	Locked	ATDMA	2	23900000 Hz	41.8 dBmV
3	Locked	ATDMA	3	30300000 Hz	41.5 dBmV
4	Locked	ATDMA	4	36700000 Hz	40.5 dBmV
5	Locked	ATDMA	6	12600000 Hz	41.5 dBmV
6	Not Locked	Unknown	0	0 Hz	0.0 dBmV
7	Not Locked	Unknown	0	0 Hz	0.0 dBmV
8	Not Locked	Unknown	0	0 Hz	0.0 dBmV

<tabindex=-1>Downstream OFDM Channels</tabindex=-1>

Channel	Lock Status	Modulation / Profile ID	Channel ID	Frequency	Power	SNR / MER	Active Subcarrier Number Range	Unerrored Codewords	Correctable Codewords	Uncorrectable Codewords
1	Locked	0, 1, 2, 3	159	300000000 Hz	5.6 dBmV	32.0 dB	296 ~ 7895	32811820	22306640	1
2	Locked	0, 1, 2, 3	160	918000000 Hz	12.2 dBmV	41.8 dB	1108 ~ 2987	37491590	5541277	0

<tabindex=-1>Upstream OFDMA Channels</tabindex=-1>

Channel	Lock Status	Modulation / Profile ID	Channel ID	Frequency	Power
1	Not Locked	Unknown	0	0 Hz	0 dBmV
2	Not Locked	Unknown	0	0 Hz	0 dBmV

FURRYe38 · Answer

Power levels are too high on some channels and all over the place:
https://kb.netgear.com/24311/Power-level-guidelines-for-a-NETGEAR-cable-modem-router
&nbsp;

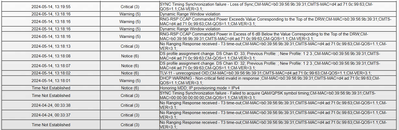

Any Criticals, Errors or Warnings seen in the event logs needs to be reviewed and resolved by the ISP.&nbsp;Indicates a signal issue on the ISP line up to the modem.
&nbsp;
There are come correctables and un-correctables that should be zeros as well.&nbsp;
Have the ISP check the signal and line quality UP to the modem.&nbsp;Be sure the ISP provisions the modem correctly.Be sure there are no coax cable line splitters in the between the modem and ISP service box.&nbsp;Be sure your using good quality RG6 coax cable up to the modem.&nbsp;Start with removing any amplifiers, signal attenuators, or splitters from the coax.From there check the line for kinks, damage, moisture in the line.Check the connectors for improperly made ends, foil touching the copper coax line, loose connections, bad/old/cheap connectors, or corroded connections. Replace them if you do.Be sure to power OFF the modem for 1 minute then back ON.https://community.netgear.com/t5/Cable-Modems-Routers/General-info-and-Troubleshooting-for-Cable-Modems/m-p/1530376#M12853https://kb.netgear.com/24311/Power-level-guidelines-for-a-NETGEAR-cable-modem-routerhttps://www.duckware.com/tech/solving-intermittent-cable-modem-issues.htmlhttps://highspeed.tips/docsis-events/
&nbsp;
Be sure your using a good quality LAN cable between the modem and router. CAT6A STP is recommended.
&nbsp;
What FW is loaded on the RBR850 router?&nbsp;
&nbsp;
If other devices are working with the system sans this one Mac Book Pro, then you should contact Apple about this device.

AndrewI · Answer

FW on Orbi is 4.6.14.3&nbsp;Would a knew modem fix anything or have signal checked on the incoming line first?

FURRYe38 · Answer

The ISP needs to check signal first.
&nbsp;
Also Orbi has newer FW:
https://community.netgear.com/t5/Orbi-WIFI-6-AX-AND-Wi-Fi-6E-AXE/New-RBR850-RBS850-Firmware-Version-7-2-6-31-Released/td-p/2372886/jump-to/first-unread-message
