Forum Discussion

enciberpangel's avatar
enciberpangel
Aspirant
Apr 10, 2022

CM1200 Modem - Drops In & Out & Slows Down (Suddenlink)

Hi all, This is my first time owning my own modem and router and I'm still attempting to learn and navigate my way through all the terminology and specs. I'm in need of some serious help though beca...
enciberpangel's avatar
enciberpangel
Aspirant
Apr 11, 2022

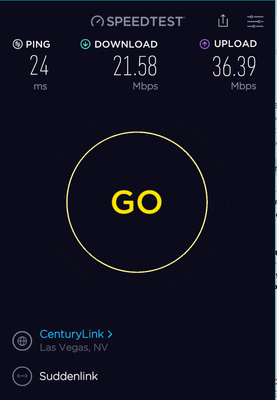

Here's the cable connection page and a screenshot of a speedtest... should be 1gb .. not even gettign 25Mbps right now



Frequency start Value
This field below allows you to modify the frequency the cable modem start with its scan during initialization and registration. Enter the new start frequency and restart the cable modem for it to take effect.
Starting Frequency


Startup Procedure

ProcedureStatusComment
Acquire Downstream Channel795000000 HzLocked
Connectivity StateOKOperational
Boot StateOKOperational
SecurityEnabledBPI+
IP Provisioning ModeHonor MDDhonorMdd(4)


Downstream Bonded Channels (Partial Service)

ChannelLock StatusModulationChannel IDFrequencyPowerSNRCorrectablesUncorrectables
1LockedQAM2561555000000 Hz8.9 dBmV42 dB299211
2LockedQAM2562561000000 Hz9 dBmV42 dB397205
3LockedQAM2563567000000 Hz9.2 dBmV42 dB274195
4LockedQAM2564573000000 Hz9.5 dBmV42.2 dB290112
5LockedQAM2565579000000 Hz9.6 dBmV42.1 dB12262
6LockedQAM2566585000000 Hz9.4 dBmV42.1 dB12492
7LockedQAM2567591000000 Hz9.6 dBmV42.4 dB21555
8LockedQAM2568597000000 Hz9.6 dBmV42.4 dB19791
9LockedQAM2569603000000 Hz9.7 dBmV42.5 dB11938
10LockedQAM25610609000000 Hz9.5 dBmV42.7 dB7327
11LockedQAM25611615000000 Hz9.3 dBmV42.7 dB5431
12LockedQAM25612621000000 Hz9.1 dBmV42.5 dB5229
13LockedQAM25613627000000 Hz9.1 dBmV42.5 dB3933
14LockedQAM25614633000000 Hz9.2 dBmV42.5 dB5829
15LockedQAM25615639000000 Hz9.3 dBmV42.5 dB5631
16LockedQAM25616645000000 Hz9.4 dBmV42.6 dB9630
17LockedQAM25617651000000 Hz9.5 dBmV42.5 dB9935
18LockedQAM25618657000000 Hz9.5 dBmV42.4 dB9641
19LockedQAM25619663000000 Hz9.8 dBmV42.4 dB8858
20LockedQAM25620669000000 Hz9.5 dBmV42.3 dB15073
21LockedQAM25621675000000 Hz9.1 dBmV41.8 dB14781
22LockedQAM25622681000000 Hz8.6 dBmV42 dB367149
23LockedQAM25623687000000 Hz8 dBmV41.8 dB188124
24LockedQAM25624693000000 Hz7.2 dBmV41.6 dB605361
25LockedQAM25625699000000 Hz6.6 dBmV41.6 dB478262
26LockedQAM25626705000000 Hz5.8 dBmV41.3 dB11101058
27LockedQAM25627711000000 Hz4.3 dBmV40.8 dB12871215
28LockedQAM25628717000000 Hz1.8 dBmV39.3 dB30303925
29LockedQAM25629723000000 Hz-3.5 dBmV34.8 dB785611239
30Not LockedUnknown00 Hz0.0 dBmV0.0 dB00
31LockedQAM25632741000000 Hz0.2 dBmV37.8 dB335157573061795
32Not LockedUnknown00 Hz0.0 dBmV0.0 dB00


Upstream Bonded Channels

ChannelLock StatusUS Channel TypeChannel IDSymbol RateFrequencyPower
1LockedATDMA175120 Ksym/sec37800000 Hz47 dBmV
2LockedATDMA185120 Ksym/sec31000000 Hz47 dBmV
3LockedATDMA195120 Ksym/sec24200000 Hz45.8 dBmV
4LockedATDMA205120 Ksym/sec17400000 Hz44.5 dBmV
5Not LockedUnknown00 Ksym/sec0 Hz0.0 dBmV
6Not LockedUnknown00 Ksym/sec0 Hz0.0 dBmV
7Not LockedUnknown00 Ksym/sec0 Hz0.0 dBmV
8Not LockedUnknown00 Ksym/sec0 Hz0.0 dBmV


Downstream OFDM Channels

ChannelLock
Status		Modulation /
Profile ID		Channel
ID		FrequencyPowerSNR /
MER		Active Subcarrier
Number Range		Unerrored
Codewords		Correctable
Codewords		Uncorrectable
Codewords
1Locked0 ,1 ,233795000000 Hz7.5 dBmV42.6 dB1588 ~ 250715653336410489825010861
2Not Locked000 Hz0 dBmV0.0 dB0 ~ 4095000


Upstream OFDMA Channels

ChannelLock StatusModulation / Profile IDChannel IDFrequencyPower
1Not Locked000 Hz0 dBmV
2Not Locked000 Hz0 dBmV


Extended Upstream Transmit PowerEnable Extended Upstream Transmit Power



Current System Time:Mon Apr 11 15:17:43 2022System Up Time:06:54:30
