Connecting two networks, R7000 and Cox TECHNICOLOR CGM4331COM

Hello,

For some reason I ended up having two networks because the signal was too weak and I was missing a hard wire connectivity. Now I would like to connect these two networks, Do I need hardware or can I setup some kind of bridge?
I want to use the printer, and access some database or storage.

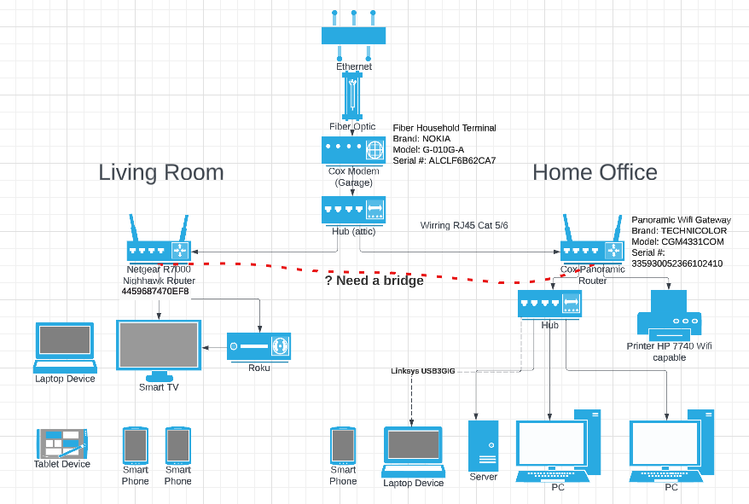

Bellow is the curent diagram. Thank you very much.





1 Reply

  • FURRYe38's avatar
    FURRYe38
    Guru - Experienced User
    Apr 11, 2023
    Copy LinkReport

    Remove the Technicolor router and install a 1GB LAN switch here or put in place a wireless AP in AP mode configuration which some have LAN ports in back. Use the R7000 as the main host router. Connect everything to the R7000 router.
