Forum Discussion
Solved
Machine not seen on peer to peer home network?
Model R7300DST (AC 1900)
4 computers:
3 laptops Win10 (Lenovo T61 Pro, P50 Pro, Dell Home)
1 desktop Win7Home
Problem: The T61 doesn't see anyone and no one sees the T61
Diagnostics:

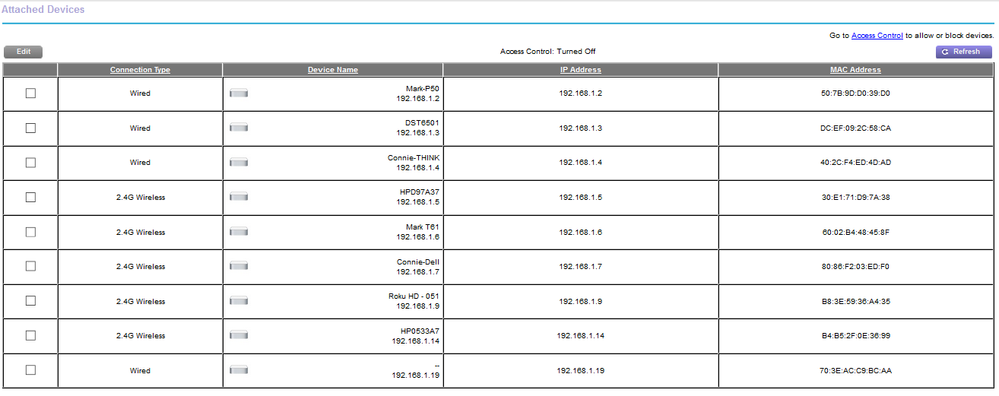

1. Router Connected Devices sees IP 198.168.1.6
2. IP config /all issued on the T61 sees IPv4 192.168.0.10
3. Advanced IP Scanner sees 5 IP address .6, .8, 10, .11 and .12
Earlier this morning the router's Connected Devices saw the same 5 IP addresses as IP Scanner. When I turned off the security chip in the BIOS the router then just displayed .6
Suggestions?
Mark
Resolved.
I even hate to admit it but the T61 (my old laptop before my current) was still plugged into the CL modem that is bridged to the Nighthawk. I plugged it in to the router and now the T61 sees all and is seen by all.
Thanks,
Mark
3 Replies
> 1. Router Connected Devices sees IP 198.168.1.6
What's the IP address of the router (LAN interface)? (ADVANCED)

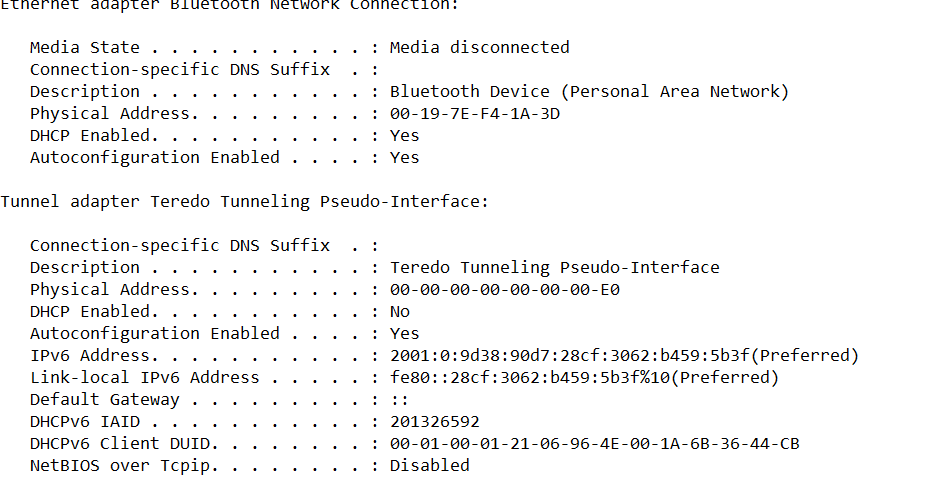

> 2. IP config /all issued on the T61 sees IPv4 192.168.0.10
198.168.1.x and 192.168.0.x are (normally) different subnets.
> 3. Advanced IP Scanner sees ...
And what are those IP addresses?
> Suggestions?
Make sure that all these computers have Local Area Connection Status
> Local Area Connection Properties > Internet Protocol Version 4

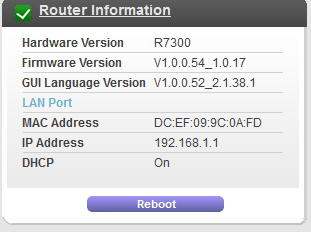

(TCP/IPv4) Properties thing says "Obtain an IP address automatically"?1. I'm attaching a screenshot of what I believe to be the LAN IP.
2. If problem don't know what to do.

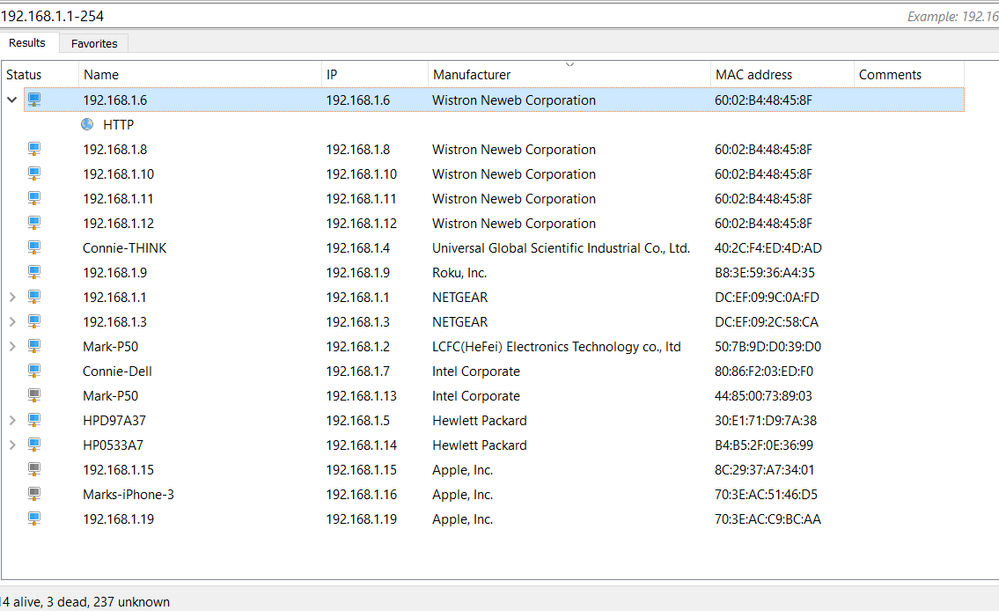

3. In my first post, the second screenshot, the 5 IP addresses associated with Wistron Corporation
4. YES Internet Protocol Version 4 (TCP/IPv4) is checked off.

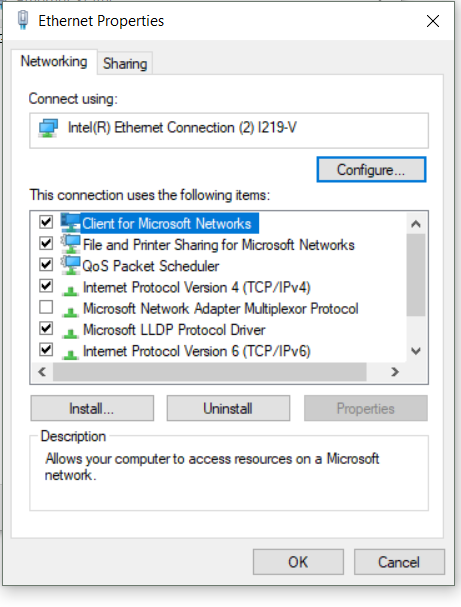

However, the Properties tab says zip about "Obtain an IP address automatically". Where are you seeing this? This is the what I'm looking at:
Resolved.
I even hate to admit it but the T61 (my old laptop before my current) was still plugged into the CL modem that is bridged to the Nighthawk. I plugged it in to the router and now the T61 sees all and is seen by all.
Thanks,
Mark
