Nighthawk X6 R8000
I was trying to set up a ssh server that is able to allow me to access it remotely.
First, I did port forwarding for my server that has a static address:192.168.1.6.

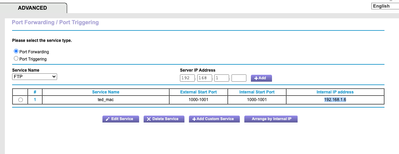

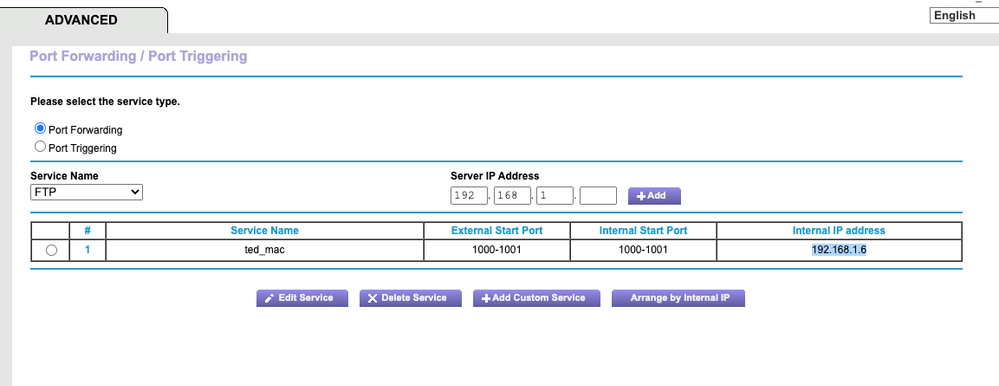

Above is the setting, when I want to access it through public network, it will show following message;
> [...] so if you guys cannot see pictures that I posted, I won't post
> anymore.Your port-forwarding rule is now visible. I doubt that it's correct.
Why two ports ("1000-1001") for SSH? Why an internal port other than
22?> [...] I assigned an static IP address for it in my router [...]
Terminology: A "static" address is configured on the device itself.
What you configure on a (DHCP server on a) router is a reserved dynamic
address, not a static address. Either one should fix the address of a
device, but some implications are different.> [...] I've turned on the 'Remote Login' in 'Sharing' setting and
> allowed 'All users' to access.Not related. I'd disable it, unless you _really_ want it enabled.
> [...] I just tried to enter 'ssh <myserver_name>@119.74.57.xxx -p
> <port_of_my_server>' [...]I don't care if you hide some of your external/public IP address
("xxx"), but "-p <port_of_my_server>" is a waste of everyone's time.
What is it? "-p 22"? "-p 1000"? "-p 1001"? Other?You've already showed your port numbers. Which part of "actual
actions (commands)" was unclear?> [...] "ssh: connect to host 119.74.57.xxx port xxxx: Connection
> refused"I'd expect that. Almost certainly, your SSH server is listening on
port 22, not anything in the range "1000-1001". When you try to talk to
port 1000 (or 1001) on your router, then, with that port-forwarding
rule, the router will forward that message to port 1000 (or 1001) at
"192.168.1.6", where no one is listening.
> > https://community.netgear.com/t5/x/x/m-p/1859106
>
> Did you do any of the tests there? Answer any more questions?Still wondering. Another thread which goes through the same set of
"usual problems", and includes an example of a better port-forwarding
rule for SSH:https://community.netgear.com/t5/x/x/m-p/1836366
(Note: External port "2022" is not required. Internal port "22" _is_
required, if your SSH server is listening at that port, which is very
likely.)
5 Replies
> Above is the setting, [...]
I can't (yet) see your picture. In-line images must be approved by
a moderator before others can see them. The time required varies.
Attachments have no such limitation. Of course, attachments have their
own one-per-message limitation. Copy+paste (of plain text) is your
friend.> [...] when I want to access it through public network, it will show
> following message;Copy+paste (of more than no plain text) is your friend. Reading your
own post after you post it can be helpful, too.For the usual problems with port forwarding, see:
but when I tried to connect to this server through my public IP, which is 119.74.57.xxx, the terminal will reject me and say: "ssh: connect to host 119.74.57.xxx port 1000: Connection refused"
> [...] when I tried to connect to this server [...]
"tried to connect" _how_, exactly? From where? As usual, showing
actual actions (commands) with their actual results (error messages, LED
indicators, ...) can be more helpful than vague descriptions or
interpretations."Connection refused" normally means that the client device can
contact the server system (your router), but no one is listening at the
specified port (1000?).> [...] my public IP, which is [...]
Ok. That looks like a real public address. Now, what's the IP
address of the WAN/Internet interface of your R8000?
ADVANCED > ADVANCED Home : Internet Port : Internet IP Address> I can't (yet) see your picture. [...]
Still true. True for the new picture, too.
> https://community.netgear.com/t5/x/x/m-p/1859106Did you do any of the tests there? Answer any more questions?
