Darth_Blackcat
Jan 30, 2025Aspirant
RS700 2.5gbps WAN internet but only getting 1gbps on LAN5
Been scratching my head to figure out this bottleneck.
My WAN shows 2.5 per the router settings being detected. I have my main computer on LAN5 since this is a 10gbps and shows 2.5 in the attached image. I included the speed test from the router directly, which shows 2300mbps down with over 100mbps up, which matches my connection with Cox.
When I run a speed test on my computer connected to LAN5, it stops at 1gbps. The Ethernet controller per the attached image shows it detects 2.5.
Any other thoughts on what I should check or do?
Found the root cause.

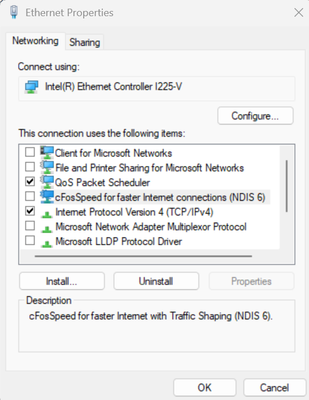

Within my Ethernet controller adapter settings, I found "cFosSpeed for faster Internet connections (NDIS 6) and had it disabled. As soon as I disabled it, I could get my full 2.5 GB speed. This was the root cause for my bottleneck keeping the connection at 1GB.
5 Replies
What speeds do you see directly connected to the ISP modem or ONT with the PC?
Do other PC exhibit same thing?
What Firmware version is currently loaded?
What is the Mfr and model# of the Internet Service Providers modem/ONT the NG router is connected too?
Be sure your using a good quality LAN cable between the modem and router. CAT6A STP is recommended.Is Protection Engine enabled on the router under advanced tab/security?
- Darth_BlackcatAspirant
Hi,
What speeds do you see directly connected to the ISP modem or ONT with the PC?
I see 2300mbps down and 125mbps upload when connected from ISP modem directly to the PC.
Do other PC exhibit same thing? Yes duplicates the same issue connected to the RS700 10GB LAN port. Other ports not tested as I already well aware they are 1GB ports only.
What Firmware version is currently loaded? v1.0.7.96_2.0.96
What is the Mfr and model# of the Internet Service Providers modem/ONT the NG router is connected too? Modem was purchased by myself not provided from my ISP Cox. Modem is a Netgear Nighthawk CM2000.
Be sure your using a good quality LAN cable between the modem and router. CAT6A STP is recommended.I am it is a CAT7
Is Protection Engine enabled on the router under advanced tab/security?
There is no option for Protection Engine listed in the router admin portal. Even under router information, there is no indication this setting is enabled or disabled.
Also to add the primary computer in question as well as another one tested is an Gigabyte X670E Aorus Master that has the 2.5GB LAN port.
- DarrenMSr. NETGEAR Moderator
https://www.downloads.netgear.com/files/GDC/RS700S/RS700_UM_EN.pdf
You may want to check out page 37 in the manual to set up multi-gigabit Internet with Internet port aggregation.
Thanks
DarrenM
