ReadyNAS 104 Replacing the disk with a larger one
Hello, I have a ReadyNAS 104 with four drives (2TB, 2TB, 12TB, 6TB) set up as spare JBOD. I am running out of space on the drives. How do I change the disk to a larger one? Regards Robert
RobertPoland wrote:I have a ReadyNAS 104 with four drives (2TB, 2TB, 12TB, 6TB) set up as spare JBOD.
Spare JBOD????
Assuming you meant 4 JBOD volumes, then you need to
- back up the disk you want to replace
- delete the volume on it
- hot-insert the replacement drive
- create a new volume
- configure the shares, any backup jobs, etc again
- restore the files from the backup.
If the disk holds the primary volume, then be careful to back up the home folders if you use them. Perhaps also uninstall any apps, and reinstall them when done.
RobertPoland wrote:I have a ReadyNAS 104 with four drives (2TB, 2TB, 12TB, 6TB) set up as spare JBOD.
Spare JBOD????
Assuming you meant 4 JBOD volumes, then you need to
- back up the disk you want to replace
- delete the volume on it
- hot-insert the replacement drive
- create a new volume
- configure the shares, any backup jobs, etc again
- restore the files from the backup.
If the disk holds the primary volume, then be careful to back up the home folders if you use them. Perhaps also uninstall any apps, and reinstall them when done.
Yes, a backup JBOD, because I have a lot of irrelevant data.
I understand that make a copy by plugging in the drive through, for example, a USB controller and running a copy job?
This is terribly slow but can be done.Thank you for your reply.
RobertPoland wrote:
Yes, a backup JBOD, because I have a lot of irrelevant data.
"a backup JBOD"???
- Can you give us more details on how many volumes you have, and what RAID modes they use?
- Also, are you upgrading a disk that holds a JBOD volume?
RobertPoland wrote:
I understand that make a copy by plugging in the drive through, for example, a USB controller and running a copy job?
That is one way. Another is to connect a USB drive to a PC, and copy over the network.
In general, that's one of the downsides of using JBOD or RAID-0.
I meant the spareJBOD

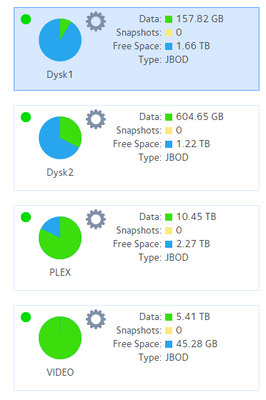

my system looks like this:
and for a start I would like to replace Disk 2 and Video
