RN102 - Rebuilding after disc change - md1 on 1 drive only

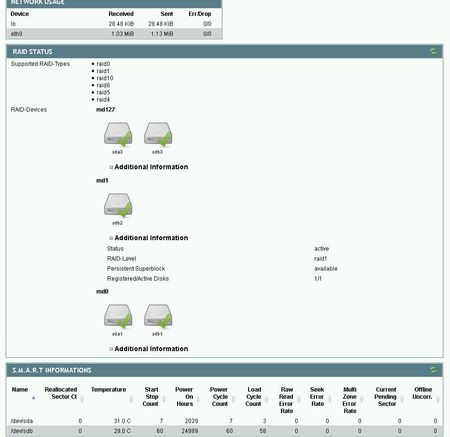

Hello, after hdd change in RN102 Unit (FW 6.9.3, 2x WD RED 2TB) Nas says all is OK. But when i look in PHPsysinfo i see this: md127 RAID1 (2 disc) - OK md0 RAID1 (2 disc) - OK md1 RAID1 (1dis...
This should be fixed now.
MD1 is the swap partition, so I don't think it's all that critical.
Hopefully mdgm-ntgr will chime in.
This should be easy to fix via SSH.
You'd need to start by checking a few things# cat /proc/partitions
# cat /proc/mdstatThanks mdgm-ntgr
# cat /proc/partitions
31 0 1536 mtdblock0 31 1 512 mtdblock1 31 2 6144 mtdblock2 31 3 4096 mtdblock3 31 4 118784 mtdblock4 8 0 1953514584 sda 8 1 4194304 sda1 8 3 1948793912 sda3 8 16 1953514584 sdb 8 17 4194304 sdb1 8 18 524288 sdb2 8 19 1948793912 sdb3 9 0 4190208 md0 9 1 523712 md1 9 127 1948662784 md127
cat /proc/mdstat
Personalities : [raid0] [raid1] [raid10] [raid6] [raid5] [raid4] md127 : active raid1 sda3[2] sdb3[1] 1948662784 blocks super 1.2 [2/2] [UU] md1 : active raid1 sdb2[0] 523712 blocks super 1.2 [1/1] [U] md0 : active raid1 sda1[2] sdb1[1] 4190208 blocks super 1.2 [2/2] [UU] unused devices: <none>There's no sda2, so for some reason the partition for swap wasn't created.
Did you try a reboot?
