RN104 "No Volume Exists" error

I use My RN104 NAS as primary network storage.

It has four 4TB drives (originally x2 but an additional pair was added ~4 months ago).



During the last days, the storage was not accessible over the network. The device exists and appears healthy but the admin page indicates "no volume exists".



I would like some advice or support to recommend which sequence of actions I should follow in order to maximise my chances to recover my data ,and then to continue to use the device if possible.



I am prepared to pay a support fee, I tried to do this however the Netgear site indicates my product is no longer supported.

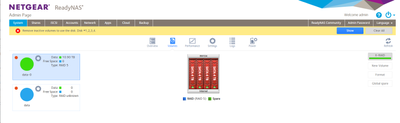

When I access my device, the admin page appears as follows:





The disk status looks healthy (ATA Error=0) for 3 disks but the disk in slot 2 shows ATA Error=13



I have downloaded the logs (as zip file) and will transfer theses as required.



Kind Regards,

Dominic



4 Replies

Replies have been turned off for this discussion

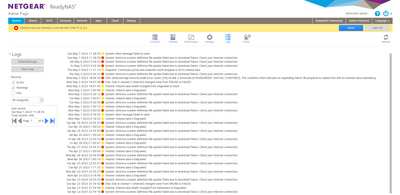

  • See below an extract of the error log





    ...and the key messages summarised here:



    Sun Apr 23 2023 21:54:54

    Disk: Disk in channel 1 (Internal) changed state from ONLINE to FAILED.
    Mon Apr 24 2023 4:18:46

    Volume: Volume data is Degraded.
    Wed May 3 2023 18:07:45

    Volume: Volume data health changed from Degraded to Dead
    Wed May 3 2023 18:07:46

    Disk: Disk in channel 2 (Internal) changed state from ONLINE to FAILED.
    Wed May 3 2023 18:08:29

    Disk: Detected high uncorrectable error count: [56] on disk 2 (Internal) [ST4000VN000-1H4168, Z300TWD3]. This condition often indicates an impending failure. Be prepared to replace this disk to maintain data redundancy





    • StephenB's avatar
      StephenB
      Guru - Experienced User

      Your log shows two disk failures (one on April 23, the second on May 3rd).  RAID-5 can handle one failed disk, but not two.



      Do you have a backup of the data?

      • domg22's avatar
        domg22
        Aspirant

        Hi StephenB,

        Thank you for your reply.



        Indeed it seems I have experienced two failures, with just over one week interval between.

        I have no backup of the data.



        Before the errors, I believe I had an x-raid configuration with 4x 4TB drives. The first error occurred on slot1, the original data drive. The final error occurred on slot2 (the parity drive).

        I believe my total data usage was approx 2-3TB (i.e not exceeding the size of one physical drive). I think it is unlikely that any files were written to the volume during the time interval between the two failures.



        Currently I am considering to mount all 4x SATA drives to a Windows PC and then to attempt to recover the volume using software such as:

        "Hetman Raid recovery 2.4" or "ReclaiMe"



        If you have any advice or recommendations before starting, it would be very welcome!



        Kind Regards,

        domg22
