Forum Discussion
I need the antenna port size on the board Nighthawk M1(mr1100)US model to attach 4 externals
Hello,
I would like to know the type of connectors to the numbered(1-4) antennas on the board of the device. I am attaching external antennae and need this size. I have several u.fl but they are larger.
4 Replies
I assume they are w.fl but I would like confirmation before I commit to new antenna whips
They should be TS9 ports on the
https://kb.netgear.com/23901/External-Antennas-for-AirCard-products
DarrenM

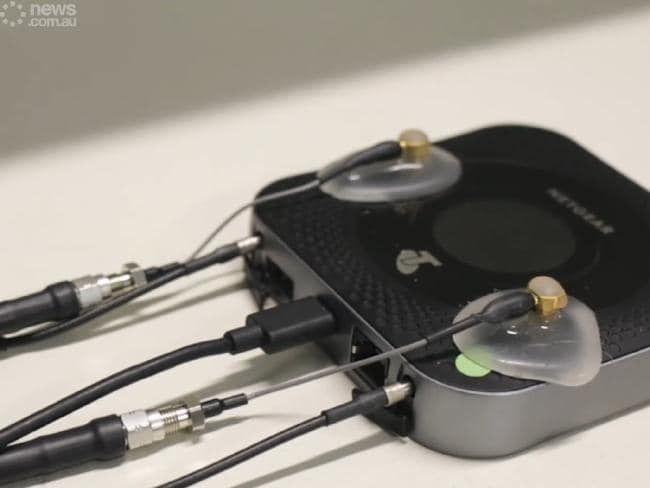

The antenna ports are proprietary and Netgear technical support won't tell you. Some Russians have indicated that the connectors are Hirose MS156, but they are a little bigger and won't fit stable, so you would have to press the pin down inside the socket and glue them to the board, like the Telstra lab testers did:
