Am I doing it right? (VLan configuration)

Hello Community,

I have an Event not long from now and no opportunity to test my switch setup beforehand.

I need the following configuration:

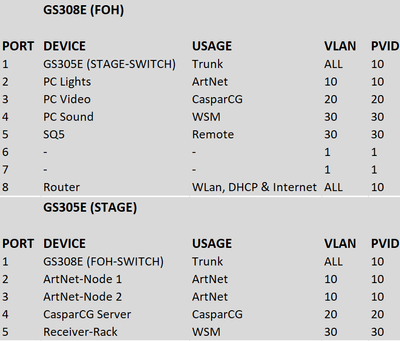

[Excel-Sheet]

Spoiler

My questions:

1. Am I choosing the correct PVIDs and VLans?

2. DO all VLans have Internet Access?
3.
3. Am I doing the correct configurations on the switches:

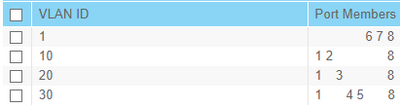

[GS308E]

Spoiler

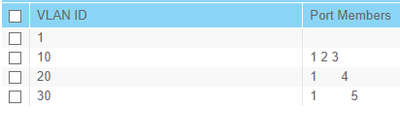

[GS305E]

Spoiler

If a Port is in a VLan its...

- untagged, if its not the Trunk Link

- tagged, if its the Trunk Link

Hope somebody can see clear in this mess!

Thanks in advance,

Erstaccount.

300 Series SOHO Plus (GS308E)
300 Series SOHO Plus (GS305E)
