XS716T100NES Can we disable HTTP
Is there a way via CLI or GUI to disable HTTP from listening?. We would like to lock down the switch where only the ports we are using are open.
Hi MWCLOUD
Thanks for asking. No, there is no way to disable Management CPU (Web GUI access via HTTP) on our XS716T 16-port 10G Smart Managed Pro switch. In fact, the per-port lock down is not very common. But Smart Managed switches don't offer management access control.
Instead, Fully Managed switches provide either Out of band management (OOB - you can deactivate inband CPU management access, and only access the switch CPU for GUI, telnet etc. via the 1G service port - this is useful if you have a separate management network); or Management ACLs for protecting inband access (for instance, restricting HTTP GUI access to certain IP addresses or subnets, restricting Telnet to certain other IP addresses, etc.).

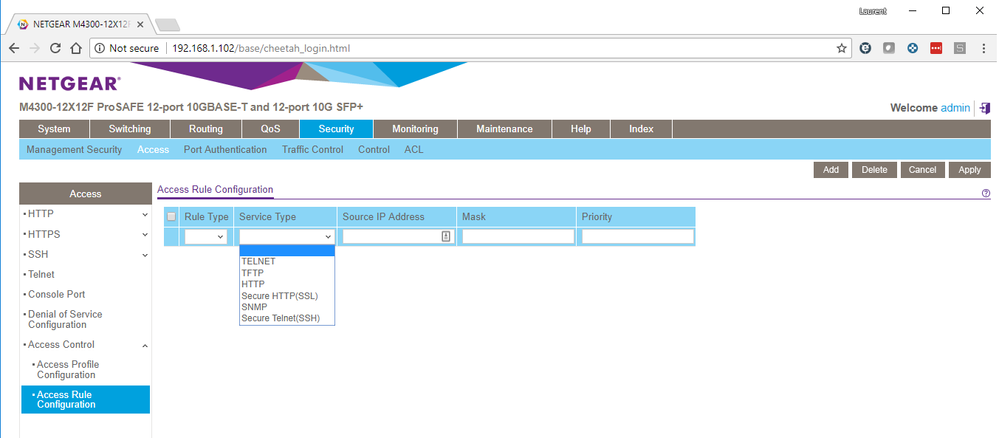

If you require these features, you should look at our M4300 series. They offer both OOB management and Management ACLs:
Regards,
7 Replies
Hi MWCLOUD
Thanks for asking. No, there is no way to disable Management CPU (Web GUI access via HTTP) on our XS716T 16-port 10G Smart Managed Pro switch. In fact, the per-port lock down is not very common. But Smart Managed switches don't offer management access control.
Instead, Fully Managed switches provide either Out of band management (OOB - you can deactivate inband CPU management access, and only access the switch CPU for GUI, telnet etc. via the 1G service port - this is useful if you have a separate management network); or Management ACLs for protecting inband access (for instance, restricting HTTP GUI access to certain IP addresses or subnets, restricting Telnet to certain other IP addresses, etc.).
If you require these features, you should look at our M4300 series. They offer both OOB management and Management ACLs:
Regards,
Hi LaurentMa,

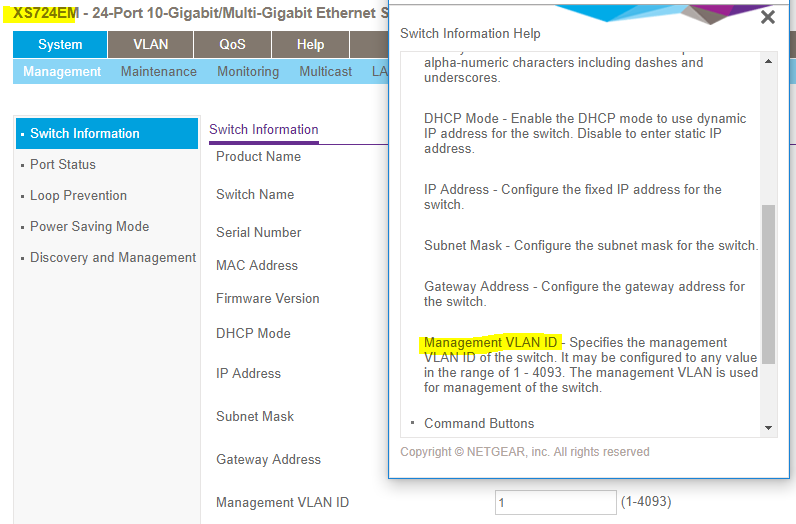

Plase consider to push in at least a control to set (and limit) the manaement VLAN to a defined VLAN on all Smart Managed Plus and Smart Managed Pro with the firmware revisions.
Example? The new XS724EM Smart Managed Plus
This does allow certain mitigation by limiting this access to a sinlge 802.1Q VLAN.
Regards,
.Kurt
Thanks for the quick response. This is good to know for future purchases.
