Connect GS728TPP SFP to GS752TX SFP+
As the subject says, I am looking to connect these 2 switches via their SFP and SFP+ ports for uplink. I would like to run 2 cables between them, very short distance, about 6 inches. I realize this would only be at the 1G speed if it is possible. But I would like to retain all 24 ports on the POE switch. If this is possible, what cable should I be purchasing?
Thanks!
So I need one of each of these modules to make these 2 switches connect? What cable would I use between them
You will only need either the AGM731F or AGM732F. You can use any 1Gbps Direct Attach Cable.
If ever your concern has been addressed or resolved, I encourage you to mark the appropriate reply as the “Accepted Solution” so others can be confident in benefiting from the solution. The NETGEAR Community looks forward to hearing from you and being a helpful resource in the future!
Regards,
DaneA
NETGEAR Community Team
3 Replies
Replies have been turned off for this discussion
Welcome to the community! :)

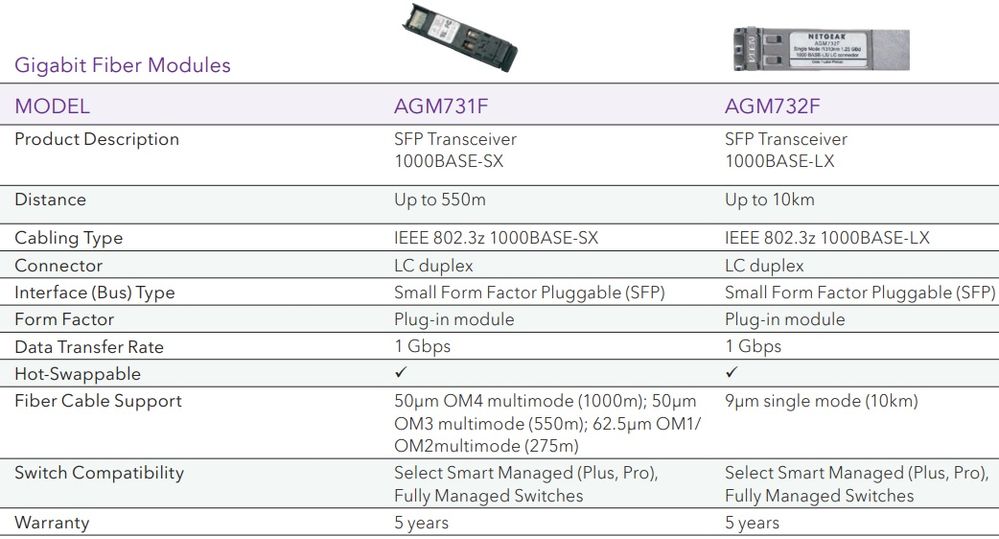

The SFP modules that are compatible to both GS728TPP and GS752TX are the AGM731F and AGM732F. Kindly refer below:
If ever your concern has been addressed or resolved, I encourage you to mark the appropriate reply as the “Accepted Solution” so others can be confident in benefiting from the solution. The NETGEAR Community looks forward to hearing from you and being a helpful resource in the future!
Regards,
DaneA
NETGEAR Community Team
So I need one of each of these modules to make these 2 switches connect? What cable would I use between them?
So I need one of each of these modules to make these 2 switches connect? What cable would I use between them
You will only need either the AGM731F or AGM732F. You can use any 1Gbps Direct Attach Cable.
If ever your concern has been addressed or resolved, I encourage you to mark the appropriate reply as the “Accepted Solution” so others can be confident in benefiting from the solution. The NETGEAR Community looks forward to hearing from you and being a helpful resource in the future!
Regards,
DaneA
NETGEAR Community Team
