How do I configure VLAN with Netgear GS308E and Edge RouterX

Hello,   I am trying to figure out how to configure VLANs on Netgear GS308E to work with Ubiquity Edge Router X. My current setup (as in the diagram) has two access points. AP1 is connected directl...
  • schumaku's avatar
    schumaku
    Jul 22, 2020

    For complex 802.1q VLANs configs use VLAN -> 802.1Q -> Advanced only.



    Add VLAN 10, 20, and 30 to the VLAN config.



    For the uplink port and the AP port, add VLAN 10, 20, and 30 as [T]agged.

DJDJDJDJ's avatar
DJDJDJDJ
Aspirant
Jul 22, 2020

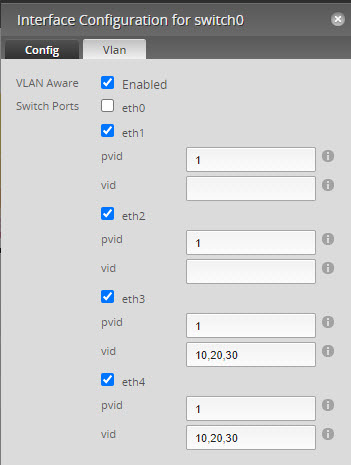

Additional Images

  • DJDJDJDJ's avatar
    DJDJDJDJ
    Aspirant
    Jul 22, 2020

    Additional Images

    • schumaku's avatar
      schumaku
      Guru - Experienced User
      Jul 22, 2020

      For complex 802.1q VLANs configs use VLAN -> 802.1Q -> Advanced only.



      Add VLAN 10, 20, and 30 to the VLAN config.



      For the uplink port and the AP port, add VLAN 10, 20, and 30 as [T]agged.

      • DJDJDJDJ's avatar
        DJDJDJDJ
        Aspirant
        Jul 22, 2020
        schumaku wrote:

        For complex 802.1q VLANs configs use VLAN -> 802.1Q -> Advanced only.



        Add VLAN 10, 20, and 30 to the VLAN config.



        For the uplink port and the AP port, add VLAN 10, 20, and 30 as [T]agged.

        Thank you schumaku . Do I need to configure anything in the "Port PVID" section?
