Is this correct ? - Link aggregation on three switches = jGS524e v2 x3!!
Hi Everyone,

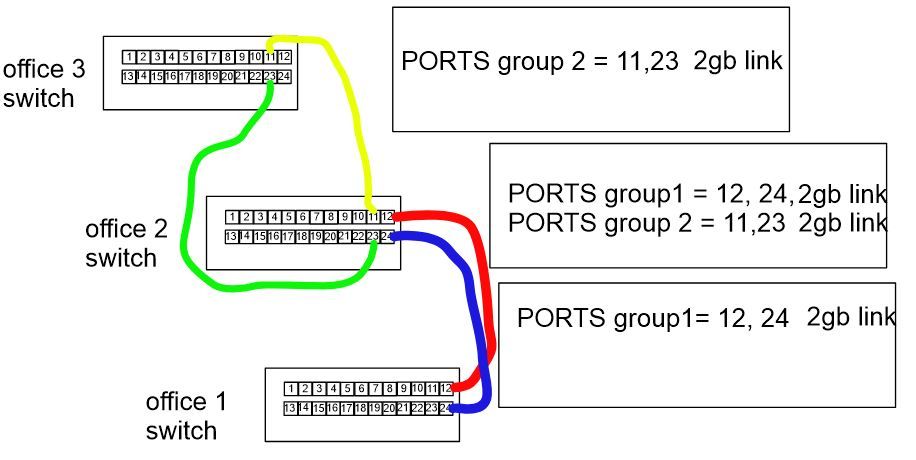

Ive attached a picture of what I need to do between 3 office switches to have a 2gb link between each switch, is this correct?, do I need to setup 2 LAG groups on
office switch 2 ? or 4ports as a LAG group? hope someone can clarify, thanks Andrew
Yes, perfect!
3 Replies
Each LAG connection between two switches must be a dedicated LAG Group, so two groups for each physical network link pair here for example.
- Hi is the diagram correct?
Most importantly switch 2 has two lag groups? One joining switch 1 and another separate lag group to join switch 3?
Please confirm this is correct ?Yes, perfect!
