Forum Discussion
GS108v4 switch
An Installation guide to GE108v4 switch reviews LEDs shining status of individual ports.
Mentioned there is which LED (L / R / both) shoul be on in accordanceg to Mbps amount received on the port.
Advice please which LED should be on when 200 Mbps connected to a port.
Should it be either the left LED be solid green, or both LEDs be solid green?
Thanks for your advice.
3 Replies
- Both, as the port will run at 1 Gbps since 200 Mbps is more than 100.
Vlad1948 wrote:
Advice please which LED should be on when 200 Mbps connected to a port.
Should it be either the left LED be solid green, or both LEDs be solid green?
As microchip8 says, but what connects at 200 Mbps?
Wherever the idea is coming from. These switches can indicate 1 Gb/s, 100 Mb/s, and 10 Mb/s link rates.
Sure, a 10 Mb/s full duplex link does deal with 20 Mb/s, a full duplex 100 Mb/s link can handle a total of 200 Mb/s adding both directions, or 2 Gb/s in both directions on a GbE link. Very academic...

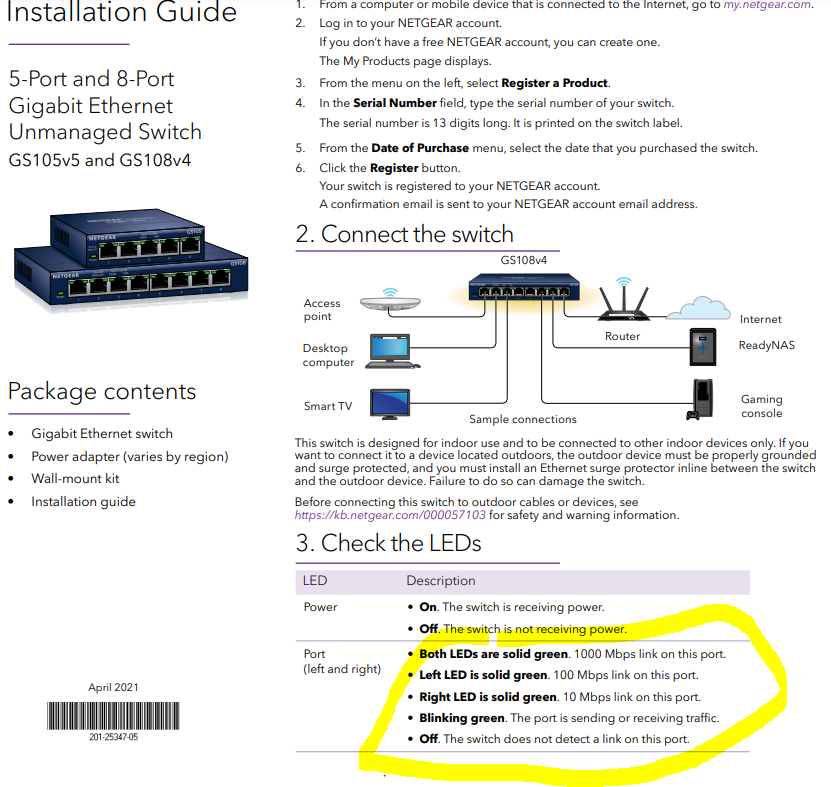

Here some details from the Installation Guide:
