How to find the SKU of unmanaged network switch (Determining EOL)

We are looking at replacing some network switches or at least seeing if they need replaced (EOL) I have found Netgear's EOL list here.  However, the list is confusing with what information we can find on our unmanaged switches, on the back of some switches they might just have the product family name (i.e. GS116) on others it might be that plus the version (i.e. GS108v3).  However on the EOL list it lists the product family and the SKU associated with the product that is EOL but we cannot find the SKU anywhere on the switches nor do we have the boxes that they came with.  We are in North America if that helps as well.



Does anyone know how we could determine if these products are EOL?

GS108

FS108

GS116

GS116E

GS316

JGS524E

JGS524

  • A good starting point it to heck the correct product designation, commonly printed on the product label.



    Not sure what you understand as EOL .... in Netgear terms, EOL are devices no longer orderable from the factory. Is not an indication you have to stop the usage of these products - especially not for unmanaged switches.



    A little bit different might be the Plus switches like the GS116E or the JGS524E - technically built on an unmanaged core, but combined with a simple uC allowing both NSDP and simple WebUI config controls.



    GS116E
    GS116E-200NAS North America and Latin America
    GS116E-200PES Europe
    GS116E-200AUS Australia
    GS116E-200UKS United Kingdom
    GS116E-200JPS Japan
    GS116E-200PRS China



    JGS524E
    JGS524E-200NAS North America and Latin America
    JGS524E-200EUS Europe
    JGS524E-200AJS Asia Pacific/Japan
    JGS524E-200PRS China



    ...where the -200 indicates the version and the -nnnXXX indicates the model or packaging market. So these examples would be GS116Ev2 or JGS524Ev2 in another notation.



    Nothing that forbids using these products as long as these last - but for a risk scheme, you need to pave your own way.



    Cumbersome, Netgear has still not managed (for years!) not to provide comprehensive product life cycle data, even for the Netgear Business products.



    What we expect from Netgear is this:

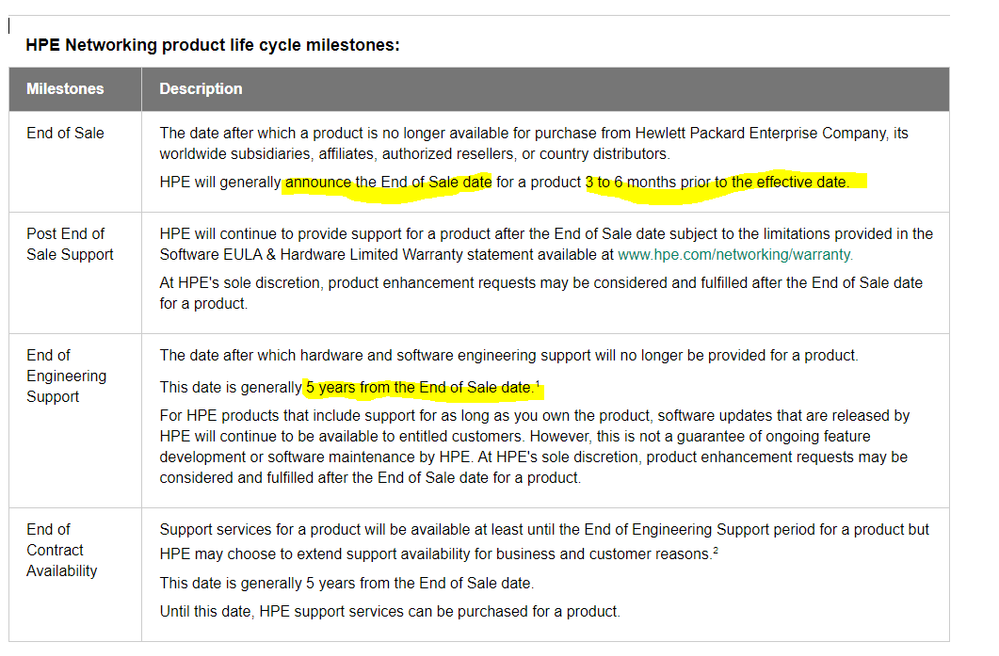

    For example HPE

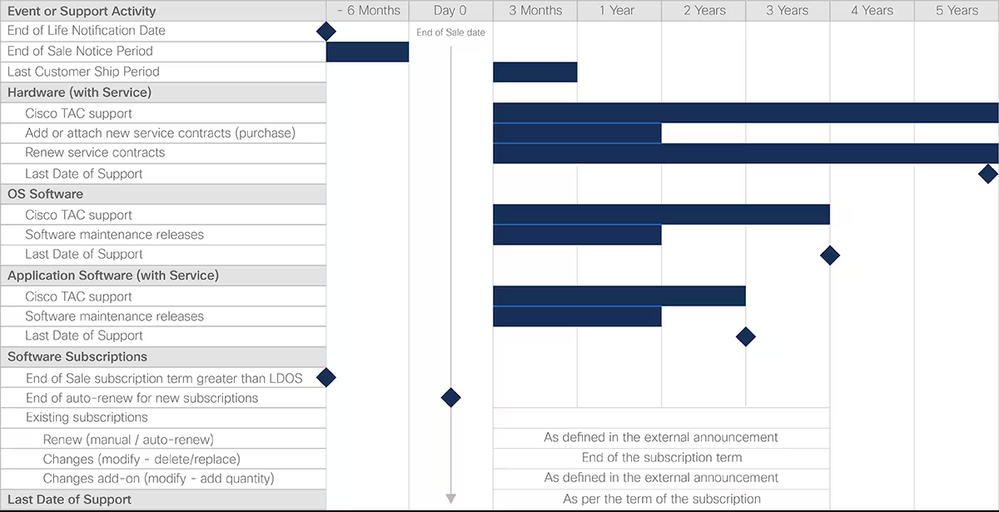

    For example Cisco







2 Replies

  • Just to add a little more info here are the version of each product we are trying to find the SKU for:



    GS108v3

    GS116v2

    GS116E

    GS316

    JGS524E

    JGS524v2

    FS108v2

    • schumaku's avatar
      schumaku
      Guru - Experienced User

      A good starting point it to heck the correct product designation, commonly printed on the product label.



      Not sure what you understand as EOL .... in Netgear terms, EOL are devices no longer orderable from the factory. Is not an indication you have to stop the usage of these products - especially not for unmanaged switches.



      A little bit different might be the Plus switches like the GS116E or the JGS524E - technically built on an unmanaged core, but combined with a simple uC allowing both NSDP and simple WebUI config controls.



      GS116E
      GS116E-200NAS North America and Latin America
      GS116E-200PES Europe
      GS116E-200AUS Australia
      GS116E-200UKS United Kingdom
      GS116E-200JPS Japan
      GS116E-200PRS China



      JGS524E
      JGS524E-200NAS North America and Latin America
      JGS524E-200EUS Europe
      JGS524E-200AJS Asia Pacific/Japan
      JGS524E-200PRS China



      ...where the -200 indicates the version and the -nnnXXX indicates the model or packaging market. So these examples would be GS116Ev2 or JGS524Ev2 in another notation.



      Nothing that forbids using these products as long as these last - but for a risk scheme, you need to pave your own way.



      Cumbersome, Netgear has still not managed (for years!) not to provide comprehensive product life cycle data, even for the Netgear Business products.



      What we expect from Netgear is this:



      For example HPE





      For example Cisco
