MS108EUP Switch and WAX630E https certificates
Hello guys,
I am having some issues setting up https ssl certificates for these new devices I bought, everything else is working perfectly.
About the MS108EUP switch, whatever PEM i try to create i am always getting the invalid format error, no matter what i try. Even if i let the switch generate a certificate and then upload it manually back, i get an error too. I would like to use my self signed one with my CA.
For the AP WAX630E is it even possible to do https? I don't see any option for it, i just see an FQDN setting which btw doesn't even accept my LAN custom domain.
Thanks for the help
5 Replies
ugale11 wrote:
About the MS108EUP switch, whatever PEM i try to create i am always getting the invalid format error, no matter what i try. Even if i let the switch generate a certificate and then upload it manually back, i get an error too. I would like to use my self signed one with my CA.

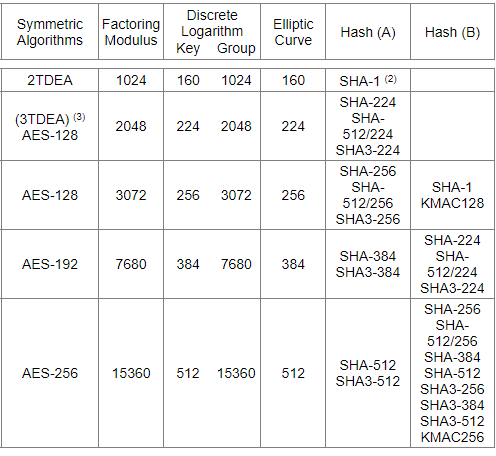

Try not going beyond of SHA 256 and RSA 2048 to start with on the switches.
ugale11 wrote:
For the AP WAX630E is it even possible to do https? I don't see any option for it, i just see an FQDN setting which btw doesn't even accept my LAN custom domain.
Just with the default self-sighed certificates I fear. Netgear has apparently not implemented anything useful on the WAX6xx, neither the ability to neither create CSRs nor the ability to generate self-signed certificates nor the ability to import PKI signed certificates. Sigh 8-(
Then again, for the (in my opinion strange, like for a Web host) FQDN input field [the AP must be accessed using exactly this domain as configured, Netgear appears to see this as kind of an additional security [by obscurity] feature! But then, this appears to be limited somehow, we can't just "randomly" define FQDNs, and without random selected domains. Admit, I have not seen exact rules or documentation what is accepted there. Will try to challenge Netgear again on these subjects 8-)
ugale11 wrote:Hello guys,
I am having some issues setting up https ssl certificates for these new devices I bought, everything else is working perfectly.
About the MS108EUP switch, whatever PEM i try to create i am always getting the invalid format error, no matter what i try. Even if i let the switch generate a certificate and then upload it manually back, i get an error too. I would like to use my self signed one with my CA.
For the AP WAX630E is it even possible to do https? I don't see any option for it, i just see an FQDN setting which btw doesn't even accept my LAN custom domain https://9apps.ooo/ .
Thanks for the help
I got this,...
ugale11 wrote:
ugale11 wrote:
which btw doesn't even accept my LAN custom domain 9apps.ooo .
I got this,...
Ok, excellent discovery, thank you!
Multiple things are coming together here:
- Netgear does apparently not accept perfectly valid Internet top-level domains like your .ooo
- None of the WAX6xx does accept your valid domain currently, clearly a non-allowed restriction, to be addressed by Netgear. I'll push this to Netgear on a different channel, but I'll allow tag RaghuHR here.
- Not a factor here, however this FQDN is the one intended to reach the WAX6xx admin Web UI - it might be cumbersome (not forbidden however) not using a host level domain for each host to be addressed, like wax630a.9apps.ooo for example
Regards,
-Kurt
MS108EUP switch: Check certificate format requirements and integrity. Contact manufacturer support if issues persist. AP WAX630E: Confirm HTTPS support and troubleshoot FQDN setting. Contact manufacturer support for assistance.
nomijack wrote:
MS108EUP switch: Check certificate format requirements and integrity. Contact manufacturer support if issues persist. AP WAX630E: Confirm HTTPS support and troubleshoot FQDN setting. Contact manufacturer support for assistance.
I admit the Netgear documentation is useless in this aspect - simply because it's missing what is supported, and what can be uploaded.
For about a decade, I'm challenging Netgear to change, and implement a proper https environment. Would love to help you as the Netgear customer, admit, based on what you supplied it's as impossible as it is in the docs. Said that: Very unlikely you can throw -anything- and expect it to load and enable (https hopefully). JohnHenkel
Keep in mind the community is not Netgear Support ...
All I can tell you neither the MS108EUP nor the WAX630E are on the EoL list, otherwise we would be old Netgear stopped any updates - the only slightly meaningful help (along with the hint to contact Netgear Support) we get from the Netgear Community Moderators here. Feels like I'm wasting my time here, sorry nomijack
